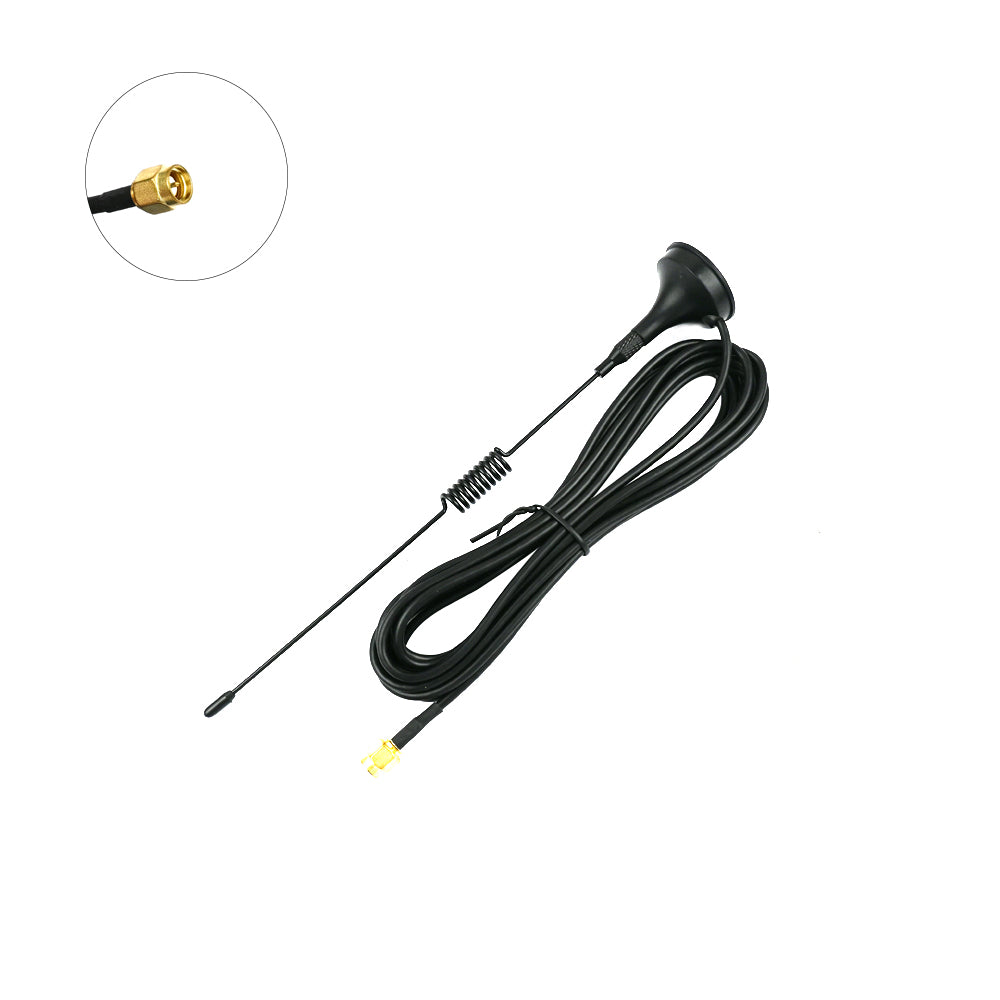

It's a GSM magnetic base antenna with 3Dbi gain and SMA male connector. Its frequency range lies between 900-1800Mhz and its bandwidth is 70/170. This is a vertical polarization types magnetic base antenna whose maximum input power is 50W and input impedance is 50ohm. This antenna is commonly used in GSM repeater, GSM Module, GSM modems & GSM sensor.
Features
- Magnetic base type
- Low VSWR
- Light Weight
- Easy to Install
- Boosts Data Downloading Speed
Specification
| Product type | GSM magnetic base Antenna |
| Gain | 3Dbi |
| Frequency range | 900-1800Mhz |
| Bandwidth | 70/170Mhz |
| VSWR | ‚¬°¤2.0 |
| Polarization | Vertical |
| Connector type | SMA male ,ID- 4.3mm |
| Dimension | Antenna length - 170mm , Wire- 3meter |
