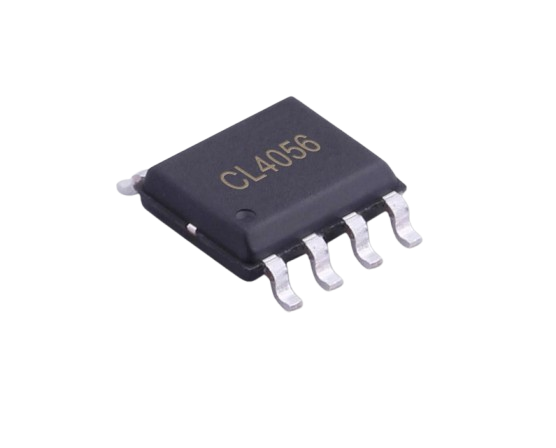

CL4056 Li-Ion Battery Charger IC ESOP-8: The CL4056 is a high-performance linear battery charger designed for single-cell lithium-ion (Li-ion) batteries. It offers a simple and cost-effective solution for safely charging Li-ion batteries from a USB port or wall adapter. The IC includes integrated current limiting and thermal regulation features, making it highly reliable and efficient for battery charging
Features
Applications
:- Portable electronics (e.g., smartphones, tablets, MP3 players)
- USB-powered devices
- Power banks and battery-powered gadgets
- Wireless controllers and toys
- Li-ion/Li-polymer battery charging solutions
Specification
:| Parameter | Value |
|---|---|
| Input Voltage Range | 4.25V to 8V |
| Charge Voltage | 4.2V (±1%) |
| Charge Current | Adjustable, up to 1000mA |
| Termination Current | 10% of the programmed charge current |
| Battery Type | Single-cell lithium-ion (Li-ion) or lithium-polymer (LiPo) |
| Package | SOT-23-5 |
| Operating Temperature | -40°C to 85°C |
| Protection Features | Overvoltage, Overcurrent, Thermal Shutdown |
| Status Indicators | Charging (CHRG), Full Charge (DONE) |
