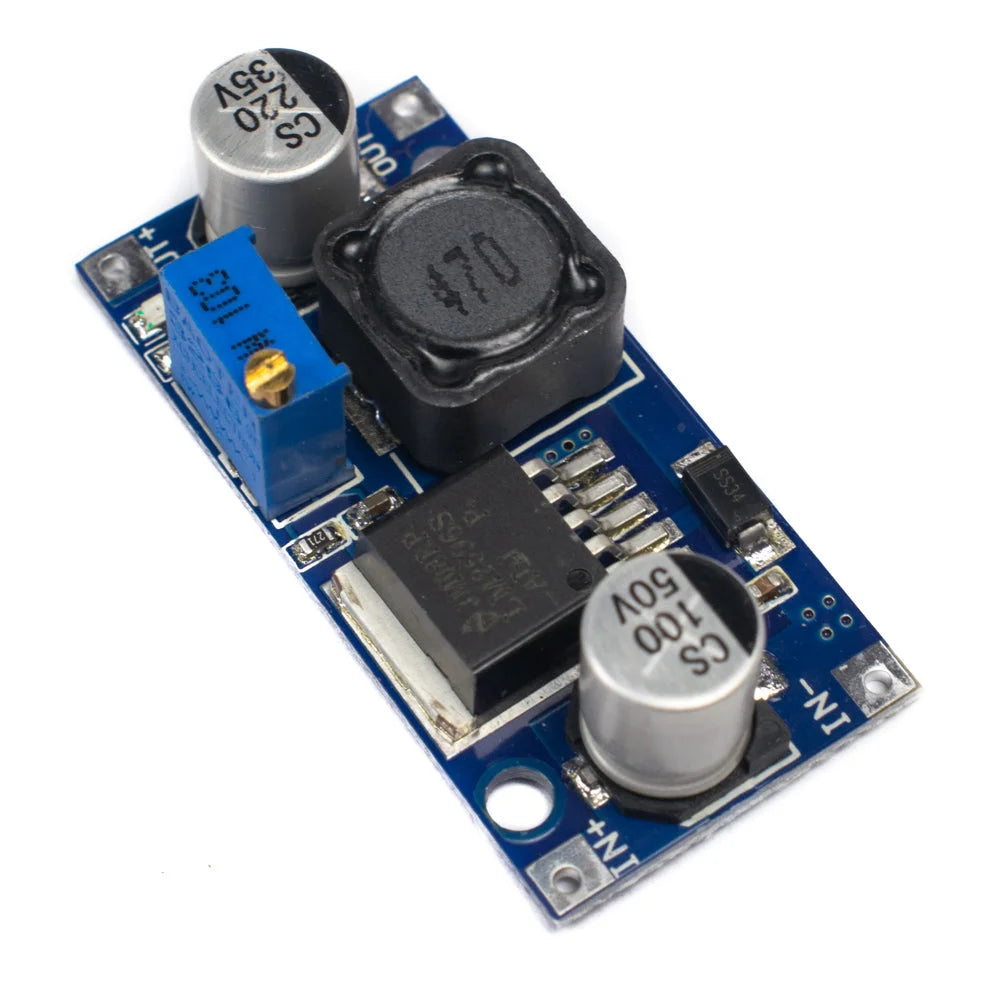

This is a high-efficiency LM2596 DC-DC step-down converter with a high-precision potentiometer that can drive a load of up to 3A. Please use a heat sink if the output current is larger than 2.5A (or the output power is greater than 10W). As the LM2596 converter is a switch-mode power supply, it has far better efficiency than traditional three-terminal linear regulators, especially at higher input voltages. Because the LM2596 operates at a switching frequency of 150 kHz, it is possible to use smaller filter components than with lower frequency switching regulators.
Features
- Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short Circuit Protection: Current limiting, since the recovery
- Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
- Full load temperature rise: 40
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 2.5%
- Dynamic Response speed: 5% 200uS
Specification
| Input Voltage | 3.2V~35V DC |
| Output Voltage | 1.23V~30V DC |
| Maximum Output Current | 3A |
| Maximum Conversion Efficiency | 92% |
| Output Ripple | <30 mV |
| Switching Frequency | 150kHz |
| Working Temperature | -45°C to 85°C |
