Package Information:
- Package Size: Approx. 17 x 11 x 5cm / 6.7 x 4.3 x 2in
- Package Weight: Approx. 94g / 3.3oz

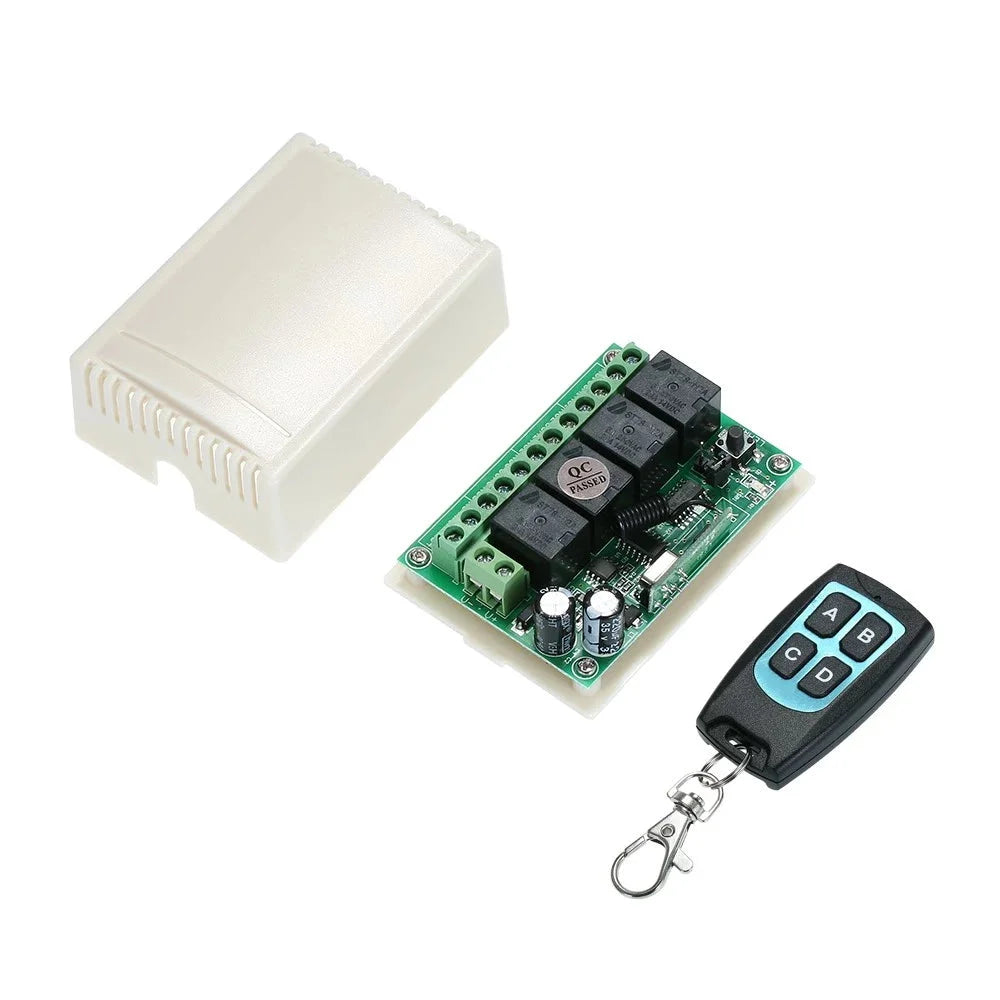

Receiver:
- Channels: 4
- Input Power: DC12V
- Standby Current: ‚¬°¤6mA
- Output Current: ‚¬°¤10A
- RF Frequency: 433MHz
- Output Power: DC/AC Optional
- RF working mode: superheterodyne reception
- Coded System: Learning Code (1527 Chip) ; Fixed Code
- Receive sensitivity: ‚¬°¥ -105dbm
- Decoding mode: MCU software decoding
- Remote control storage: up to 16 PCS
- Working mode: Momentary, Toggle, Latching
- Wiring type: fixed terminal
- Output Terminal: NO , NC , COM
- Receiver Board Size: Approx. 7.5 x 5.4 x 2.1cm / (3 x 2.1 x 0.83€š¬�)
- Fuse Box Size: Approx. 7.5 x 5.4 x 2.7cm / (3 x 2.1 x 1.1€š¬�)
Remote Control:
- Frequency: 433MHz
- Range: 50m (open area)
- Battery: 2*CR2016 3V (included)
- Working Current: 10mA
- Shock Resistance: 270K/330K
- Quantity: 1PCS
- Remote Control Size(Each): 5.8*3.2*1.2cm
