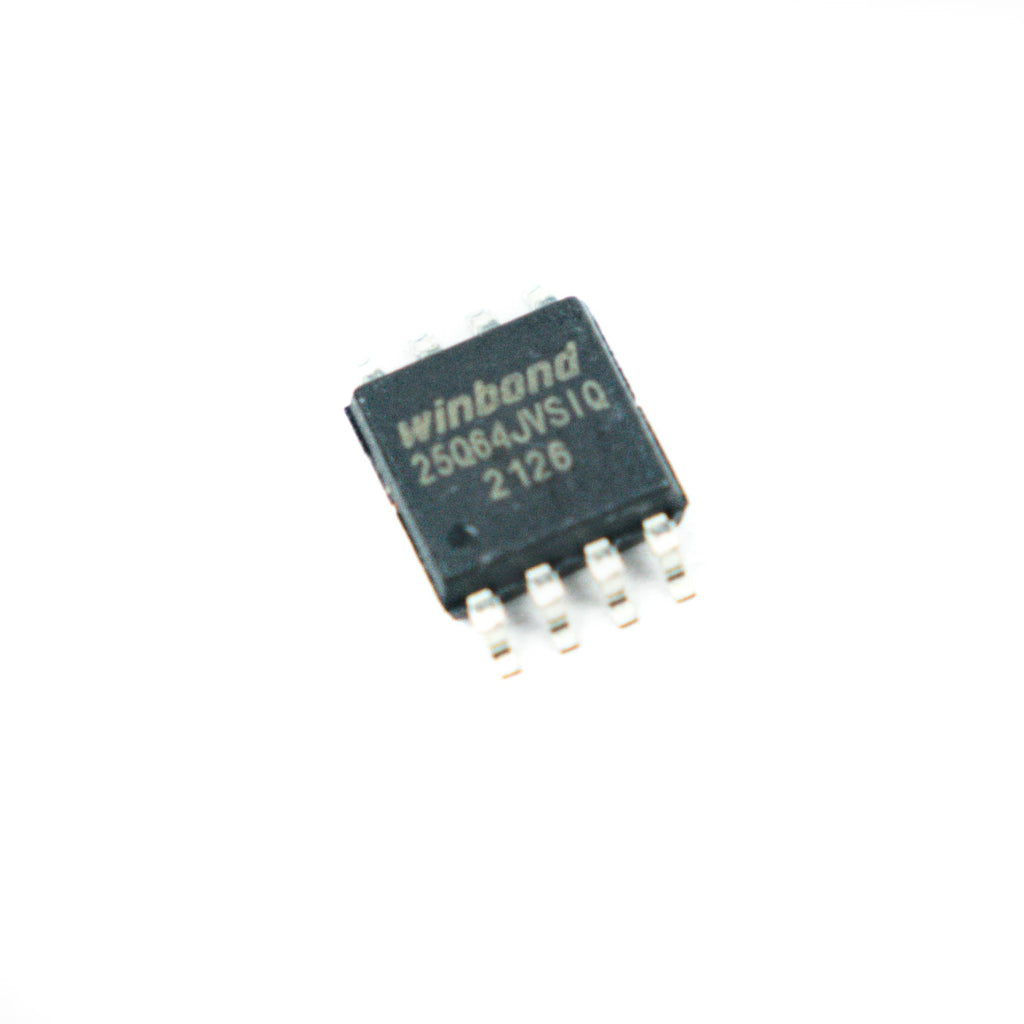

The 25Q64 (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q64 offers flexibility and performance well beyond ordinary Serial Flash devices. The device operates on a single 1.65V to 1.95V power supply with current consumption as low as 4mA active and 1µA for power-down. The 25Q64 array is organized into 32,768 programmable pages of 256-bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase) or the entire chip (chip erase). The W25Q64 has 4,096 erasable sectors and 256 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in
Features
Applications
that require data and parameter storage.Features
- 50MB/S continuous data transfer rate
- More than 100,000 erase/program cycles
- More than 20-year data retention
- Low Power, Wide Temperature Range
- Single 2.7 to 3.6V supply
- 4mA active current, <1μA Power-down
- -40°C to +85°C operating Temperature
- Flexible Architecture with 4KB sectors
- Advanced Security Features
- Software and Hardware Write-Protect
- Space Efficient Packaging
Specification
| Model | 25Q64 |
| Memory type |
Flash |
| Memory size | 64 M- bit |
| Operating voltage | 2.7 V to 3.6 V |
| Operating Temperature | -40°C to +85°C |
| Packaging type | SMD |
| Data transfer speed | Upto 50 MB/s |
|
Current consumption - Active current Power down |
4mA <1μA |
