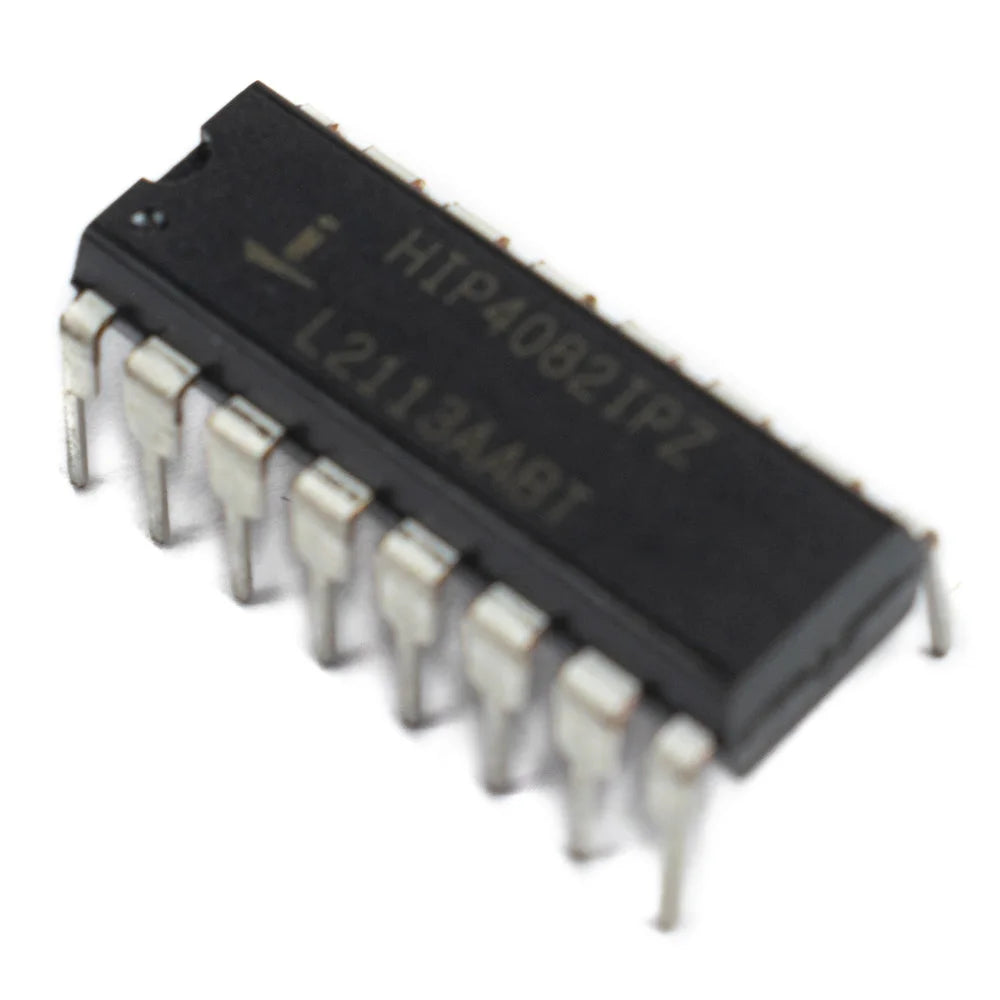

The HIP4082 is a medium frequency, medium voltage H-Bridge N-Channel MOSFET driver IC, available in 16 lead plastic SOIC (N) and DIP-packages. Specifically targeted for PWM motor control and UPS
Features
- Independently Drives 4 N-Channel FET in Half-Bridge or Full Bridge Configurations
- Bootstrap Supply Max Voltage to 95VDC
- Drives 1000pF Load in Free Air at 50°C with Rise and Fall Times of Typically 15ns
- User-Programmable Dead Time (0.1 to 4.5μs)
- DIS (Disable) Overrides Input Control and Refreshes
- Bootstrap Capacitor when Pulled Low
- Input Logic Thresholds Compatible with 5V to 15V Logic Levels
- Shoot-Through Protection
- Undervoltage Protection
- Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
- UPS Systems
- DC Motor Controls
- Full Bridge Power Supplies
- Switching Power Amplifiers
- Noise Cancellation Systems
- Battery-Powered Vehicles
Specification
| Model | HIP4082 |
| Brand | Intersil |
| Package | DIP 16 |
| Supply voltage | 8.5V to 15V |
| Phase Slew Rate | 20V/ns |
| Storage Temperature Range | -65°C~150°C |
