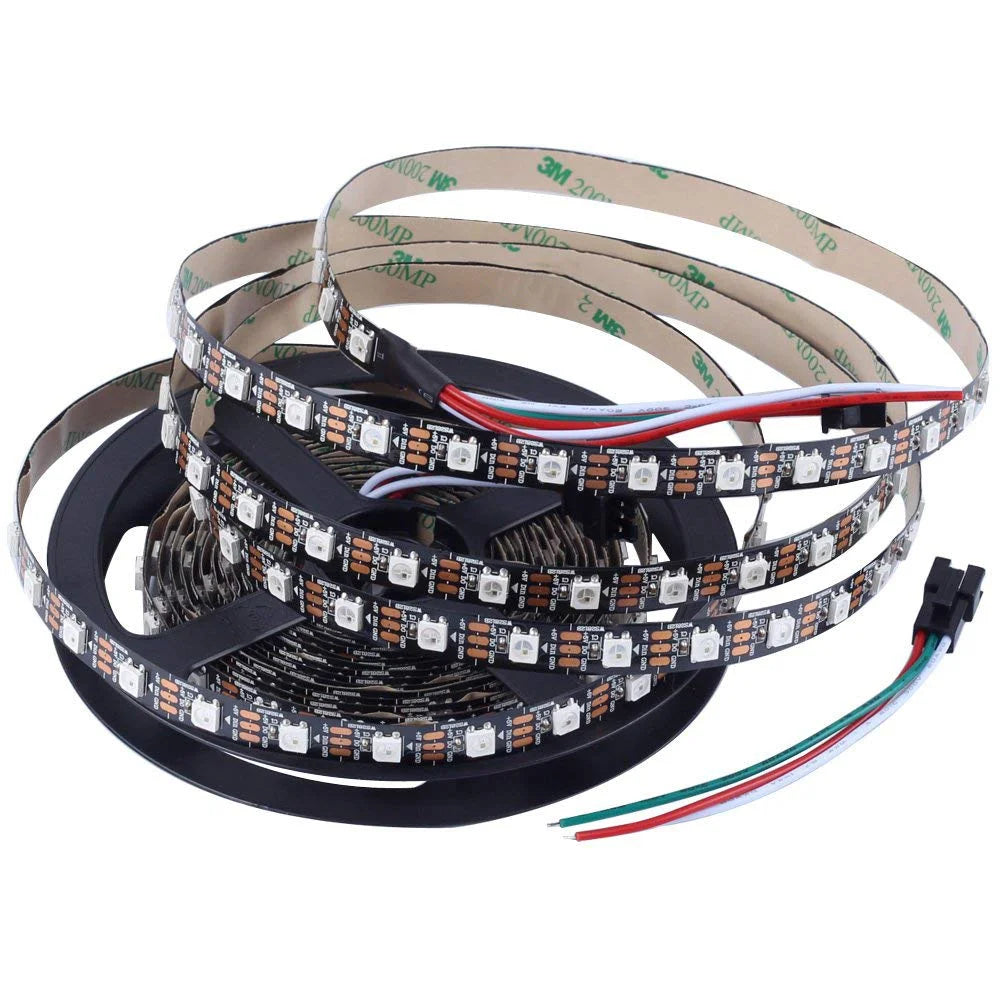

This is WS2812B Addressable LED Strip DC 5V (Non-Waterproof) 60 LEDs/m. The installation surface must be smooth, clean, and dry. The part of LED components cannot be fixed on the surface of the sharp edges. The strip should not be collided or crushed. The strip can be cut following the cutting lines 24-bit colour control (8-bit PWM per channel); 16.8 million colours per pixel. The one-wire digital control interface with each RGB LED draws approximately 50 mA at 5 V with red, green, and blue at full brightness.
Specification
| LED Type | WS2812B (Intelligent RGB LED) |
| LED Density | 60 LEDs per meter |
| Voltage | 5V DC |
| Power Consumption | ~18W per meter (full brightness, white) |
| Current Draw | ~3.6A per meter (full white) |
| Colour | RGB (16.8 million colors) |
| IC Type | Built-in WS2812B chip |
| Control Protocol | One-wire (single data line) |
| Pixel Control | Individually addressable |
| Beam Angle | 120 degrees |
| Waterproof Rating | IP30 (non-waterproof), IP65 (coated), IP67 (encased) |
| Cutting Segment | Every LED (1 LED) |
| Operating Temperature | -25°C to 60°C |
| Lifetime | ~50,000 hours |
| Strip Width | ~10mm |
| PCB Color | Black |
| Communication Speed | 800 Kbps |
