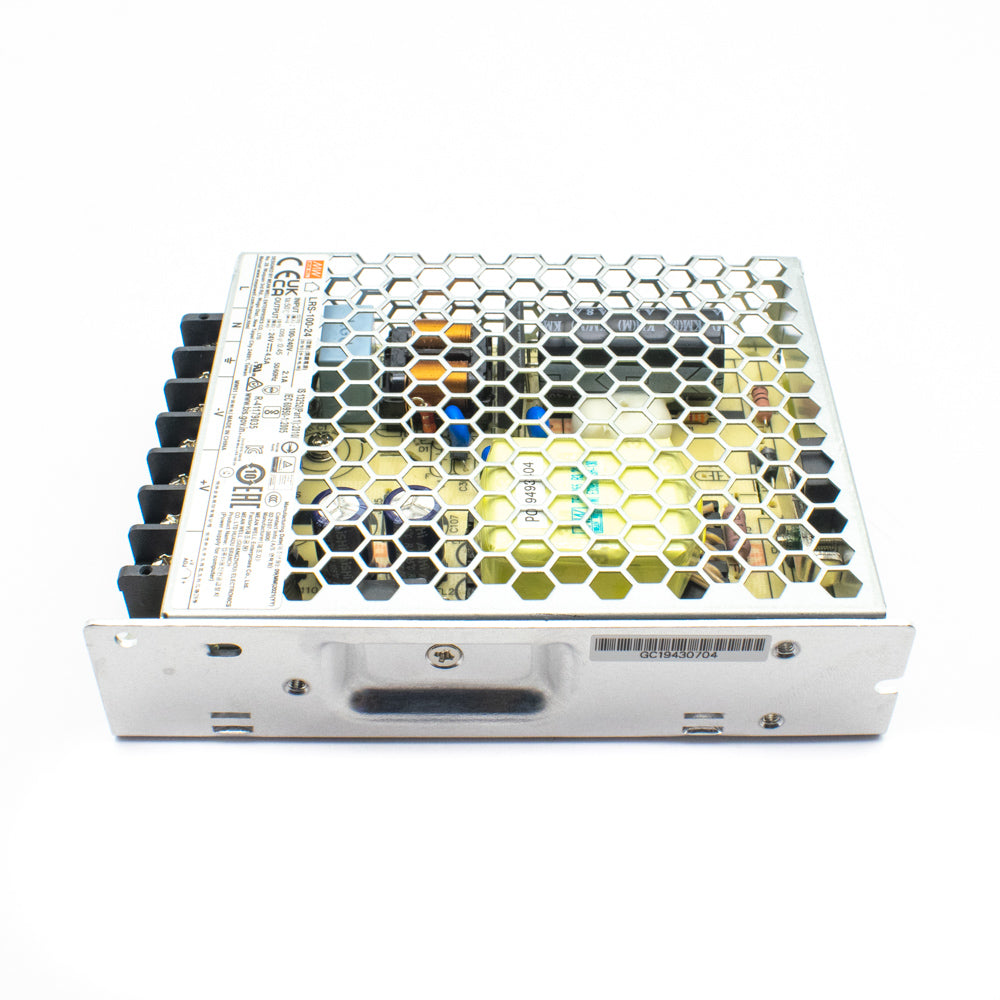

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. The AC input is 85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 24V. The SMPS has high efficiency up to 90%, the design is of metallic mesh case which enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.3W), which allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-100 series can be used for many purposes with the best performance from it.
Feature:
- Universal AC input/ Full range
- Protections from Short circuit, Overload and Overvoltage
- Cooling by free air convection
- It has a LED for indicating power on.
- 100% full load burn-in test
- Using 105°C long life electrolytic capacitors for better performance
- Withstand 300VAC surge input for 5-second
- Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
- High operating temperature up to 70°C
- Miniature size and 1U low profile
- Withstand 5G vibration test
- No-load power consumption<0.3W
- High efficiency, long life and high-reliability
Applications
:- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
- Household appliances
Specification
| Model | LRS-100-24 |
| Brand | Meanwell |
| DC Voltage | 24V |
| Rated Current | 4.5A |
| Rated Power | 108W |
| Ripple & Noise | 150mVp-p |
| Voltage Adj. Range | 21.6V~28.8V |
| Voltage Tolerance | 1% |
| Line Regulation | 0.5% |
| Load Regulation | 0.5% |
| Setup, Rise Time |
500ms, 30ms/230VAC 500ms,30ms/115VAC at full load |
| Hold Up Time | 55ms/230VAC 10ms/115VAC at full load |
| Voltage Range |
85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) |
| Frequency Range |
47~63Hz |
| Efficiency |
90% |
| AC Current | 1.9A/115VAC 1.2A/230VAC
|
| Over Load | 110~150% rated output power Hiccup mode recovers automatically after the fault condition is removed. |
| Over Voltage |
28.8V~33.6V |
| Working Temperature |
-30°C to 70°C |
| Working Humidity |
20~90% |
| Size |
129*97*30mm (L*W*H) |
