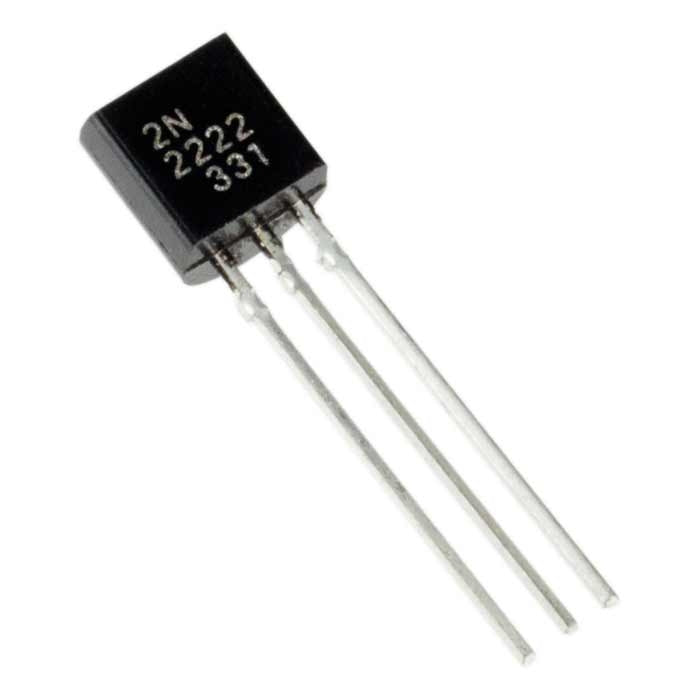

The 2N2222 is an NPN bipolar junction transistor (BJT) in a TO-92 package, widely used in low-power switching and amplification applications. It is known for its reliability, versatility, and ease of use in electronic circuits.
Features
- NPN BJT suitable for general-purpose switching and amplification
- TO-92 package for through-hole PCB mounting
- High switching speed for digital and analog applications
- Collector current up to 800mA, suitable for moderate loads
- Maximum voltage rating of 40V
Applications
- Signal amplification in low-power circuits
- Switching applications for controlling relays, LEDs, and small motors
- Oscillators and signal processing in RF and communication circuits
- Microcontroller interfacing to drive higher loads
Specification
| Parameter | Value |
|---|---|
| Transistor Type | NPN |
| Package | TO-92 |
| Collector-Emitter Voltage (Vce) | 40V |
| Collector-Base Voltage (Vcb) | 75V |
| Emitter-Base Voltage (Veb) | 6V |
| Continuous Collector Current (Ic) | 800mA |
| Power Dissipation (Pd) | 500mW |
| Transition Frequency (ft) | 250MHz (typical) |
| Operating Temperature | -55°C to +150°C |
