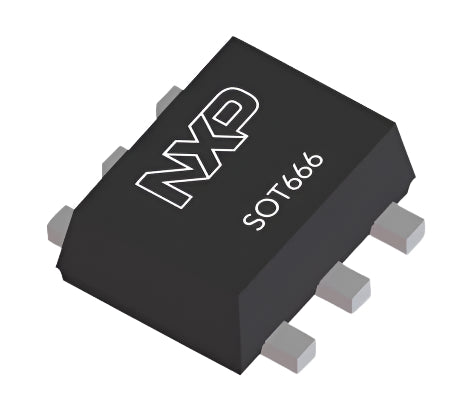

The 2N7002PV is a dual N-channel enhancement mode Field-Effect Transistor (FET) utilizing Trench MOSFET technology, packaged in an ultra-small SOT666 Surface-Mounted Device (SMD) plastic package. This configuration is particularly suitable for applications requiring efficient switching and space-saving designs.
Features
- Logic-Level Compatibility: It operates directly with standard logic levels, simplifying interfacing with microcontrollers and other digital circuits.
- Very Fast Switching: Designed for rapid switching applications, enhancing performance in high-speed circuits.
- Trench MOSFET Technology: Provides low on-state resistance and high efficiency, contributing to reduced power loss.
Applications
- Relay Driver: Suitable for driving relays in various control systems.
- High-Speed Line Driver: Ideal for transmitting signals over long distances with minimal delay.
- Low-Side Load Switch: This is Effective in switching ground-connected loads in power management systems.
- Switching Circuits: This is Applicable in general-purpose switching applications requiring compact and efficient components.
Specification
| Parameter | Value |
|---|---|
| Drain-Source Voltage (V_DS) | 60 V |
| Gate-Source Voltage (V_GS) | ±20 V |
| Continuous Drain Current (I_D) | 350 mA (at V_GS = 10 V, T_amb = 25°C) |
| Peak Drain Current (I_DM) | 1.2 A (pulsed, t_p ≤ 10 µs) |
| Drain-Source On-State Resistance (R_DS(on)) | 2.5 Ω (typical at V_GS = 10 V, I_D = 500 mA) |
| Package | SOT666 |
