Features
：- Molded Plastic Casing
- Low forward voltage drop
- Glass Passivated to reduce leakage current
- High surge current capability, hence reliable
Applications
:- AC-DC Rectification in Circuits, Laboratories, etc.
- Ideal for Printed Circuit Boards
- Power Supply Circuits
- Used to detect the amplitude of modulated radio signal.
For more information, refer to KBU1010 Datasheet
Specification

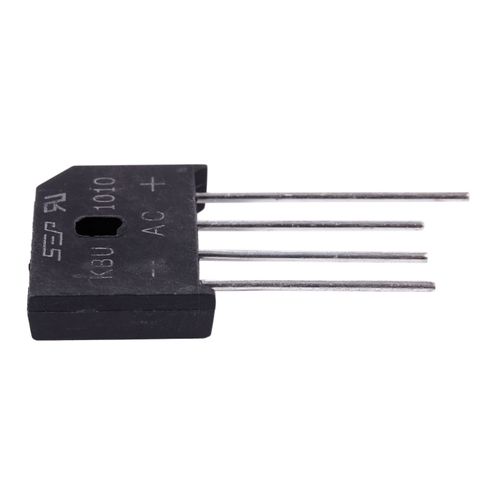

| Model | KBU1010 |
| Average Forward Current | 15A |
| Rectified Current | 3.2A |
| Peak Forward Surge Current | 240A |
| Max. Recurrent Peak Reverse Voltage | 1000V |
| Max. RMS Voltage | 700V |
| Max. DC Blocking Voltage | 1000V |
| Max. Forward Voltage Drop Per Element | 1.05V |
| Operating Temperature | -55°C~150°C |
| Storage Temperature | -55°C~150°C |
| Package | Bridge Diode |
