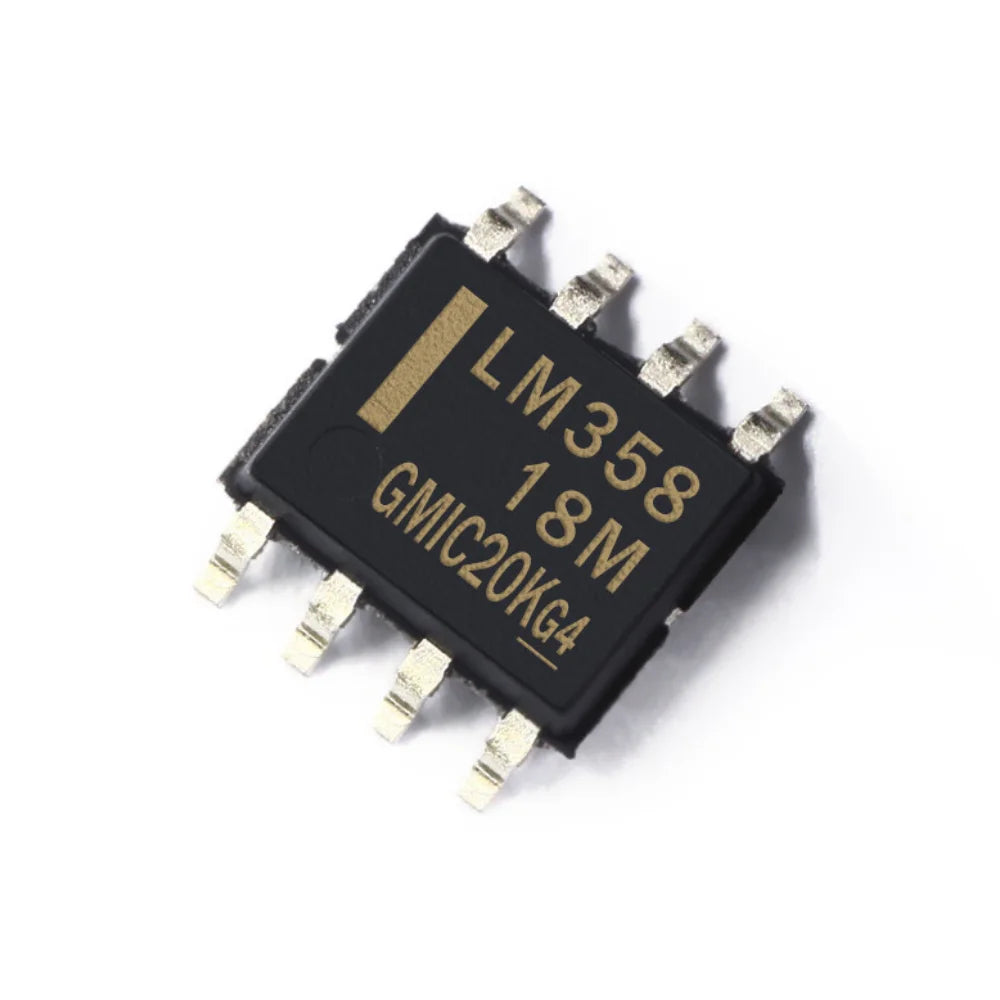

The LM358 is a dual op-amp IC that integrates two op-amps that are powered by a single power supply. It is one half of the LM324 Quad op-amp, which contains four op-amps with a shared power supply. The differential input voltage range can be the same as the power supply voltage range. The default input offset voltage is very low, measuring only 2mV. The typical supply current is 500uA and has a maximum current of 700uA regardless of the supply voltage range. The operating temperature ranges from 0 C to 70 C at ambient, with a maximum junction temperature of 150 C.
PINOUT
|
Pin Number |
Pin Name |
Description |
|
1 |
OUTPUT1 |
Output of Op-Amp 1 |
|
2 |
INPUT1- |
Inverting Input of Op-Amp 1 |
|
3 |
INPUT1+ |
Non-Inverting Input of Op-Amp 1 |
|
4 |
VEE, GND |
Ground or Negative Supply Voltage |
|
5 |
INPUT2+ |
Non-Inverting Input of Op-Amp 2 |
|
6 |
INPUT2- |
Inverting Input of Op-Amp 2 |
|
7 |
OUTPUT2 |
Output of Op-Amp 2 |
|
8 |
VCC |
Positive Supply Voltage |
Features
- Internally frequency compensated for unity gain
- Large dc voltage gain: 100 dB
- Wide bandwidth (unity gain): 1 MHz (temperature compensated)
- Input common-mode voltage range includes ground
- Differential input voltage range equal to the power supply voltage
- Large output voltage swing
Specification
|
Supply Voltage |
32V |
|
Differential Input Voltage |
32V |
|
Input Voltage |
ˆ‚¬„¢0.3V to +32V |
|
Operating Temperature Range |
0˚C to +70˚C |
|
Lead Temperature DIP |
260˚C |
|
Dimensions |
6mm x 5mm x 1.5mm |
