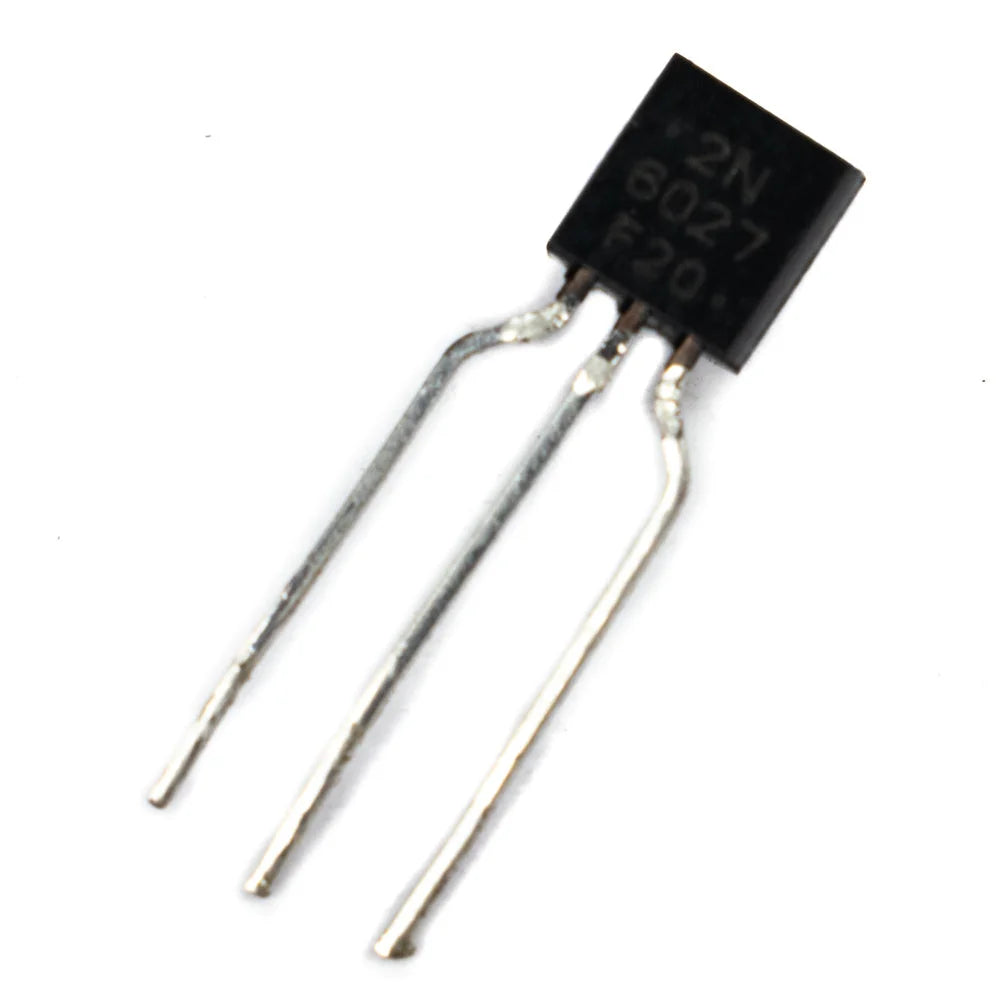

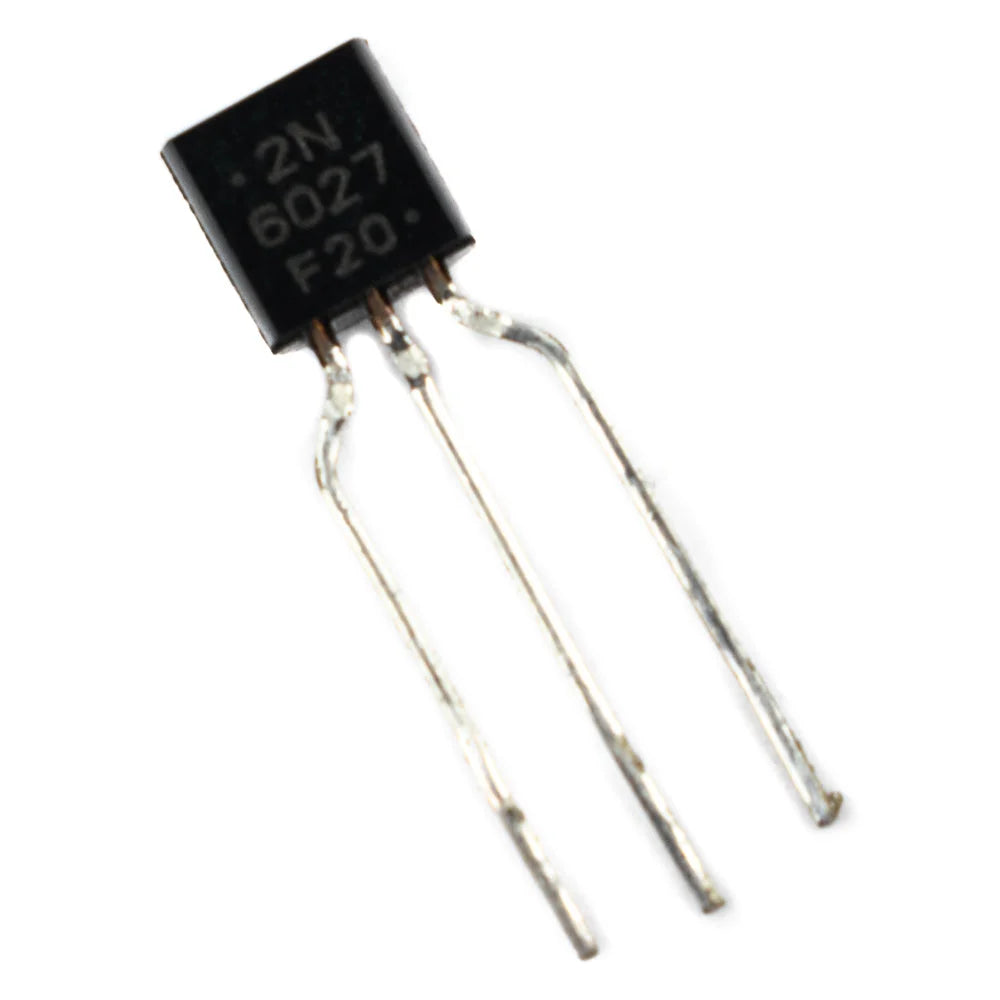

2N6027 Programmable Unijunction Transistor 40V 300mW is designed to enable the engineer to €š¬œprogram€š¬€ž¢€š¬€ž¢ unijunction characteristics such as RBB, η, IV, and IP by merely selecting two resistor values. The
Features
- Programmable- RBB, η, IV and IP
- Low On-State Voltage -1.5 Volts Maximum @ IF = 50 mA
- Low Gate to Anode Leakage Current -10 nA Maximum
- High Peak Output Voltage -11 Volts Typical
- Low Offset Voltage - 0.35 Volt Typical (RG = 10 k ohms)
Applications
due to the availability of an anode gate. Supplied in an inexpensive TO€š¬‚¬œ92 plastic package for high€š¬‚¬œvolume requirements, this package is readily adaptable for use in automatic insertion equipment.Features
- Programmable- RBB, η, IV and IP
- Low On-State Voltage -1.5 Volts Maximum @ IF = 50 mA
- Low Gate to Anode Leakage Current -10 nA Maximum
- High Peak Output Voltage -11 Volts Typical
- Low Offset Voltage - 0.35 Volt Typical (RG = 10 k ohms)
Specification
| Model | 2N6027 |
| Brand | ON Semiconductor |
| Gate to Cathode Forward Voltage | 40V |
| Gate to Cathode Reverse Voltage | 5V |
| Gate to Anode Reverse Voltage | 40V |
| Anode to Cathode Voltage | 40V |
| Offset Voltage | 1.6V |
| DC Anode Forward Current | 150mA |
| DC Gate Current | 50mA |
| Non-Repetitive Peak Forward Current | 5A |
| Operating Temperature | -50°~100°C |
| Power dissipation | 300mW |
