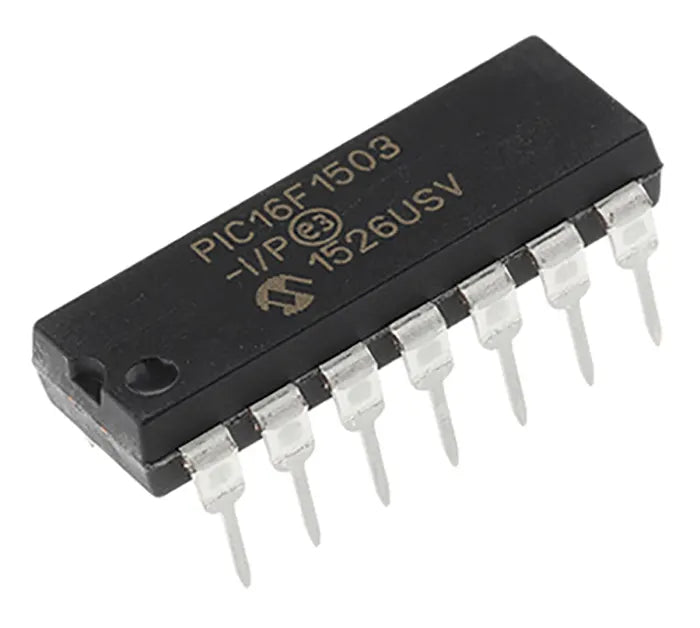

The PIC16F1503-I/P microcontroller is designed for applications requiring reliable performance and a balance of analog and digital capabilities. Packaged in a compact DIP-14 form, it is ideal for prototyping and low-power designs.
Features
:- Configurable Logic Cell (CLC) for custom logic implementation.
- Enhanced PWM modules for motor control and LED dimming.
- One 8-bit timer.
- Two 16-bit timers.
Applications
- LED lighting and dimming systems.
- Motor control for industrial or consumer devices.
- Sensor interfacing and data acquisition systems.
- Home automation and IoT solutions.
- Prototyping and educational projects.
Specification
| Parameter | Value |
|---|---|
| Core | 8-bit |
| Program Memory (Flash) | 3.5 KB |
| RAM | 128 bytes |
| EEPROM | 256 bytes |
| GPIO Pins | 6 |
| ADC Resolution | 10-bit |
| Timers | 1 x 8-bit, 2 x 16-bit |
| PWM Channels | Yes |
| Operating Voltage | 1.8V to 5.5V |
| Oscillator Frequency | Up to 16 MHz (Internal) |
| Package | DIP-14 |
| Temperature Range | -40°C to +85°C |
