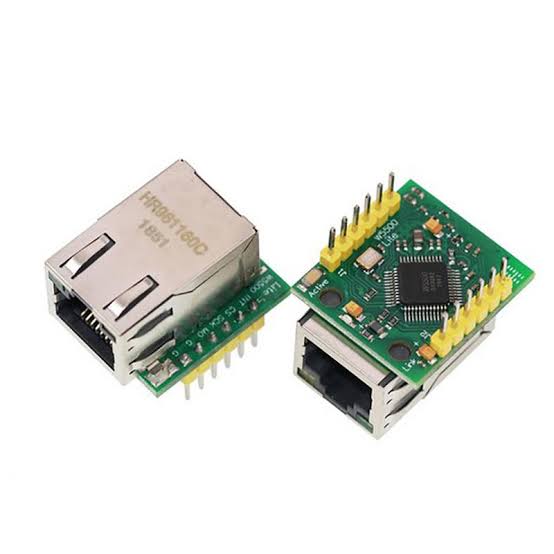

The W5500 Mini Ethernet Gateway is a compact SPI-to-LAN Ethernet interface module designed to add wired TCP/IP network connectivity to microcontrollers and embedded systems. Based on the WIZnet W5500 Ethernet controller, the module provides a reliable hardware-based TCP/IP networking solution while communicating with the host controller through the SPI interface.
This mini Ethernet gateway supports 10/100 Mbps Ethernet communication and can be used with popular microcontrollers and development platforms such as Arduino, STM32, ESP32, Raspberry Pi and other SPI-compatible controllers. Its compact design makes it suitable for embedded networking, industrial control, remote monitoring, IoT and automation applications.
Features
- W5500-based SPI to Ethernet interface module
- Provides TCP/IP networking through a standard SPI interface
- 10/100 Mbps Ethernet communication
- Integrated hardware TCP/IP protocol stack
- Supports up to 8 independent network sockets
- 32 KB internal TX/RX buffer memory
- High-speed SPI interface for communication with the host controller
- Supports TCP, UDP, IPv4, ICMP, ARP and other network protocols
- Compact mini gateway design for embedded applications
- Suitable for Arduino, STM32, ESP32 and other SPI-enabled controllers
- RJ45 Ethernet connection for wired LAN communication
- Useful for Ethernet-enabled IoT and industrial electronics projects
Applications
- SPI to LAN Ethernet communication
- Embedded Ethernet gateway applications
- Arduino Ethernet projects
- STM32 and ESP32 network applications
- Industrial automation and control systems
- IoT gateways and network-connected devices
- Remote monitoring and data acquisition
- TCP/IP and UDP communication systems
- Embedded web server applications
- Network-enabled sensors and controllers
- Smart home and building automation
Specification
Table| Parameter | Value |
|---|---|
| Ethernet Controller | W5500 |
| Interface | SPI |
| Network Interface | LAN Ethernet |
| Ethernet Speed | 10/100 Mbps |
| Network Protocol | TCP/IP |
| Hardware Sockets | 8 |
| Internal TX/RX Buffer | 32 KB |
| SPI Clock | Up to 80 MHz |
| Ethernet PHY | Integrated |
| Ethernet Connector | RJ45 |
| Operating Voltage | 3.3 V |
| Host Controllers | Arduino, STM32, ESP32 and SPI-Compatible MCUs |
| Module Type | Mini Ethernet Gateway |
