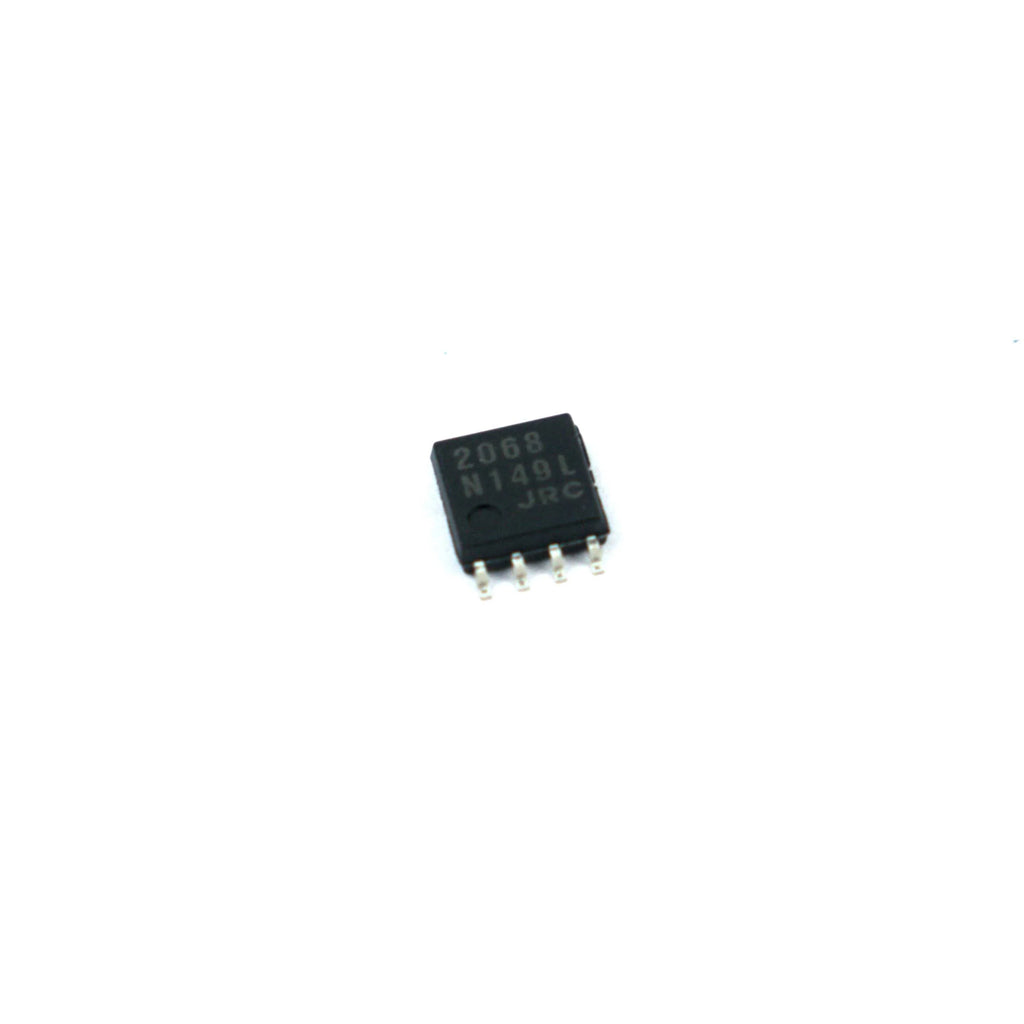

The JRC2068 is a dual operational amplifier with high performance and low noise. This amplifier has a popular pin-out, excellent noise performance, and low total harmonic distortion. This amplifier also has significantly better noise performance with a higher gain-bandwidth product and slew rate than the 4558 type amplifier. The JRC2068 can be used in very low noise signal processing
Features
- Operating voltage: ±4V - ±18V
- Low total harmonic distortion
- Low noise voltage
- High slew rate
- Unity gain bandwidth
- Bipolar technology
Applications
such as audio preamplifiers and servo error amplifiers thanks to specially designed low noise input transistors.Features
- Operating voltage: ±4V - ±18V
- Low total harmonic distortion
- Low noise voltage
- High slew rate
- Unity gain bandwidth
- Bipolar technology
Specification
| Model | 2068 |
| Brand | JRC |
| Mounting Type | SMD |
| No. of Pins | 8 |
| Supply Voltage (v+/v-) | ±18V |
| Differential Input Range (VID) | ±30V |
| Power Dissipation (PD) | 300mW |
| Operating Temperature Range | -20~75ºC |
| Storage Temperature range | -40~125ºC |
