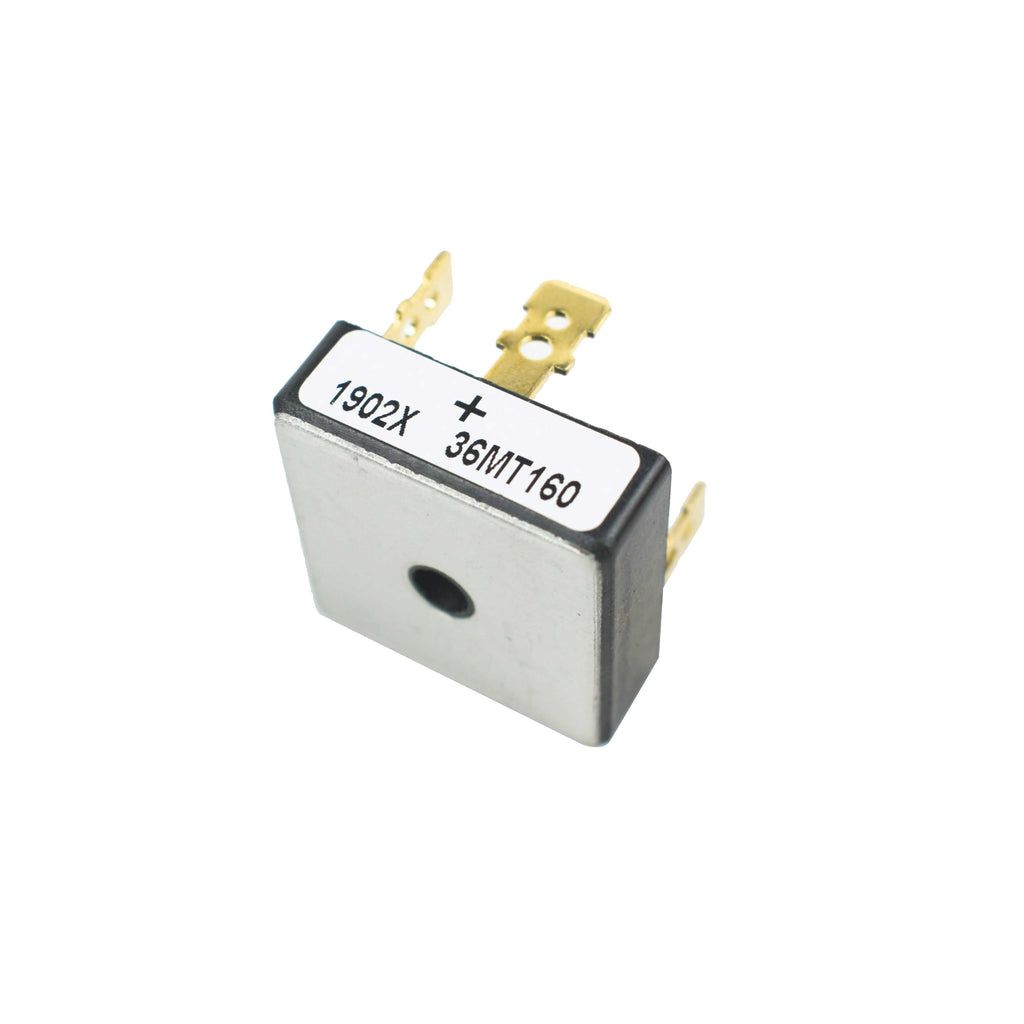

The 36MT160 is a Three Phase Bridge Rectifier Diode. The maximum DC current that this IC can handle is 35A hence can be used for a broad range of
Features
- Universal, 3 way terminals: push-on, wrap around or solder
- High thermal conductivity package, electrically insulated case
- Center hole fixing
- Excellent power/volume ratio
- Terminal solder temperature: 235-260°C mx. time: 8-10 sec.
Applications
this can be a good choice. This bridge rectifier is typically used in large UPS systems, electroplating, electro-refining and anodising plants, and large DC motor controllers.Features
- Universal, 3 way terminals: push-on, wrap around or solder
- High thermal conductivity package, electrically insulated case
- Center hole fixing
- Excellent power/volume ratio
- Terminal solder temperature: 235-260°C mx. time: 8-10 sec.
Specification
| Model | 36MT160 |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1600 V |
| Average Forward Rectified Output Current | 35A |
| Peak Reverse Current at 25°C | 100µA |
| Operating and Storage Temperature Range | -40°C TO 150°C |
| Quantity | 50 |
