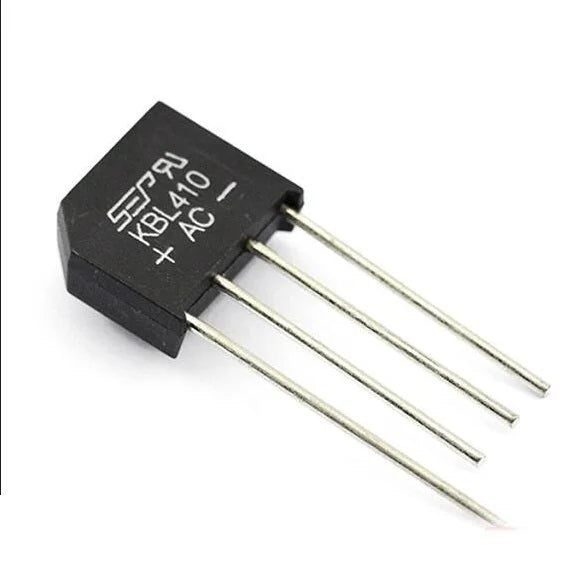

The KBL410 is a Single Phase Bridge Rectifier . The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of
Features
- High current capability
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Ideal for printed circuit board
Applications
this can be a good choice.This single phase bridge rectifier is mainly used in charger circuits , uninterruptible power supply , led and lcd TVs, audio amplifier and radios.
Features
- High current capability
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Ideal for printed circuit board
Specification
| Model | KBL410 |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1000 V |
| RMS Reverse Voltage VR(RMS) | 700 V |
| Maximum DC Blocking Voltage | 1000V |
| Average Forward Rectified Output Current | 4A |
| Peak Reverse Current @ 25°C | 10µA |
| Operating and Storage Temperature Range | -40°C TO 150°C |
