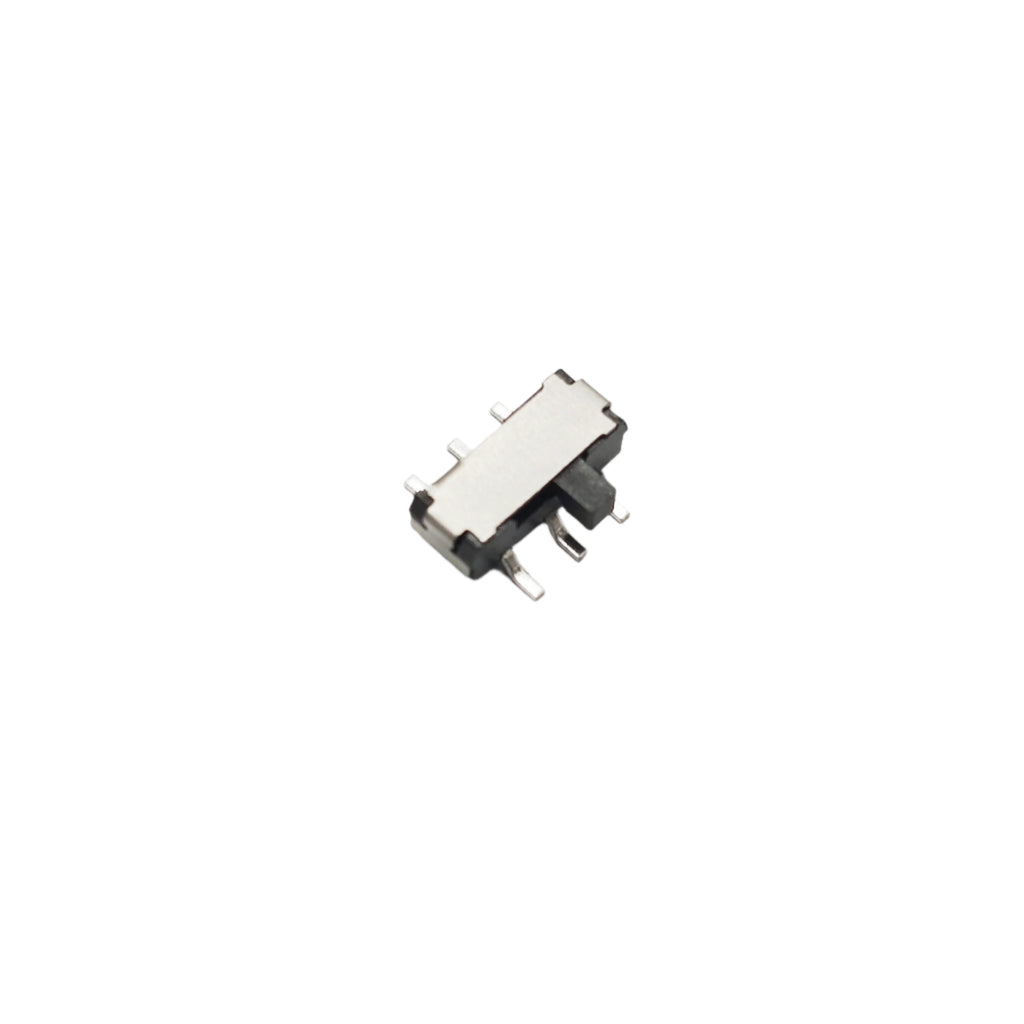

The MSK22D18-T is a miniature surface-mount (SMD) slide switch with a horizontal side button designed for compact electronic applications. It provides a reliable and smooth sliding action, making it ideal for switching functions in embedded systems, consumer electronics, and industrial control circuits. Its small form factor and lightweight design make it suitable for modern, space-constrained PCBs.
Features
- Miniature SMD slide switch for compact designs
- Horizontal side button for easy actuation
- 3-position (ON-OFF-ON) configurations available
- Durable and reliable mechanical sliding action
- Long lifespan for high durability in electronic circuits
- RoHS-compliant, lead-free construction
Applications
- Consumer Electronics – Remote controls, portable devices, and media players
- Embedded Systems – Microcontroller-based switching applications
- Industrial Equipment – Control panels and automation systems
- Wearable Technology – Smartwatches and compact gadgets
- DIY & Prototyping – Custom electronic circuits and development boards

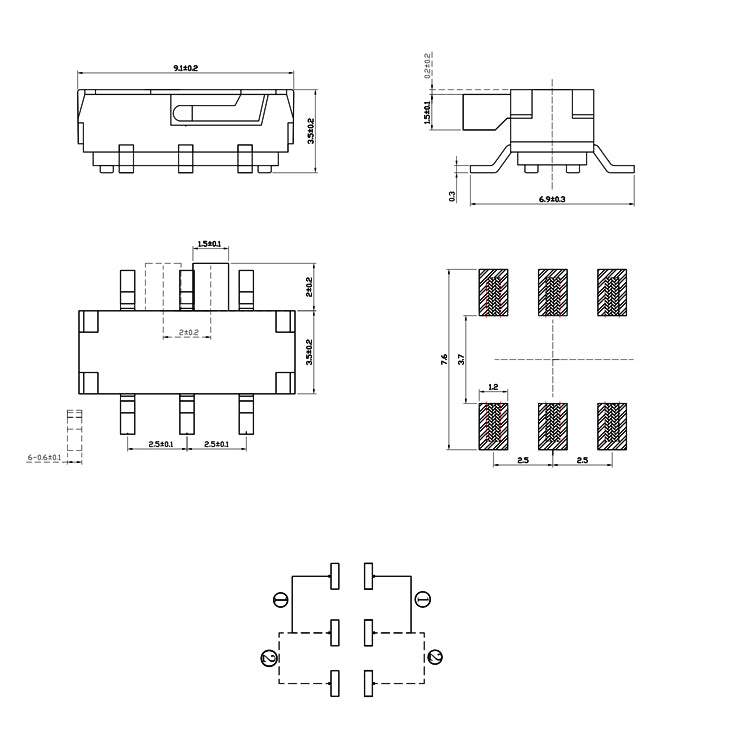

Specification
| Parameter | Value |
|---|---|
| Model | MSK22D18-T |
| Switch Type | Mini Slide Switch (SMD) |
| Actuation Type | Horizontal Side Button |
| Positions | 3-Position (ON-OFF-ON) |
| Mounting Style | Surface Mount (SMD) |
| Contact Rating | 0.3A @ 6V DC |
| Contact Resistance | ≤ 100mΩ |
| Insulation Resistance | ≥ 100MΩ @ 100V DC |
| Dielectric Strength | 250V AC for 1 minute |
| Operating Temperature | -25°C to +85°C |
| Lifespan | 10,000+ switching cycles |
| Compliance | RoHS, Lead-Free |
