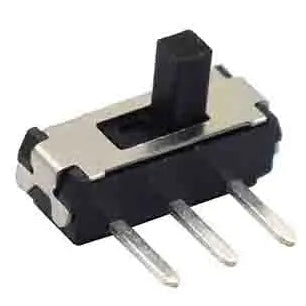

MSK12D18G2 2 position 3 Pin micro slide switch
is a miniature slide switch designed for applications requiring reliable SPDT (Single Pole Double Throw) functionality. Its compact form factor and durable construction make it suitable for various electronic devices and circuit designs.
Features
-
Compact Design: The switch features a small footprint with a 2.5mm pin pitch, making it ideal for space-constrained applications.
-
Durable Performance: Rated for up to 10,000 operation cycles, ensuring longevity and consistent performance over time.
-
Versatile
Applications
-
Consumer Electronics: Ideal for power control and function selection in devices like radios, cameras, and handheld gadgets.
-
Communication Equipment: Used in switches for signal routing and mode selection in communication devices.
-
Instrumentation: Suitable for test equipment and measurement devices requiring reliable switching mechanisms.
Specification
| Parameter | Value |
|---|---|
| Contact Rating | 100mA at 12V DC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 500V AC for 1 minute |
| Operating Temperature | -20°C to +70°C |
| Mechanical Life | 10,000 cycles |
| Mounting Type | Through-hole |
| Pin Pitch | 2.5mm |
| Positions | 2-position |
| Number of Pins | 3 |
| Actuator Type | Standard slide with black handle (2mm height) |
