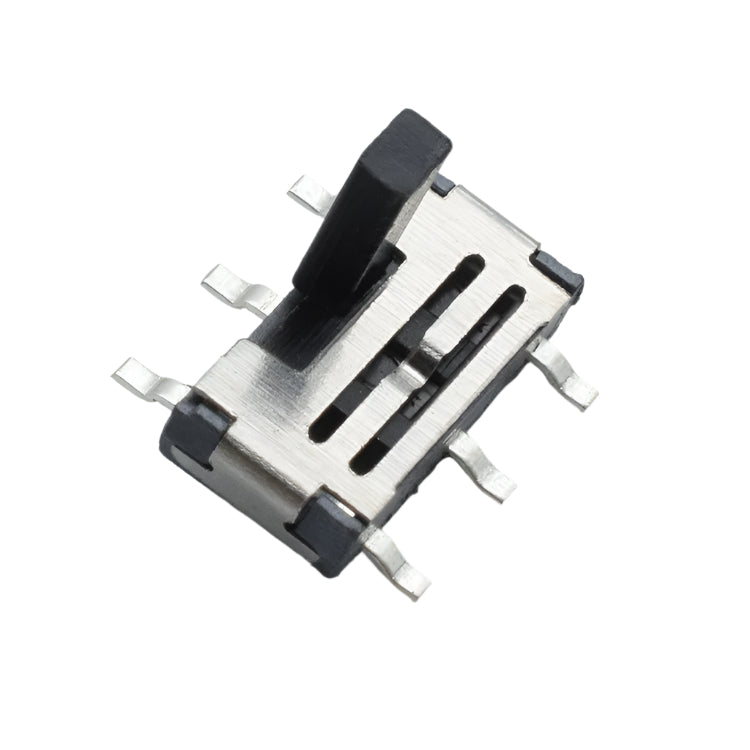

The MSS22C02 SMD Miniature Switch is a compact, surface-mount (SMD) 2-position switch designed for precise control in small electronic devices. Featuring an H-type slot actuator, this switch offers easy operation, reliable performance, and a long lifespan, making it ideal for consumer electronics, industrial controls, and embedded systems.
Features
- 2-Position Toggle Switch – Provides simple ON/OFF or mode selection functionality.
- H-Type Slot Actuator – Ensures secure and precise switching.
- Surface-Mount Design (SMD) – Saves PCB space and enables automated assembly.
- Compact Size – Ideal for miniaturized electronics.
- Durable Construction – Designed for long-lasting performance and repeated use.
- Low Contact Resistance – Ensures efficient signal transmission and minimal power loss.
Applications
- Consumer Electronics – Used in remote controls, handheld devices, and smart gadgets.
- Industrial Equipment – Suitable for control panels and automation systems.
- Medical Devices – Found in compact diagnostic and monitoring equipment.
- Wearable Technology – Ideal for smartwatches and fitness trackers.
- Embedded Systems – Common in development boards and electronic prototypes.
Specification
| Parameter | Value |
|---|---|
| Model Number | MSS22C02 |
| Switch Type | 2-Position Miniature Toggle Switch |
| Mounting Type | Surface Mount (SMD) |
| Actuator Type | H-Type Slot |
| Contact Rating | Typically 12V DC, 50mA |
| Contact Resistance | Low (Varies by Model) |
| Operating Temperature | -25°C to +85°C |
| Application | Consumer Electronics, Industrial, Embedded Systems |
