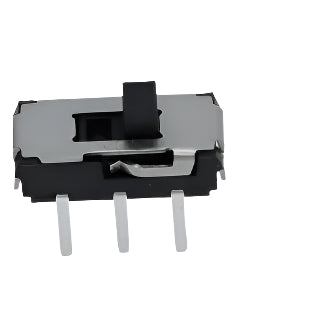

The MSS22D18 is a dual-pole, dual-throw (DPDT) slide switch featuring six pins and designed for through-hole mounting. This compact switch is suitable for various electronic applications requiring reliable switching between two circuits.
Features
- DPDT Configuration: Allows control of two separate circuits, enabling versatile switching functions.
- Compact Design: Small form factor ideal for space-constrained applications.
- Through-Hole Mounting: Ensures secure placement on printed circuit boards (PCBs).
- Durable Construction: Rated for over 10,000 operation cycles, ensuring long-lasting performance.
Applications
- Consumer Electronics: Used in devices like radios, cameras, and handheld gadgets for function selection.
- Communication Equipment: Ideal for signal routing and mode selection in communication devices.
- Instrumentation: Suitable for test equipment and measurement devices requiring reliable switching mechanisms.
Specification
| Parameter | Value |
|---|---|
| Switch Type | DPDT (Dual Pole Dual Throw) |
| Positions | 2-position |
| Contact Rating | 50 mA at 12 VDC |
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | ≥1,000 MΩ |
| Dielectric Strength | 1,500 VAC for 1 minute |
| Operating Temperature | -25°C to +85°C |
| Mechanical Life | ≥10,000 cycles |
| Mounting Type | Through-Hole |
