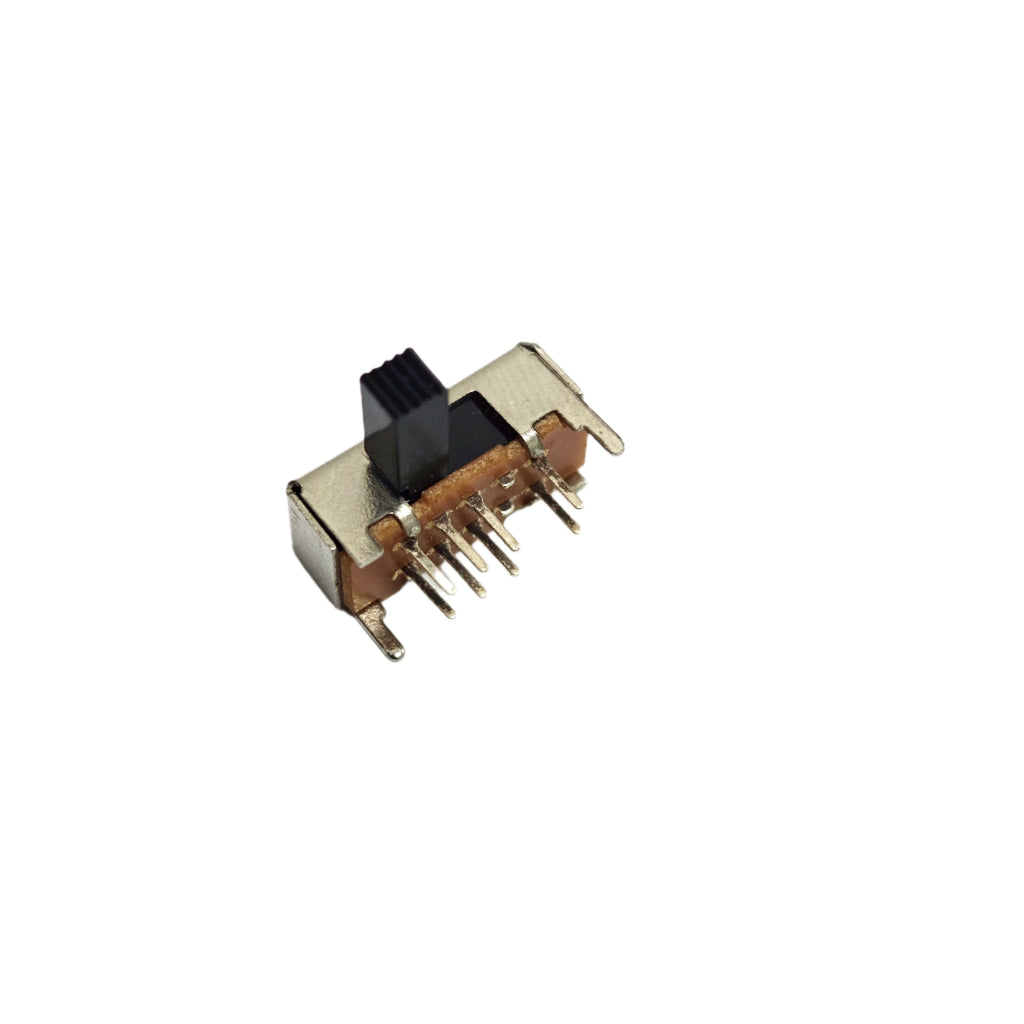

The SK23D06 is a high-quality right-angle slide switch designed for reliable and precise manual switching. Its compact design and robust build make it ideal for use in various electronic applications requiring circuit selection or control.
Features
- Right-Angle Design: Allows for efficient use of PCB space.
- Double Pole, Six Throw (DP6T): Supports versatile circuit configurations.
- Durable Construction: Rated for up to 10,000 mechanical cycles.
- Low Contact Resistance: Ensures minimal power loss.
- Wide Operating Temperature: Suitable for diverse environmental conditions (-25°C to +70°C).
- Compact and Easy to Mount: Designed for through-hole PCB assembly.
Applications
- Consumer Electronics: Function selection in audio devices, remote controls, and more.
- Communication Devices: Switching between signal paths in radios and transceivers.
- Instrumentation: Used in test and measurement equipment for mode selection.
- DIY Projects: Ideal for hobbyists and prototyping needs.
Specification
| Parameter | Value |
|---|---|
| Switch Type | Slide Switch |
| Configuration | Double Pole, Six Throw (DP6T) |
| Mounting Style | Right-Angle, Through-Hole |
| Actuator Type | Side Knob |
| Rated Current | 0.3A |
| Rated Voltage | 50V DC |
| Contact Resistance | €°¤0.05Ω |
| Insulation Resistance | €°¥100MΩ |
| Operating Temperature | -25°C to +70°C |
| Mechanical Life | 10,000 Cycles |
| Number of Pins | 8 |
