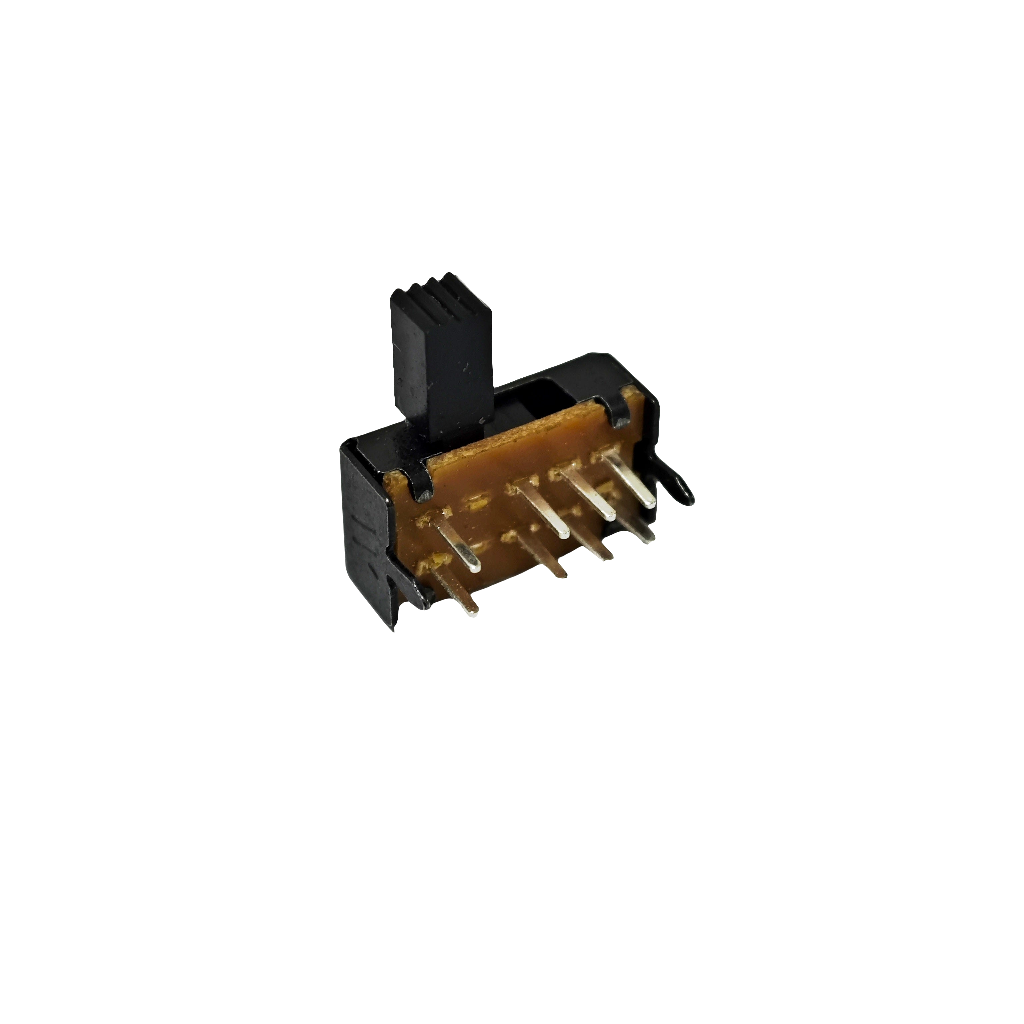

The SK23D07G6 is a miniature slide switch designed for products requiring a compact and reliable switching solution. This switch features a double pole, triple throw (DP3T) configuration, providing versatile control options in electronic circuits.
Features
- Compact Design: Measuring 8.9mm in length, 2.5mm in width, and 4.0mm in height, the SK23D07G6 is suitable for space-constrained applications.
- Durable Construction: Rated for up to 10,000 cycles with load, ensuring longevity in various applications.
- Reliable Performance: Supports a contact rating of 0.3A at 30V DC, making it suitable for low-power switching applications.
- Versatile Configuration: The DP3T configuration allows for multiple circuit control options, enhancing design flexibility.
Applications
- Consumer Electronics: Ideal for devices like remote controls, portable media players, and gaming consoles.
- Industrial Equipment: Suitable for control panels and instrumentation requiring reliable tactile feedback.
- Automotive Controls: Used in dashboard interfaces and other in-vehicle control systems.
Specification
| Parameter | Value |
|---|---|
| Switch Type | Slide, DP3T |
| Orientation | Right Angled |
| Actuation Force | 250 ± 100 gf (2.45 ± 0.98 N) |
| Operating Life | 10,000 cycles with load |
| Contact Rating | 0.3A at 30V DC |
| Contact Resistance | ≤30 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Operating Temperature | -20°C to +70°C |
| Dimensions (L x W x H) | 8.9 x 2.5 x 4.0 mm |
| Mounting Type | Surface Mount (SMD) |
| Knob Material | POM |
| Frame Material | SPCC (Black) |
