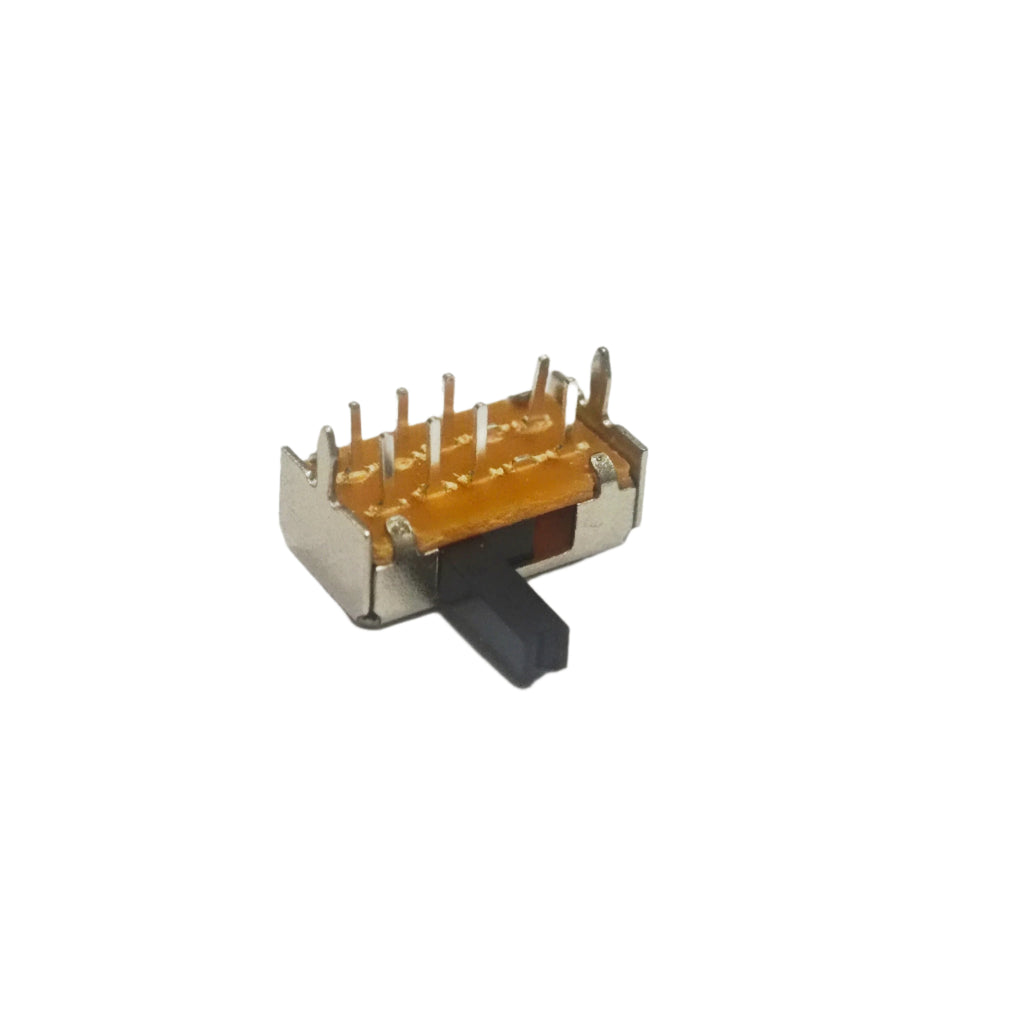

The SK23D07VG6 DP3T (Double Pole Triple Throw) slide switch is a versatile and reliable component designed for applications requiring multiple circuit configurations. This compact and durable switch is ideal for consumer electronics, industrial equipment, and DIY projects. It features a smooth sliding mechanism for easy operation and ensures a long service life even in demanding conditions.
Features
- Double Pole Triple Throw (DP3T): Allows switching between three positions for two circuits.
- Compact Design: Ideal for space-constrained electronic devices.
- Durable Construction: High-quality materials ensure long-lasting performance.
- Smooth Operation: Reliable sliding mechanism for precise control.
- Easy Mounting: Suitable for PCB or panel mounting.
Applications
- Consumer Electronics: Mode selection in audio devices, remote controls, and toys.
- Industrial Equipment: Switching between different operating modes or configurations.
- Prototyping and DIY: Custom electronic projects and circuit designs.
- Control Panels: Used for power selection and system control.
- Instrumentation: Mode selection in test and measurement devices.
Specification
| Parameter | Value |
|---|---|
| Switch Type | Slide Switch (DP3T) |
| Number of Poles | 2 (Double Pole) |
| Number of Throws | 3 (Triple Throw) |
| Contact Rating | 0.5A @ 12V DC |
| Actuation Type | Slide |
| Operating Force | ~2.5N |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 100MΩ @ 500V DC |
| Dielectric Strength | 500V AC for 1 minute |
| Operating Temperature | -25°C to +85°C |
| Mounting Style | PCB Mount |
| Durability | 10,000 cycles (minimum) |
