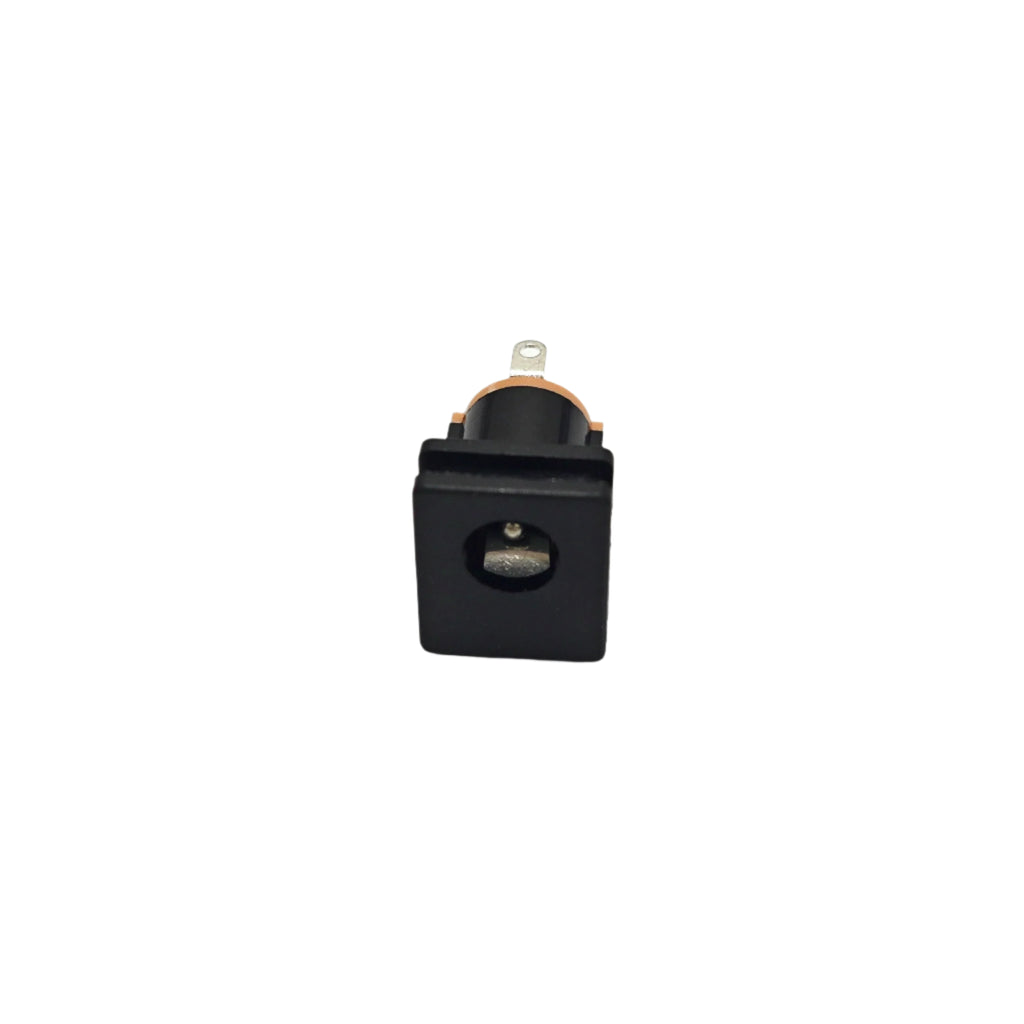

The DC-015 DC Power Jack Socket is a high-quality, durable connector designed for providing reliable DC power input to electronic devices. This power jack ensures a stable connection and is suitable for a wide range of applications, from consumer electronics to DIY projects.
Features
- Voltage and Current Rating: Supports up to 30V at 0.5A, ensuring compatibility with most DC-powered devices.
- Durable Build: Made from high-quality materials for long-lasting performance.
- Easy Installation: Panel mount design allows quick and secure mounting.
- Reliable Connection: Provides a stable and secure DC power input.
- Compact Size: Ideal for small electronic devices and projects.
Applications
- Power Supplies: Used in power adapters and chargers.
- Audio Devices: Powers amplifiers and audio equipment.
- Consumer Electronics: Suitable for gadgets, cameras, and handheld devices.
- DIY Projects: Ideal for hobby electronics and custom builds.
- Industrial Equipment: Provides DC power to control panels and machinery.

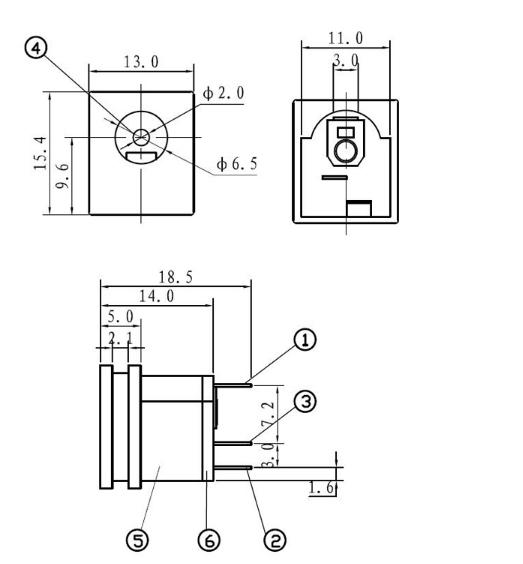

Specification
| Parameter | Value |
| Operating Voltage | 30V DC |
| Current Rating | 0.5A |
| Connector Type | DC Jack |
| Mounting Type | Panel Mount |
| Pin Diameter | 2.0mm |
| Outer Diameter | 6.5mm |
| Material | High-Quality Plastic/Metal |
| Operating Temperature | -20°C to 80°C |
