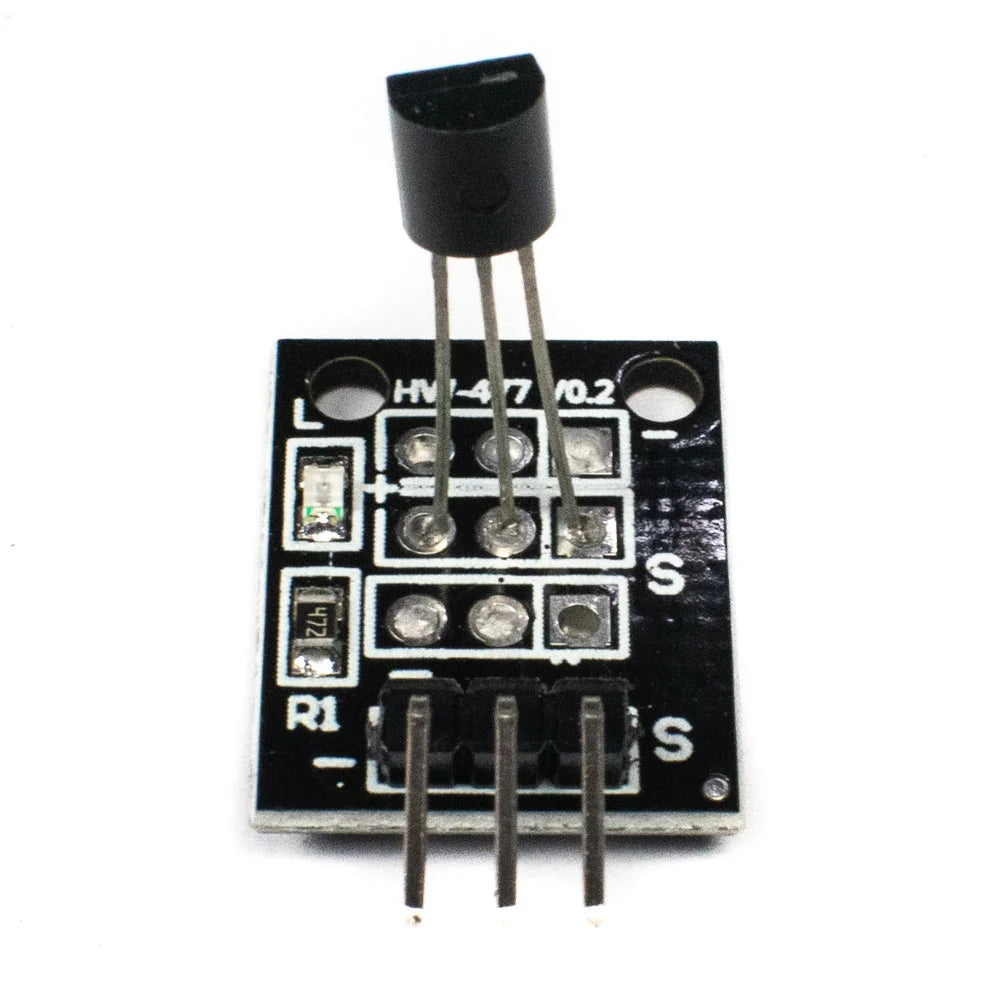

The DS18B20 Digital Thermometer provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device.
Information is sent to/from the DS18B20 over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor to a DS18B20. Power for reading, writing, and performing temperature conversions can be derived from the data line itself with no need for an external power source.
Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places.
Features
- Unique 1-Wire interface requires only one port pin for communication
- Multidrop capability simplifies distributed temperature sensing
Applications
Specification
| Model | DS18B20 |
| Temperature Range | -55°C to 125°C |
| Resolution | 9 to 12 bit |
| Accuracy | ±0.5°C from -10°C to 85°C |
| Operating Voltage |
3.3V to 5.5V DC |
| PCB Size | 18.6x15mm |
