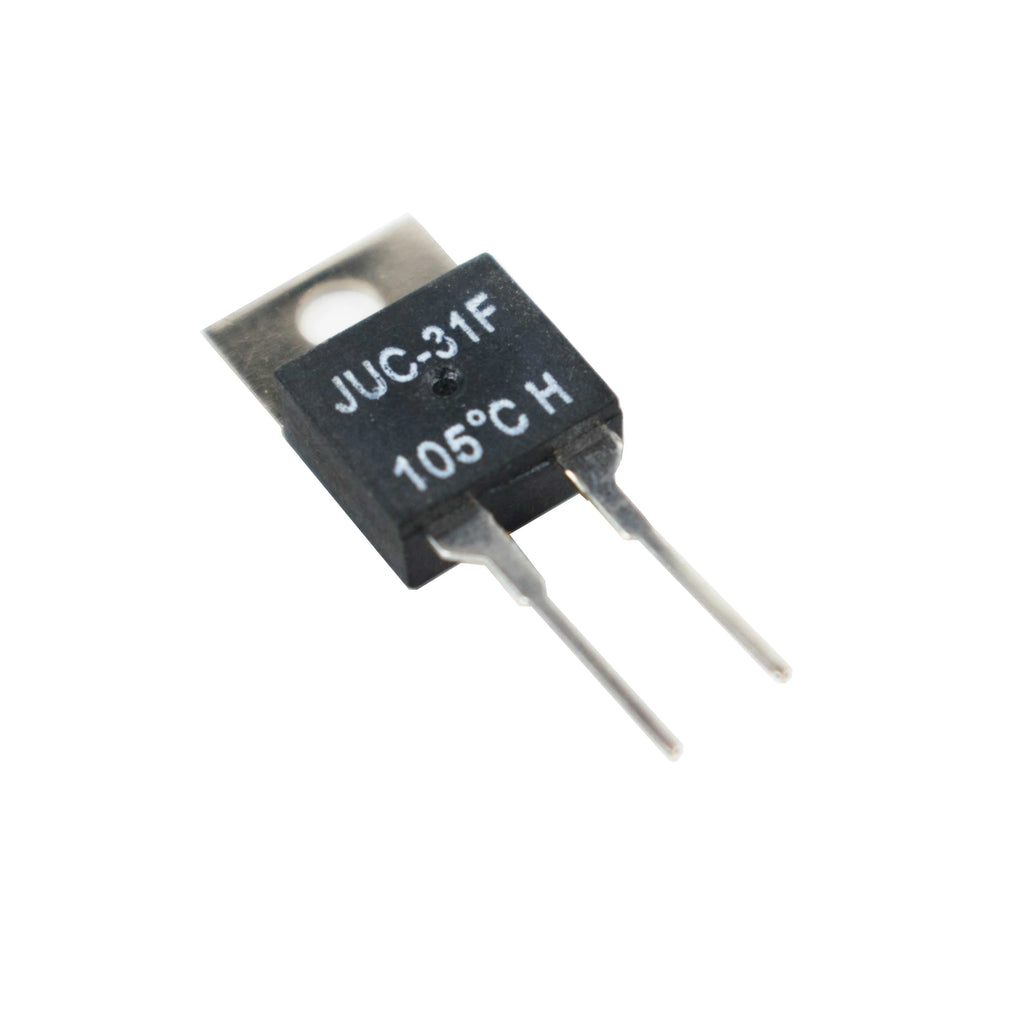

JUC-31F 105Â°C Subminiature Bimetal Disc Thermostat

JUC-31F 105°C Subminiature Bimetal Disc Thermostat

~~Rs. 92.00~~Rs. 81.00Save -12%

10 people are viewing this right now.

Estimated Delivery Date : 09 - 13 January, 2025.

Return rules summary

Returns accepted for 7 days
Free return shipping
No restocking fee

Safe checkout

The RoHS-compliant JUC-31F 105°C is a single pole/single throw, positive snap action, sub-miniature bimetallic thermostat that combines accurate and dependable sensing and switching. Dimensionally, the JUC31F105 thermostat complies with the TO220 international product package standard. Thus, the expensive hand placement and termination necessary today for the majority of power supply thermostats may be avoided by automatically placing and soldering the 6700 into PC boards with high speed automated equipment. The JUC31F105 offers a quick, affirmative response with superb repeatability. The thermostat has a switch capability of up to 0.5 amp for 48VDC, and achieves low-level switching down to 0.001A to 0.020A at 5 VDC for 100,000 cycles. The factory pre-set temperature cannot be changed in the field. The unit is excellent for both surface mount and ambient air sensing since thermal conductivity is mostly between the terminals and the mounting bracket. For greater dielectric strength and VDE approval, you can use the laminated plastic mounting bracket in place of the conventional nickel-plated copper mounting bracket.

Features
-

Up to 20,000 life cycles @ max standard amperage
RoHS compliant per EU directive 2002 / 95 / EC
TO-220 international electronic package standard
Ideal for surface and air sensing on PC boards and heat sinks
VDE approved with €š¬œP€š¬� bracket option

Specification

Model	JUC31F105
Rating	0.5 Amp @ 48 V DC
Switching Temperature	105 °C
Reset Temperature	80 °C
Function	Close on Rise
Package	TO-220
Rated Load	250V 2A AC
