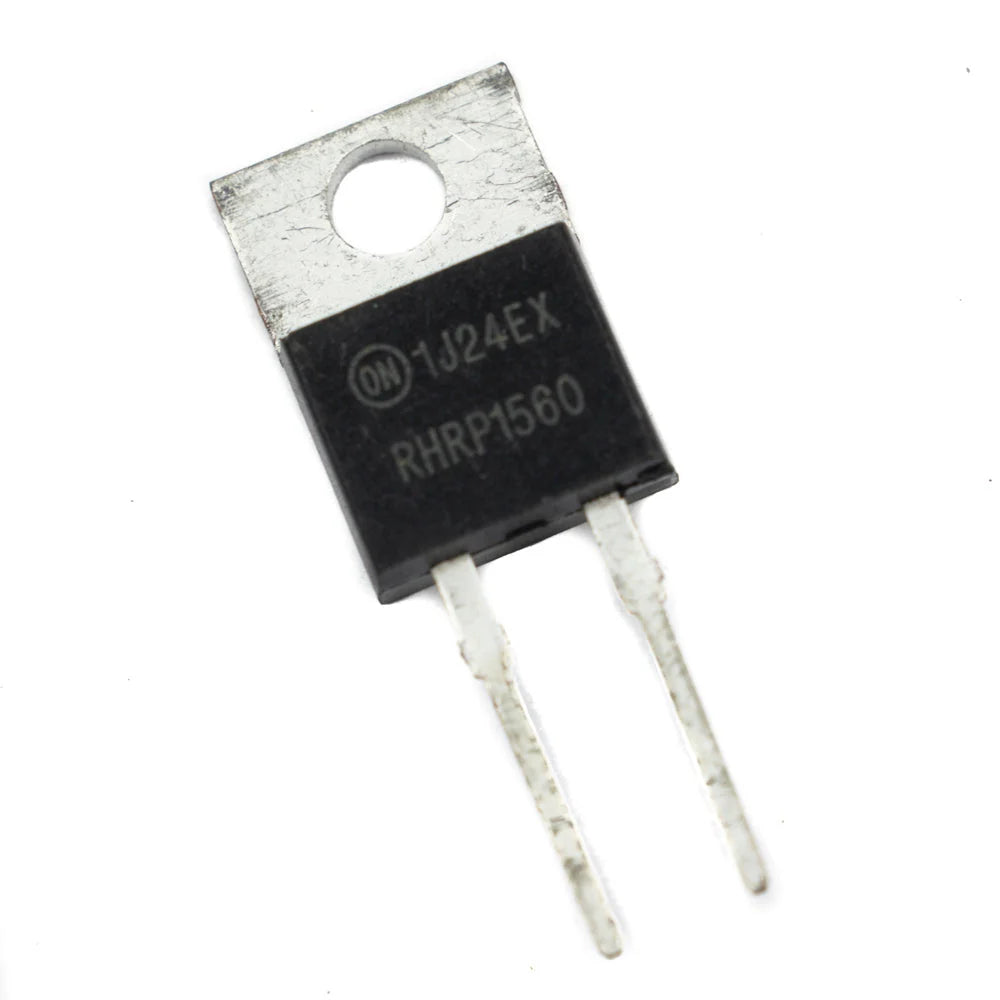

The RHRP1560 is a hyperfast diode with soft recovery. It is a silicon nitride passivated ion-implanted epitaxial planar structure with half the recovery time of ultrafast diodes. These devices are designed to be utilised as freewheeling/clamping diodes and diodes in a wide range of switching power supply and other power switching
Features
- Hyperfast Recovery t, = 40 ns (15 A)
- Max Forward Voltage. V = 21 V(@Te = 25°C)
- 400 V, 800V Reverse Voltage and High Reliability
- Avalanche Energy Rated
- RoHS Compliant
Applications
- Switching Power Supplies
- Power Switching Circuits
- General Purpose
Specification
| Model | RHRP1560 |
| Package | TO-220AC-2L |
| Brand | FSC/ONSEMI |
| Peak Repetitive Reverse Voltage | 600V |
| Average Rectified Forward Current | 15A |
| Repetitive Peak Surge Current | 30A |
| Non-Repetitive Peak Surge Current | 200A |
| Max. Power Dissipation | 100W |
| Avalanche Energy | 20mJ |
| Operting Temperature | -65°C to 175°C |
