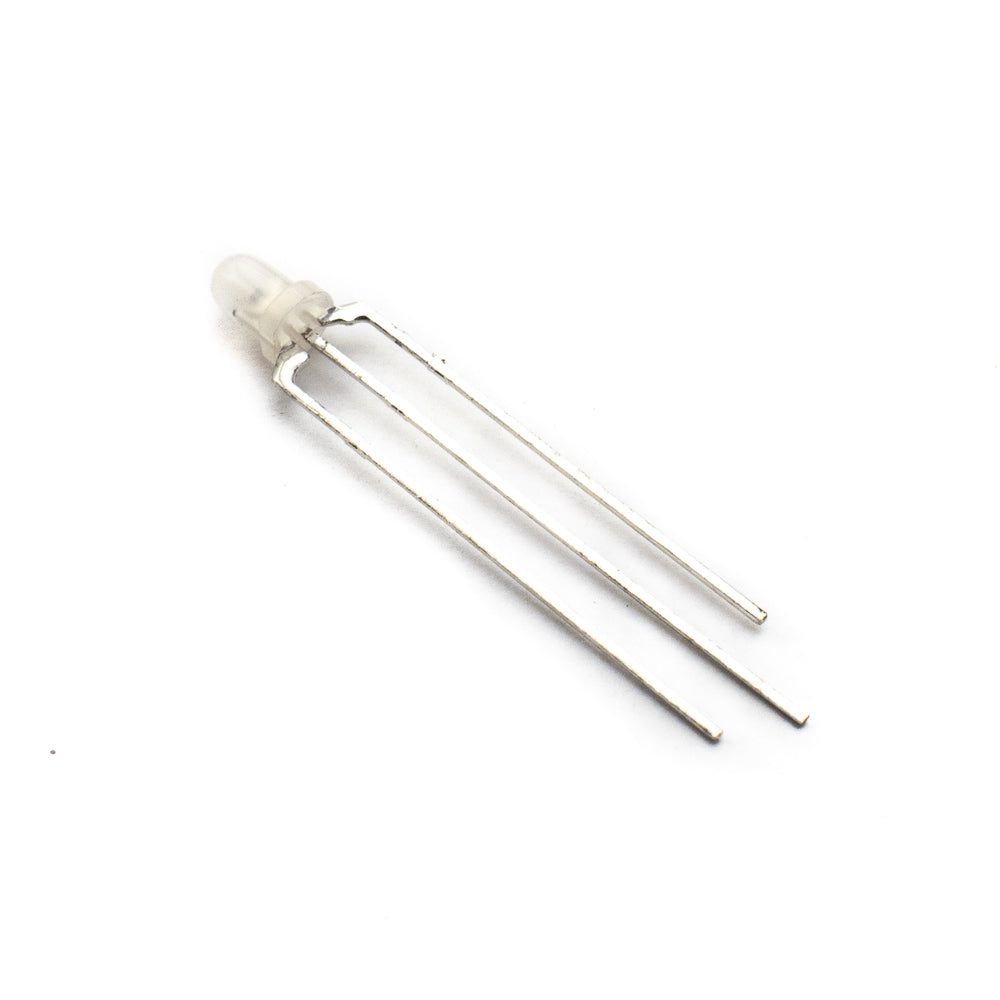

A small red and blue bi-colour 3mm light-emitting diode with a common anode that produces consistent light and consumes little power, contained in a milky white packaging. It is suitable for PCB or panel mounting. In a shared anode design, diodes are linked. The common anode is the centre leg, and it is the place where a resistor should be installed for the protection of the LED.
Pin Configuration
| Pin Name | Description |
| Cathode | Negative terminal of Red LED(the big pin of the LED ) |
| Anode | Common Positive terminal of LED(biggest pin of the LED) |
| Cathode | Negative terminal of Blue LED(smallest pin of the LED ) |
Specification
| Red Forward Voltage | 2.0V |
|
Blue Forward Voltage |
3.0V |
| Max DC Forward Current | 20mA |
| Colours | Red & Blue |
| Diameter | 3mm |
