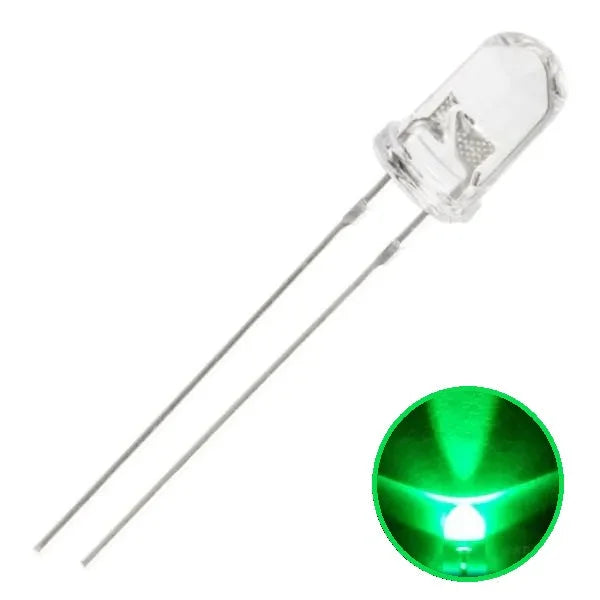

The 5mm Green LED with a Clear Lens is a high-intensity, energy-efficient light-emitting diode (LED) designed for a wide range of electronic and lighting
Features
- Lens Diameter: 5mm
- Lens Type: Clear, water-clear lens for maximum brightness and focused light emission
- Emission Color: Bright Green
- Forward Voltage (Vf): Typically 3.0-3.2V DC
- Forward Current (If): Typically 20mA
- Intensity: High-intensity brightness, ideal for daylight visibility
- Viewing Angle: 15° to 30° (depending on specific model)
- Long Lifespan: Reliable and long-lasting, up to 100,000 hours of operation
- Package Type: Through-hole, suitable for PCB mounting
Applications
, decorative lighting, and indicators.Specification
| Feature | Value |
|---|---|
| LED Type | 5mm Round Clear Lens (Water-Clear) |
| Emission Color | Pure Green |
| Brand | Superlite |
| Lens Type | Clear (Water-Clear for maximum brightness) |
| Forward Voltage (Vf) | 3.0V - 3.2V DC |
| Forward Current (If) | 20mA (typical), Max: 30mA |
| Luminous Intensity | 2000 to 6000 mcd (depending on model) |
| Viewing Angle | 15° - 30° |
| Wavelength | 520nm - 525nm |
| Power Dissipation | Max 100mW |
| Reverse Voltage | 5V (maximum) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Mounting Type | Through-Hole (2-pin leads for PCB mounting) |
| Lifespan | Up to 100,000 hours |
| Package | Epoxy Resin, Clear Round 5mm Lens |
| Polarity | Cathode (-) is the shorter lead, Anode (+) is the longer lead |
