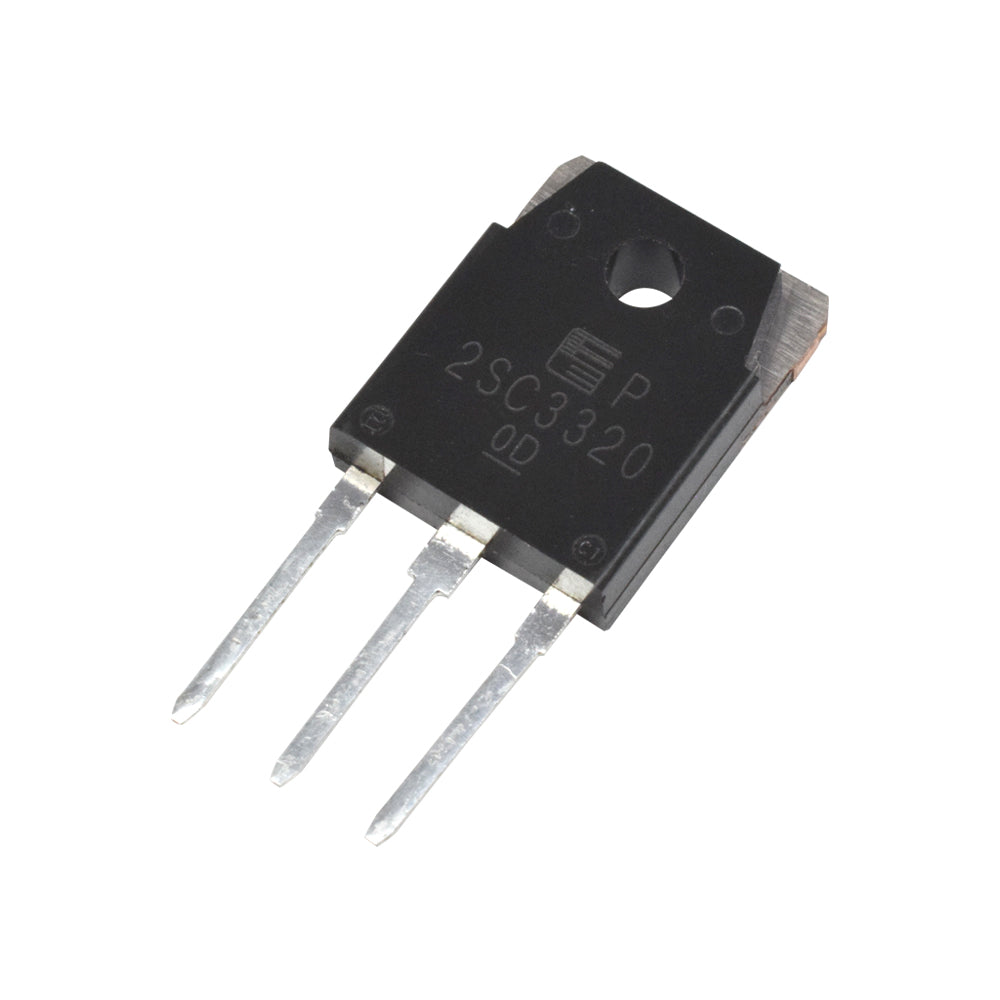

This 2SC3320 is a Silicon NPN Power Transistor Triple Diffused Planer Type High Voltage, High-Speed Switching Transistor.
Features
- High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min)
- High Switching Speed
- High Reliability
Applications
- Switching regulators
- Ultrasonic generators
- High-frequency inverters
- General-purpose power amplifiers
Specification
| Model | 2SC3320 |
| Brand | Fuji Electric |
| Type | Silicon NPN Power Transistor |
| Polarity | NPN |
| Mounting Type | Through Hole |
| No. of Pin | 03 |
| Collector-Base Voltage VCBO | 500V |
| Collector-Emitter Voltage VCEO | 400V |
| Emitter-Base Voltage VEBO | 7V |
| Collector Current-Continuous Ic | 15A |
| Base Current-Continuous | 5A |
| Collector Power Dissipation Pc | 80W |
| Storage Temperature Range | -65~150 C |
