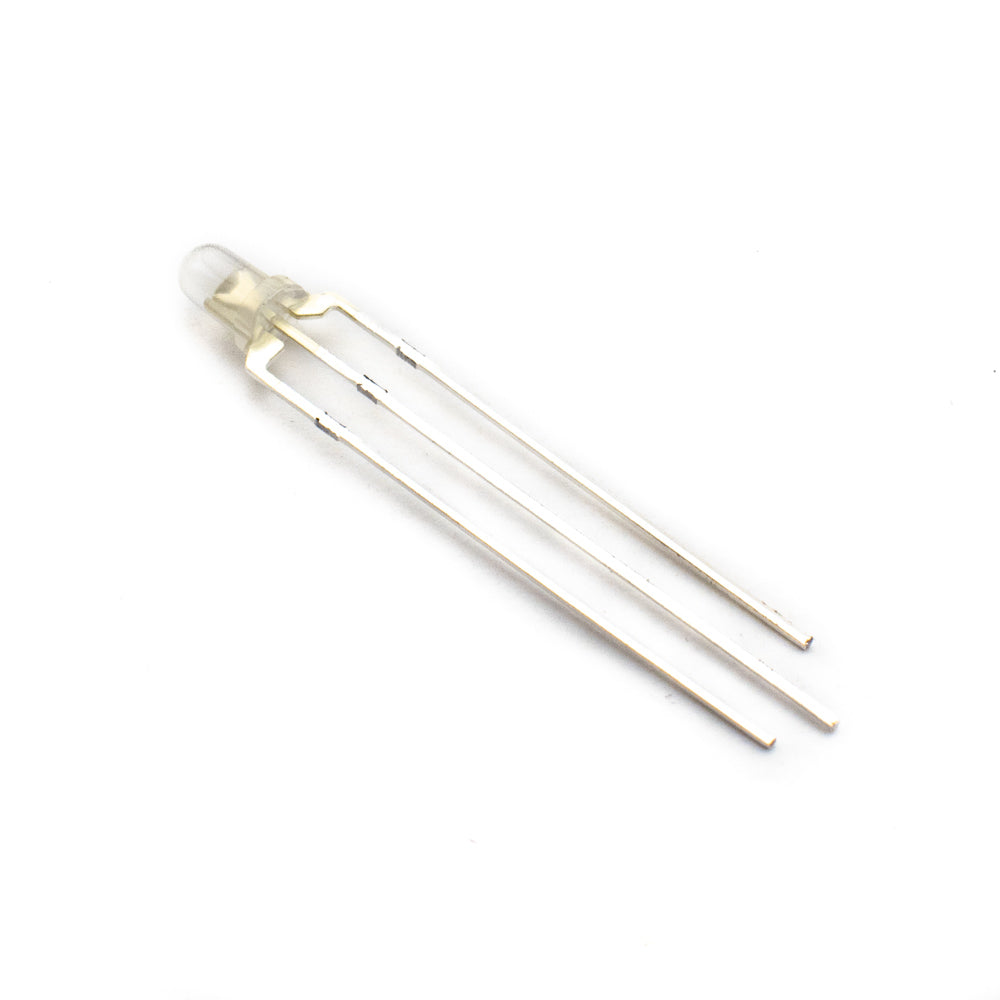

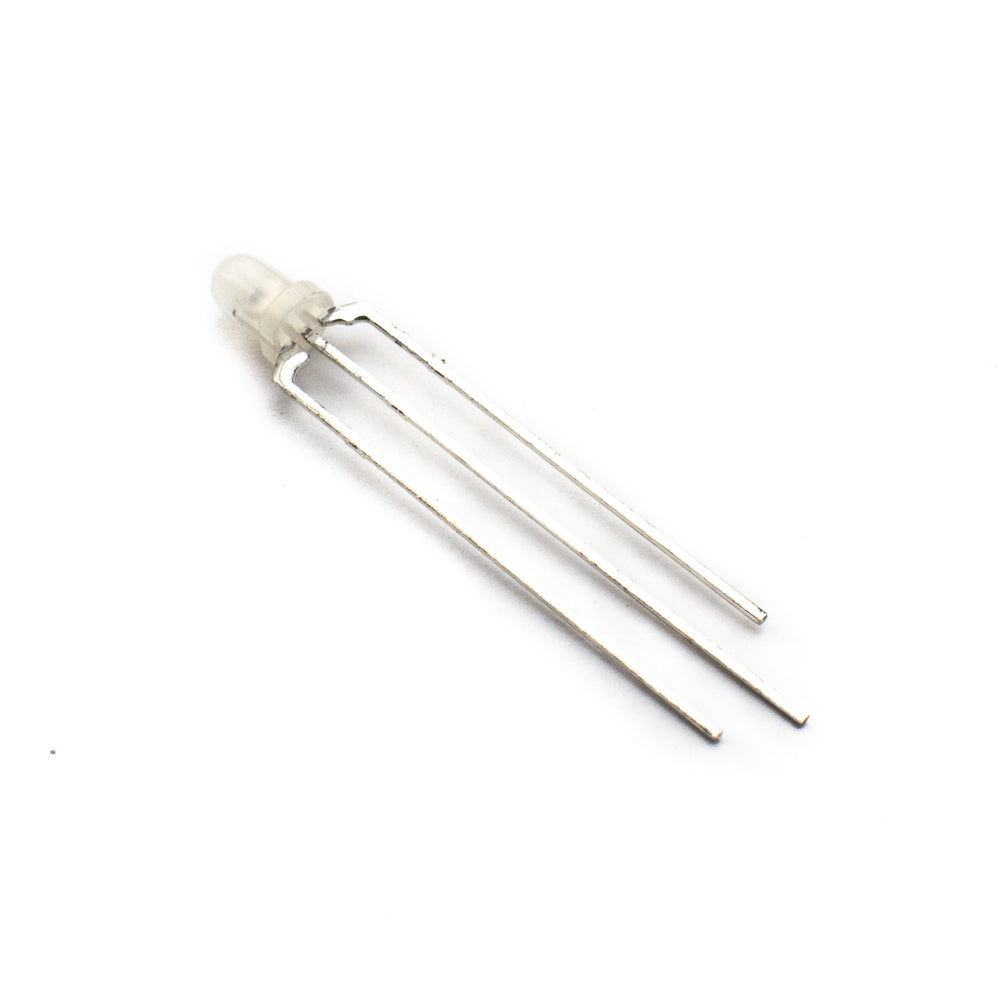

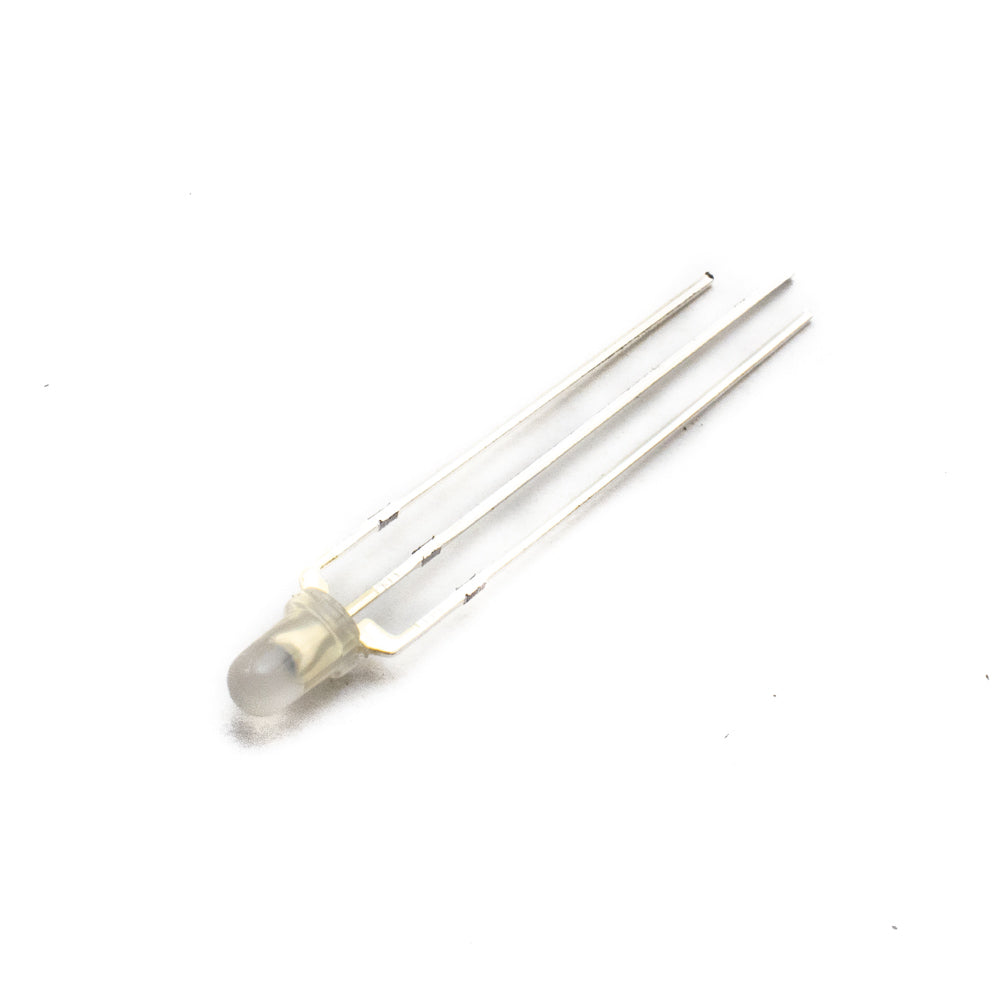

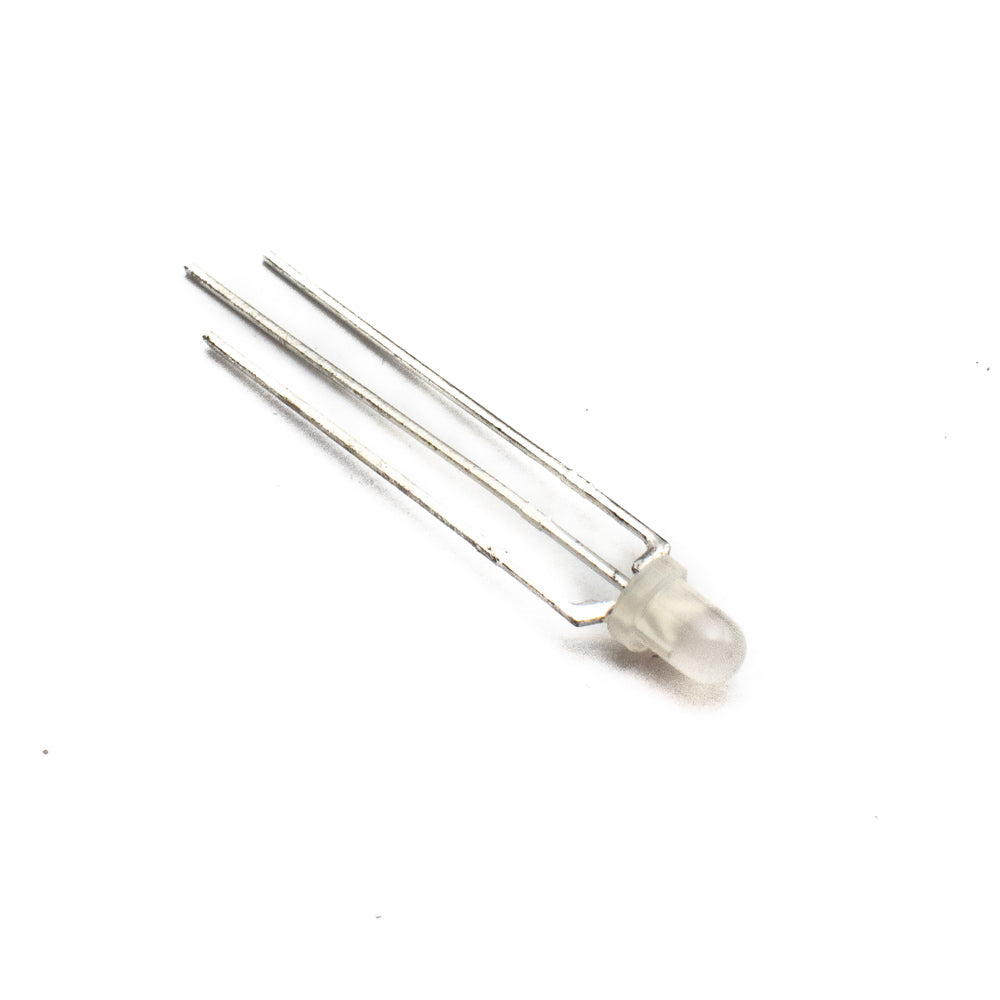

3mm Red / Blue Bi-Colour 3 Pin LED (Common Anode)

3mm Red / Blue Bi-Colour 3 Pin LED (Common Anode)

SKU Code: # THL79

Sale Sold out
Shipping calculated at checkout.

In stock

View full details

Description

A small red and blue bi-colour 3mm light-emitting diode with a common anode that produces consistent light and consumes little power, contained in a milky white packaging. It is suitable for PCB or panel mounting. In a shared anode design, diodes are linked. The common anode is the centre leg, and it is the place where a resistor should be installed for the protection of the LED.

Pin Configuration

Pin Name Description
Cathode Negative terminal of Red LED(the big pin of the LED )
Anode Common Positive terminal of LED(biggest pin of the LED)
Cathode Negative terminal of Blue LED(smallest pin of the LED )

Specifications
Red Forward Voltage 2.0V
Blue Forward Voltage
 3.0V
Max DC Forward Current 20mA
Colours Red & Blue
Diameter 3mm
