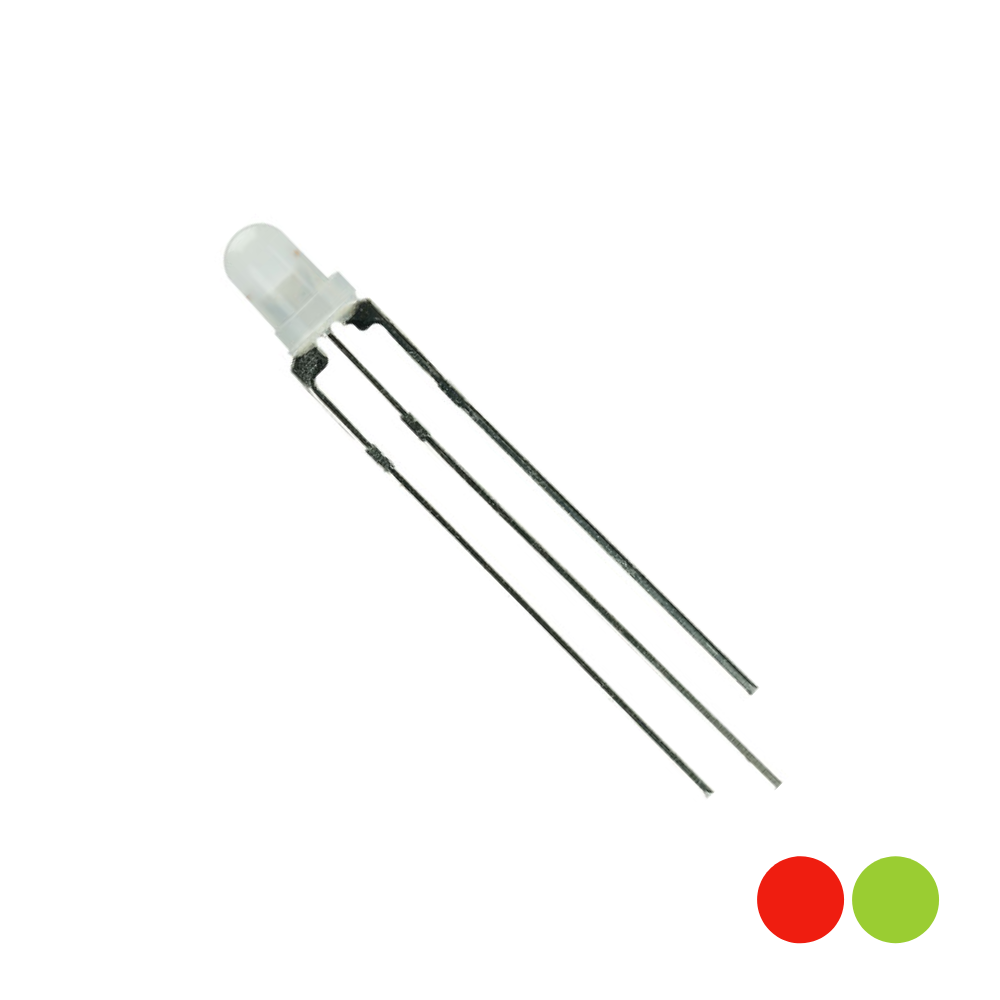

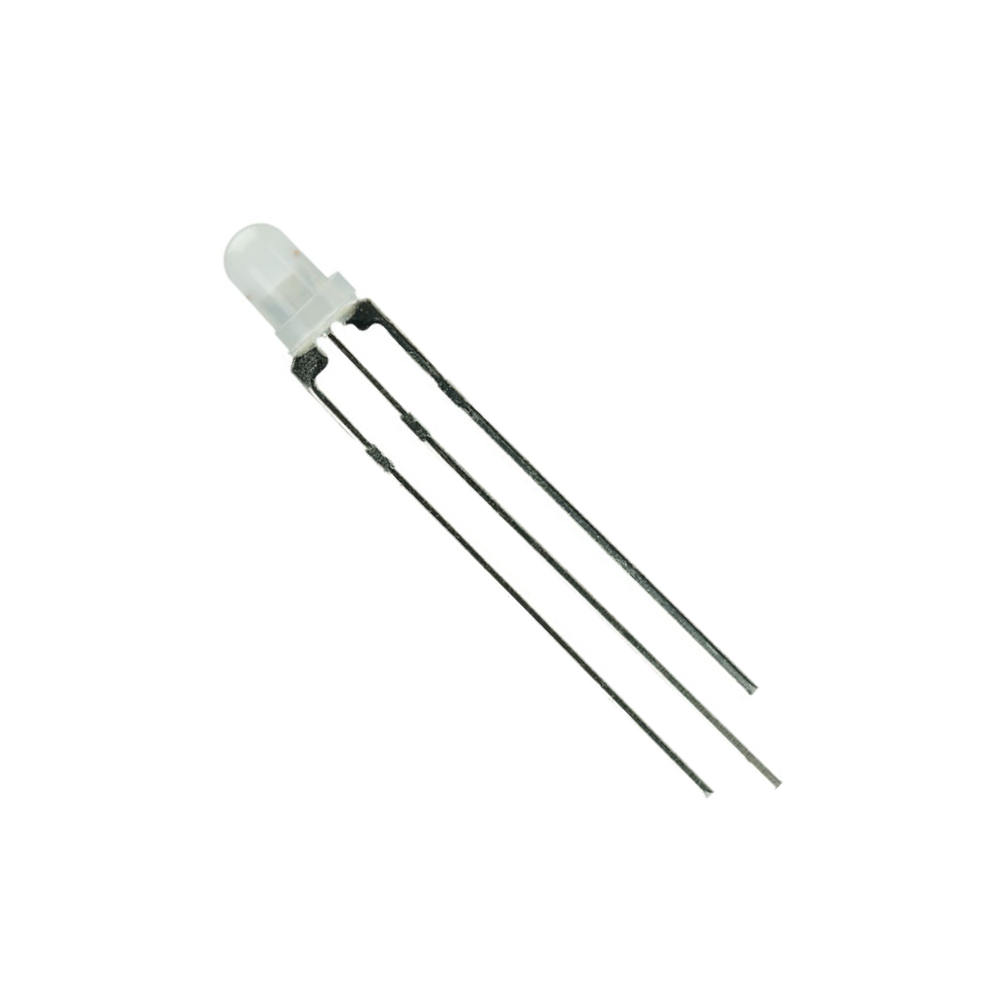

• 3mm Red / Green Bi-Colour 3 Pin LED (Common Cathode)
  • 3mm Red / Green Bi-Colour 3 Pin LED (Common Cathode)
1 2
Through Hole LED

3mm Red / Green Bi-Colour 3 Pin LED (Common Cathode)

3mm Red / Green Bi-Colour 3 Pin LED (Common Cathode)

Rs. 10.00
Rs. 10.00

A small red and green bi-color 3mm light-emitting diode with a common cathode that produces consistent light and consumes little power, contained in a milky white packaging. It is suitable for PCB or panel mounting....

SKU: THL78
Vendor: electronifyindia
Type: Industrial Components

Availability: Low stock

delivery-truck Estimated Delivery Date : 5 - 9 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Guaranteed safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa
View full details

Description

A small red and green bi-color 3mm light-emitting diode with a common cathode that produces consistent light and consumes little power, contained in a milky white packaging. It is suitable for PCB or panel mounting. In a shared cathode design, diodes are linked. The common cathode is the center leg, and it is the place where a resistor should be installed for the protection of the LED.

Pin Configuration

Pin Name Description
Anode Positive terminal of Red LED(the big pin of the LED )
Cathode Common negative terminal of LED(biggest pin of the LED)
Anode Positive terminal of Green LED(smallest pin of the LED )

Specifications
Red Forward Voltage 2.0V
Green Forward Voltage
 3.0V
Max DC Forward Current 20mA
Colours Red/Green
Diameter 3mm
