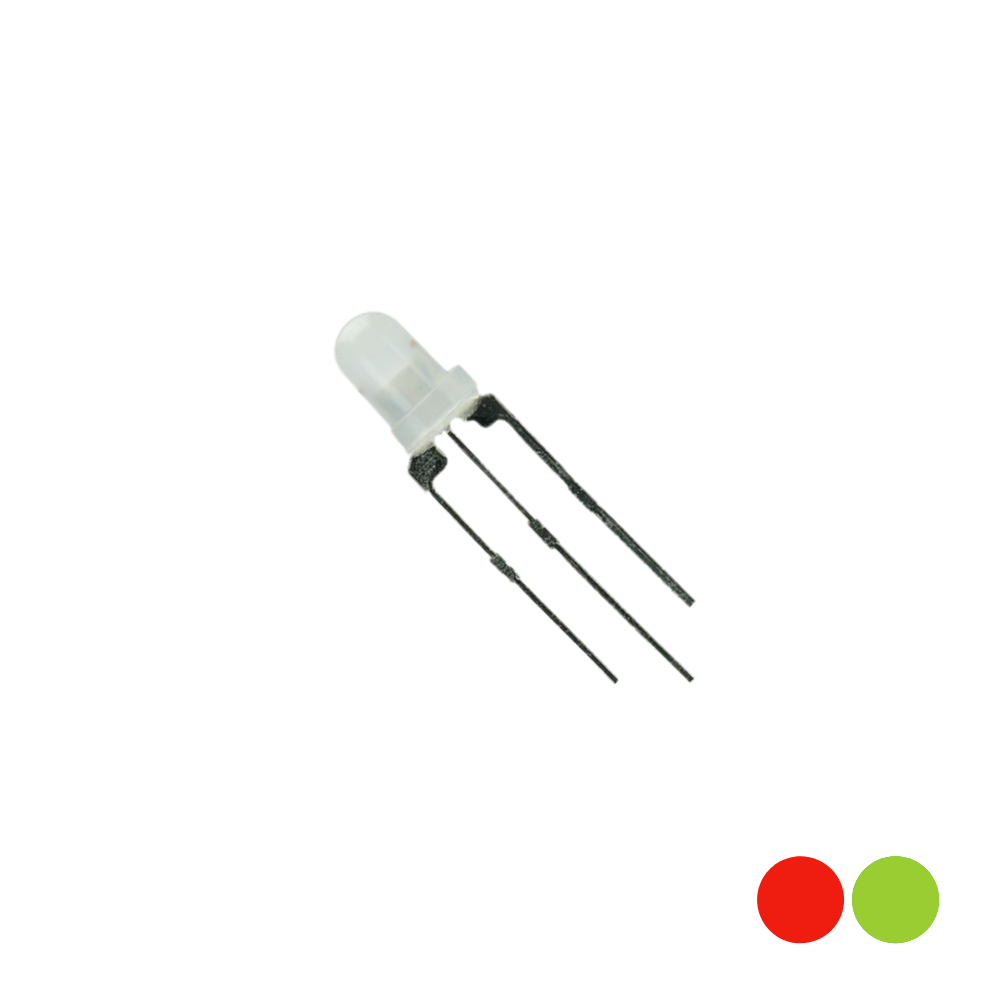

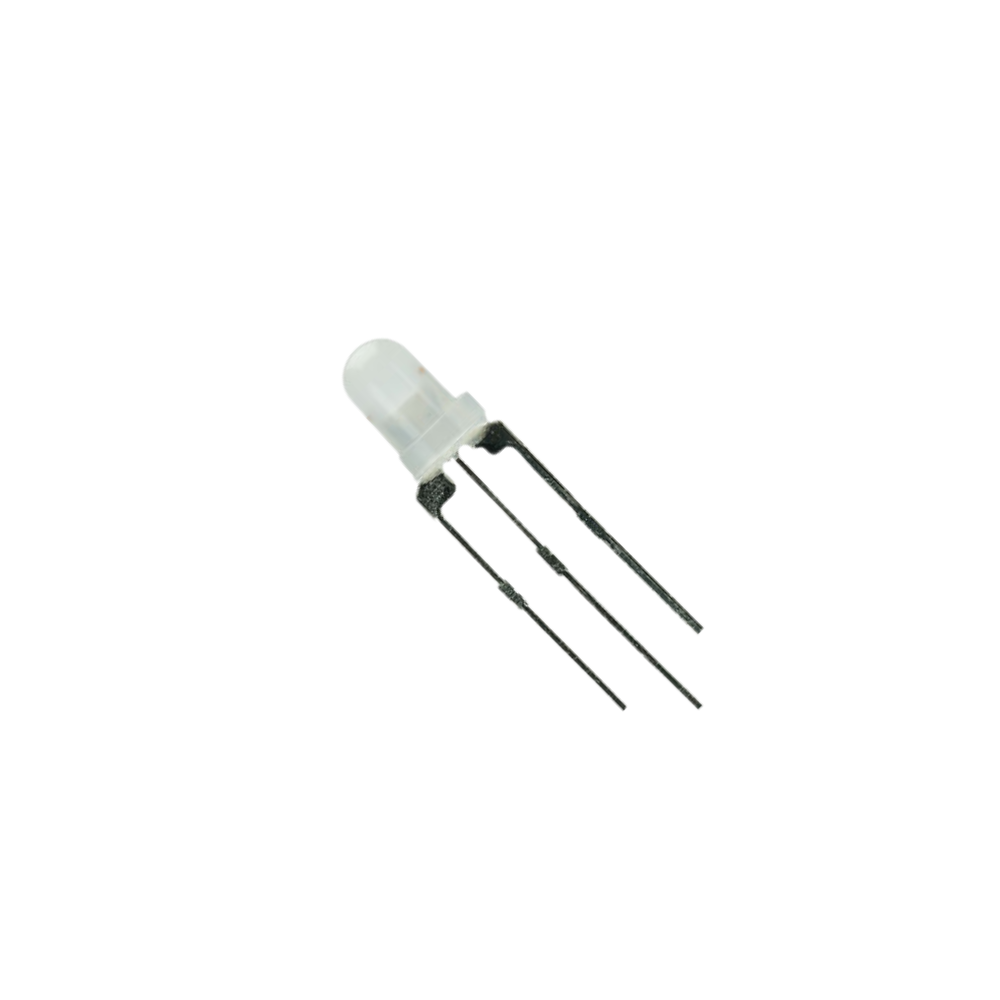

3mm Red/Green Bi-Colour (Common Cathode) 3 Pin LED Small Legs

3mm Red/Green Bi-Colour (Common Cathode) 3 Pin LED Small Legs

SKU Code: # THL76

Sale Sold out
Shipping calculated at checkout.

In stock

View full details

Description

A small red and green bi-colour 3mm light-emitting diode with a common cathode that produces consistent light and consumes little power, contained in a milky white packaging. It is suitable for PCB or panel mounting. In a shared cathode design, diodes are linked. The common cathode is the centre leg, and it is the place where a resistor should be installed for the protection of the LED.

Pin Configuration

Pin Name Description
Anode Positive terminal of Red LED(the big pin of the LED )
Cathode Common negative terminal of LED(biggest pin of the LED)
Anode Positive terminal of Green LED(smallest pin of the LED )

Specifications
Red Forward Voltage 2.0V
Green Forward Voltage
 3.0V
Max DC Forward Current 20mA
Colours Red/Green
Diameter 3mm
