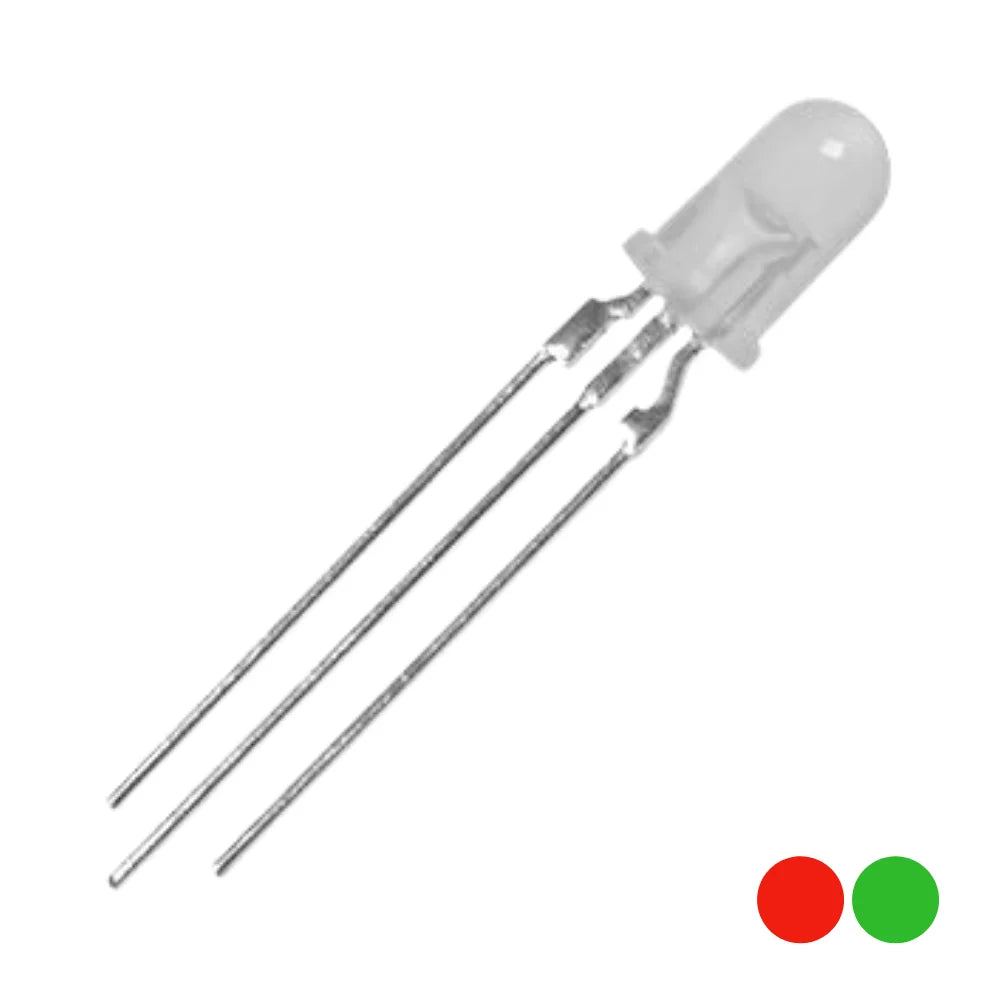

5mm Red/Green Bi-Colour (Common Cathode) 3 Pin LED White Diffused Lens

5mm Red/Green Bi-Colour (Common Cathode) 3 Pin LED White Diffused Lens

SKU Code: # THL21

Sale Sold out
Shipping calculated at checkout.

In stock

View full details

Description

A small Red and Green bi-color 5mm light-emitting diode with a common cathode that produces consistent light and consumes little power, contained in a milky white packaging. It is suitable for PCB or panel mounting. In a shared cathode design, diodes are linked. The common cathode is the centre leg, and it is the place where a resistor should be installed for the protection of the LED.

Pin Configuration

Pin Name

Description

Anode

The positive terminal of Red LED(the big pin of the LED )

Cathode

A common negative terminal of LED(biggest pin of the LED)

Anode

The positive terminal of Green LED(smallest pin of the LED )
     Specifications

    Colour

    Red-Green

    Forward Voltage

    1.8~2.6V

    Forward Current

    30mA

    Mounting Type

    Through Hole

    Lens Colour

    White Diffused

    No. of Pins

    3

    Diameter

    5mm
