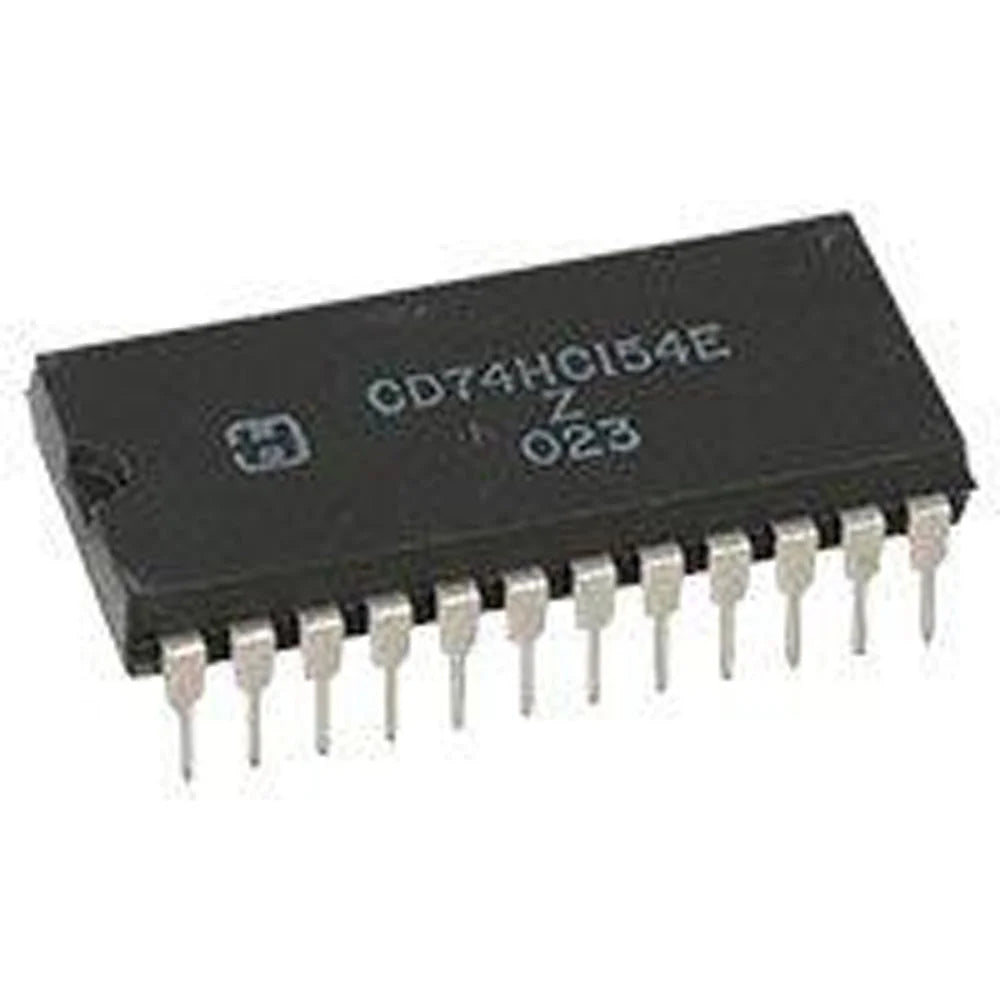

74HC154 4-to-16 line decoder/multiplexer DIP-24 Package

74HC154 4-to-16 line decoder/multiplexer DIP-24 Package

Rs. 132.00
Rs. 132.00

The ’HC154 and ’HCT154 are 4- to 16-line decoders/demultiplexers with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by...

SKU: DL18
Vendor: electronifyindia
Type: Digital Logic ICs

Availability: Low stock

delivery-truck Estimated Delivery Date : 5 - 9 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Guaranteed safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa
View full details

Description

The ’HC154 and ’HCT154 are 4- to 16-line decoders/demultiplexers with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0 to Y15, and using one enable as the data input while holding the other enable low.

Specifications
Operating Supply Range 2.0 to 6.0V
Package DIP-24
DC Output Source or Sink Current per Output Pin, IO ±25mA
DC VCC or Ground Current, ICC or IGND ±50mA
