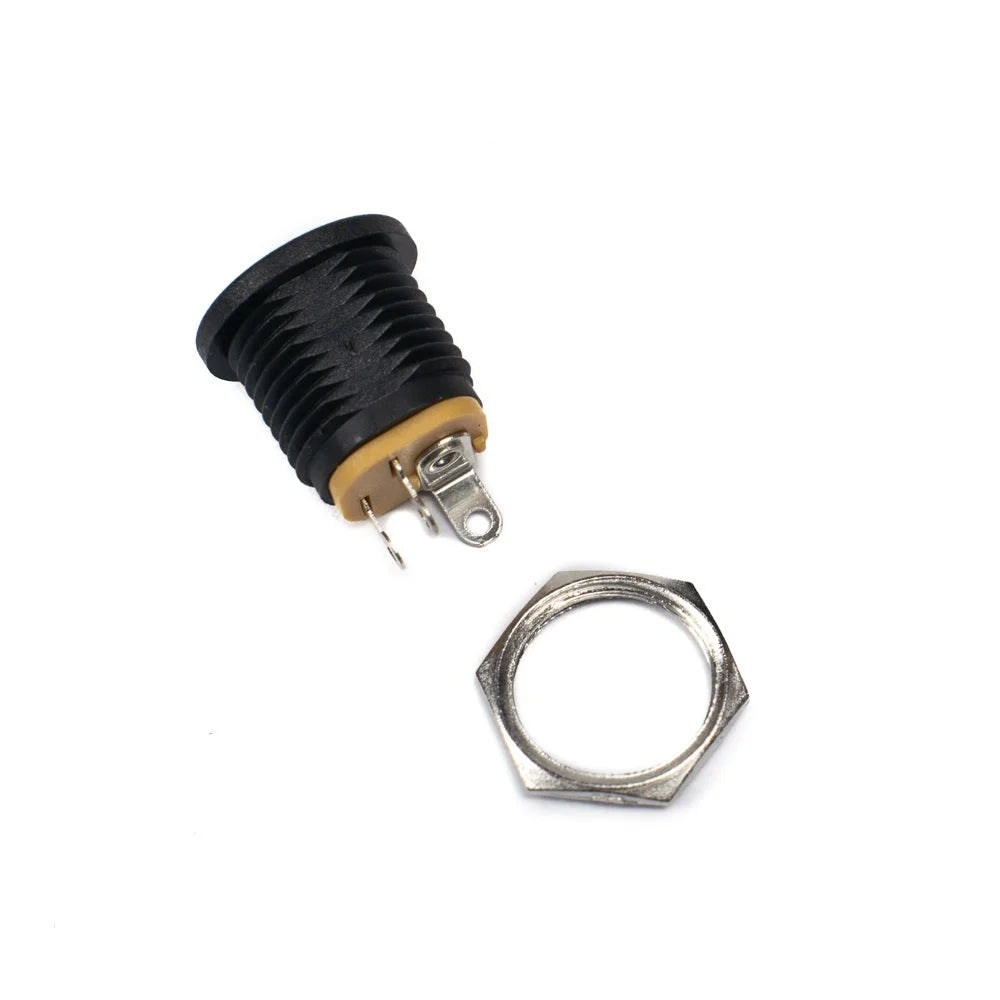

Female DC Power Jack Socket 2.1mm x 5.5mm Panel Mount

Female DC Power Jack Socket 2.1mm x 5.5mm Panel Mount

Rs. 10.00
Rs. 10.00

It's a Female DC Power Jack Socket 2.1 x 5.5mm Panel Mount. The voltage for the power jack is 500v AC and the rated voltage and current are respectively 30v dc and 1A.  The Female...

SKU: SW27
Vendor: SW
Type: Connectors

Availability: In stock

delivery-truck Estimated Delivery Date : 6 - 10 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Guaranteed safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa
View full details

Description

It's a Female DC Power Jack Socket 2.1 x 5.5mm Panel Mount. The voltage for the power jack is 500v AC and the rated voltage and current are respectively 30v dc and 1A.

The Female DC Power Jack Socket 2.1mm x 5.5mm (Panel Mount) is a widely used connector for power supply interfaces in electronic devices. Here’s a detailed description:

Key Features:

  1. Type: Female DC Power Jack (Socket)
  2. Dimensions:
    • Inner Pin Diameter: 2.1mm
    • Outer Barrel Diameter: 5.5mm
  3. Mounting Type: Panel mount with threaded body and nut, allowing for easy and secure attachment to enclosures or panels.
  4. Contact Configuration:
    • Positive terminal (inner pin)
    • Negative terminal (outer sleeve)
    • Sometimes a third terminal for a switch or ground connection.
Specifications
Contact Resistance ≤0.05 Ohm
Insulation Resistance ≥100M Ohm
Voltage 500V AC
Rated Load 30V DC, 1.0A
Insertion Force 3N-20N
