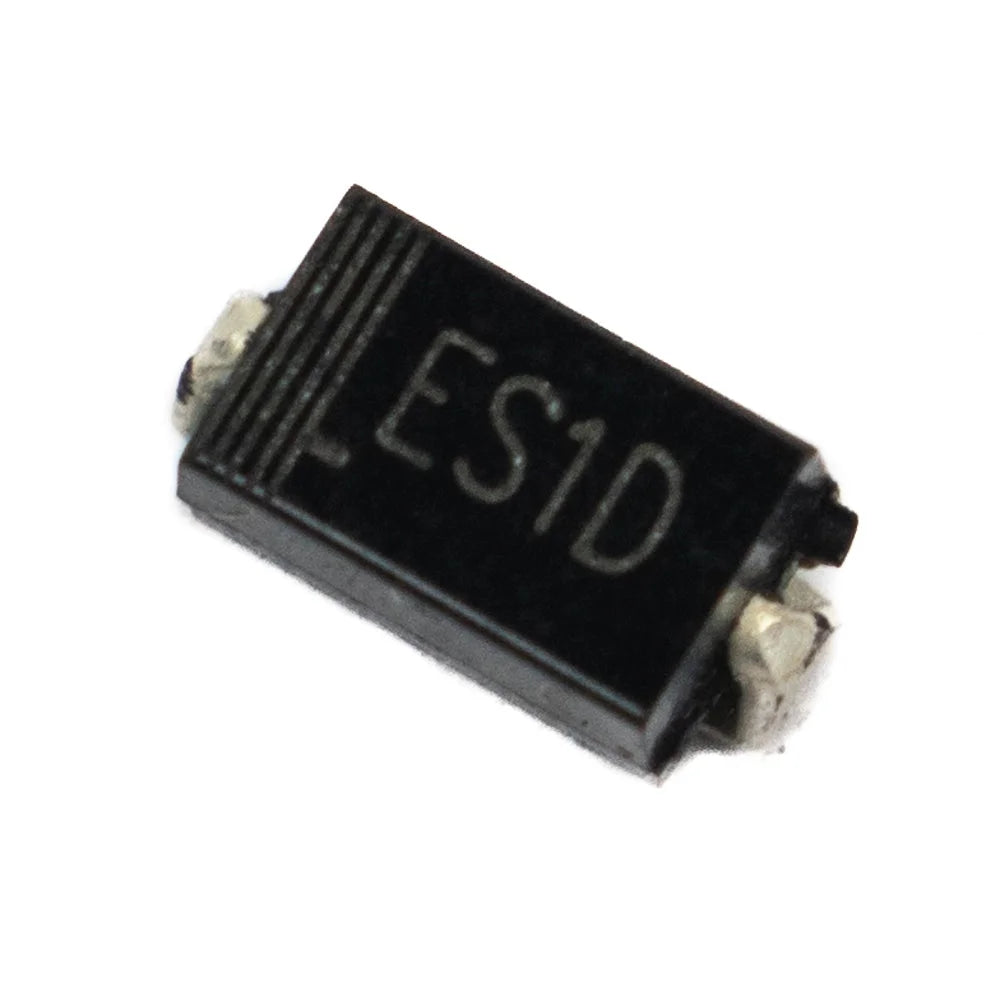

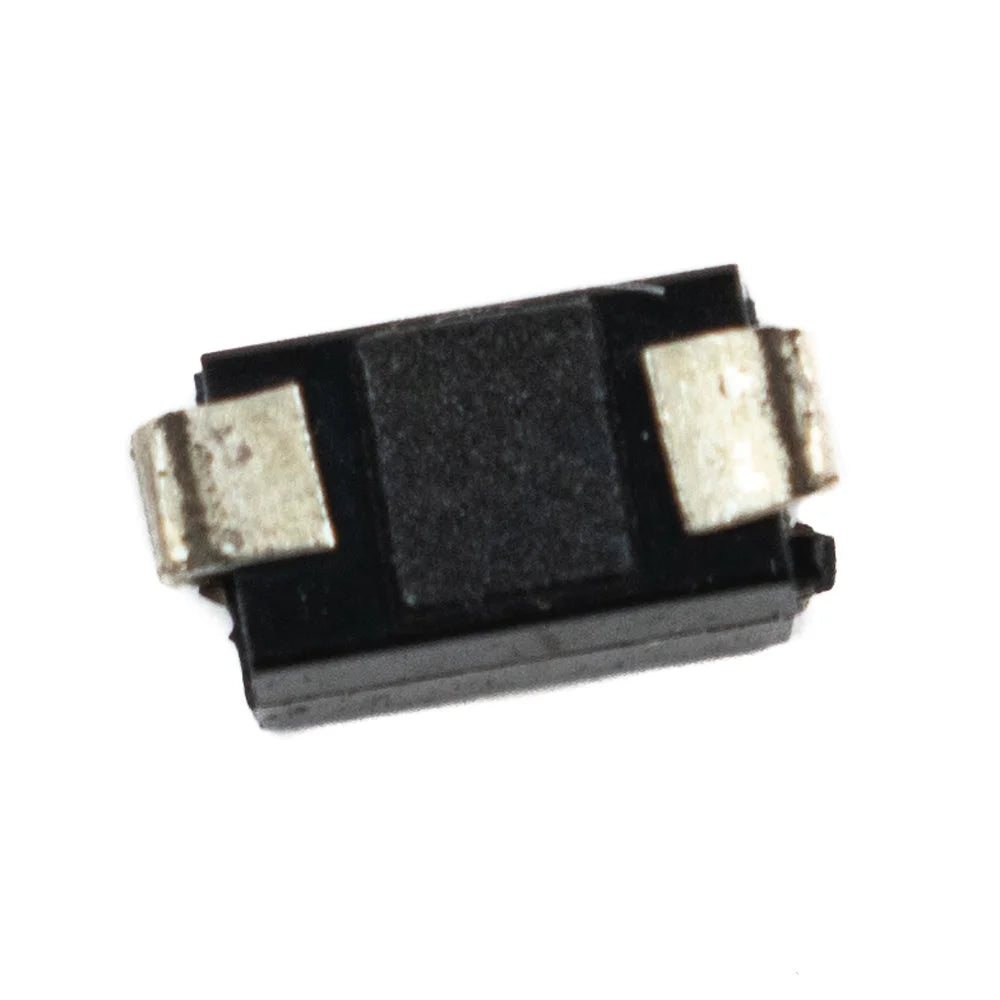

ES1D - Ultra Fast Recovery Diode 1A SMA DO-214AC

ES1D - Ultra Fast Recovery Diode 1A SMA DO-214AC

SKU Code: # EE32

Sale Sold out
Shipping calculated at checkout.

In stock

View full details

Description

The ES1D is an SMA (DO-214AC) surface mount fast rectifier diode. For use in high-frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.

Features

  • For surface-mounted applications.
  • Low profile package.
  • Glass passivated chip junction.
  • Superfast reverse recovery time.
Specifications
Model ES1D
Package SMA DO-214AC
Mounting Surface Mount
Max. Repetitive Reverse Voltage 200V
Max. RMS Voltage 140V
Average Rectified Current 1A
Forward Voltage 1.7V
Reverse Current 5µA
Reverse Recovery Time 35ns
Max. Forward surge Current 30A
Operating Junction Temperature -55°C to 150°C
