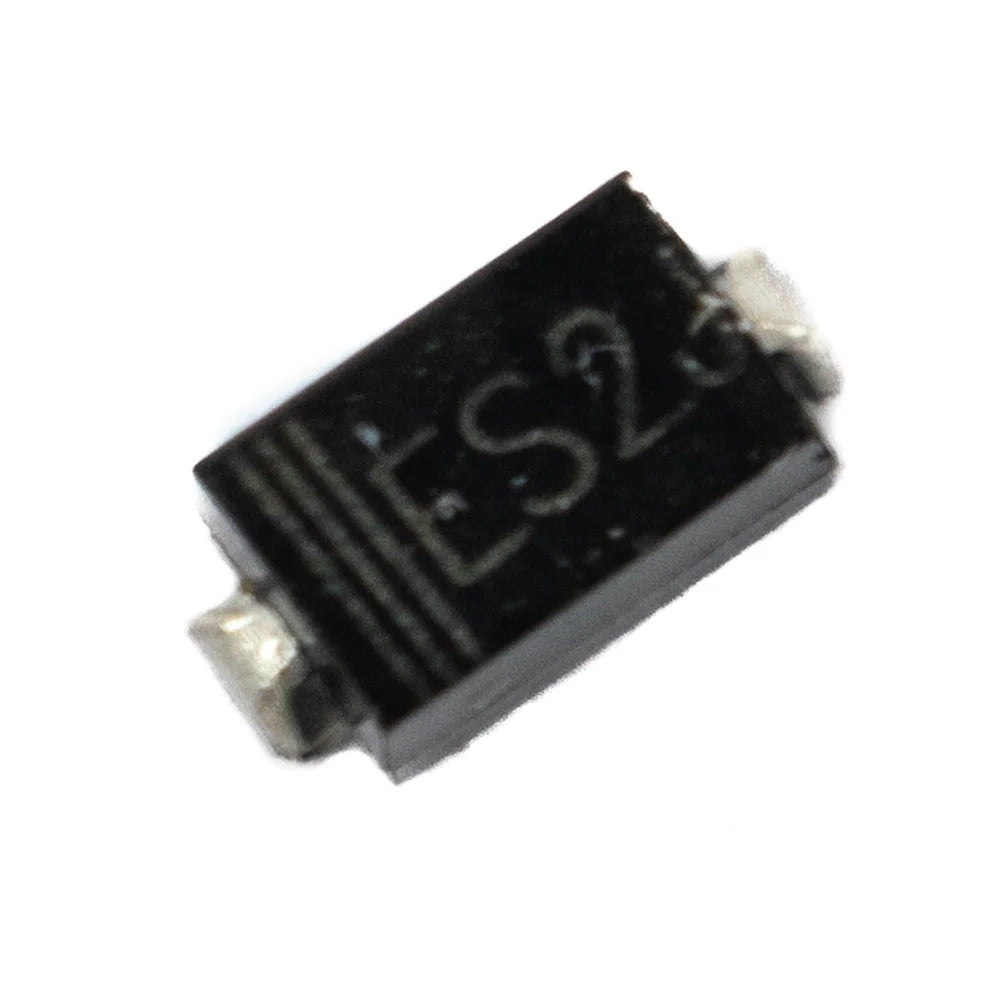

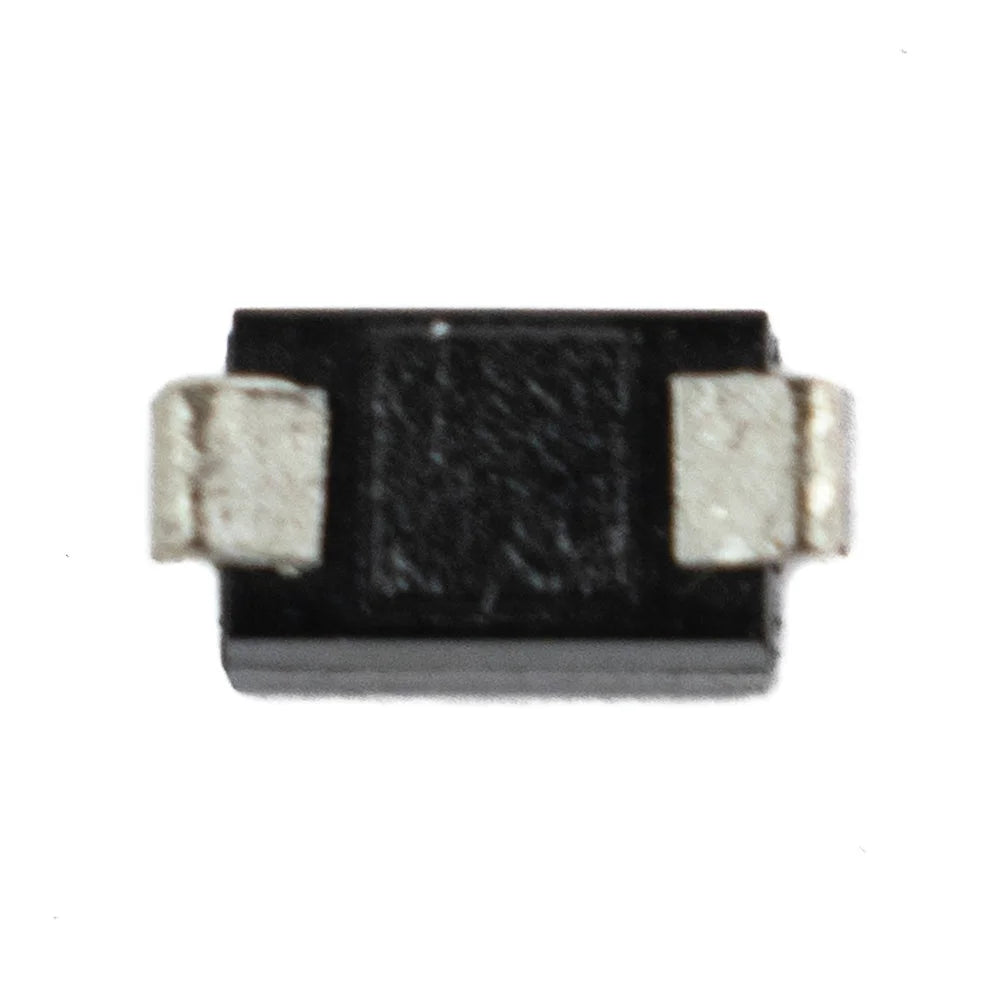

The ES2J is an SMA (DO-214AC) surface mount fast rectifier diode. For maximum efficiency, this device has a glass passivated junction, low profile packaging, and a quick recovery time.
Features
- For surface-mounted
Applications
.Specification
ss| Model | ES2J |
| Package | SMA DO-214AC |
| Mounting | Surface Mount |
| Max. Repetitive Reverse Voltage | 600V |
| Average Rectified Current | 2A |
| Forward Voltage | 1.68V |
| Reverse Current | 5µA |
| Reverse Recovery Time | 35ns |
| Max. Forward surge Current | 50A |
| Operating Junction Temperature | -55°C to 150°C |
