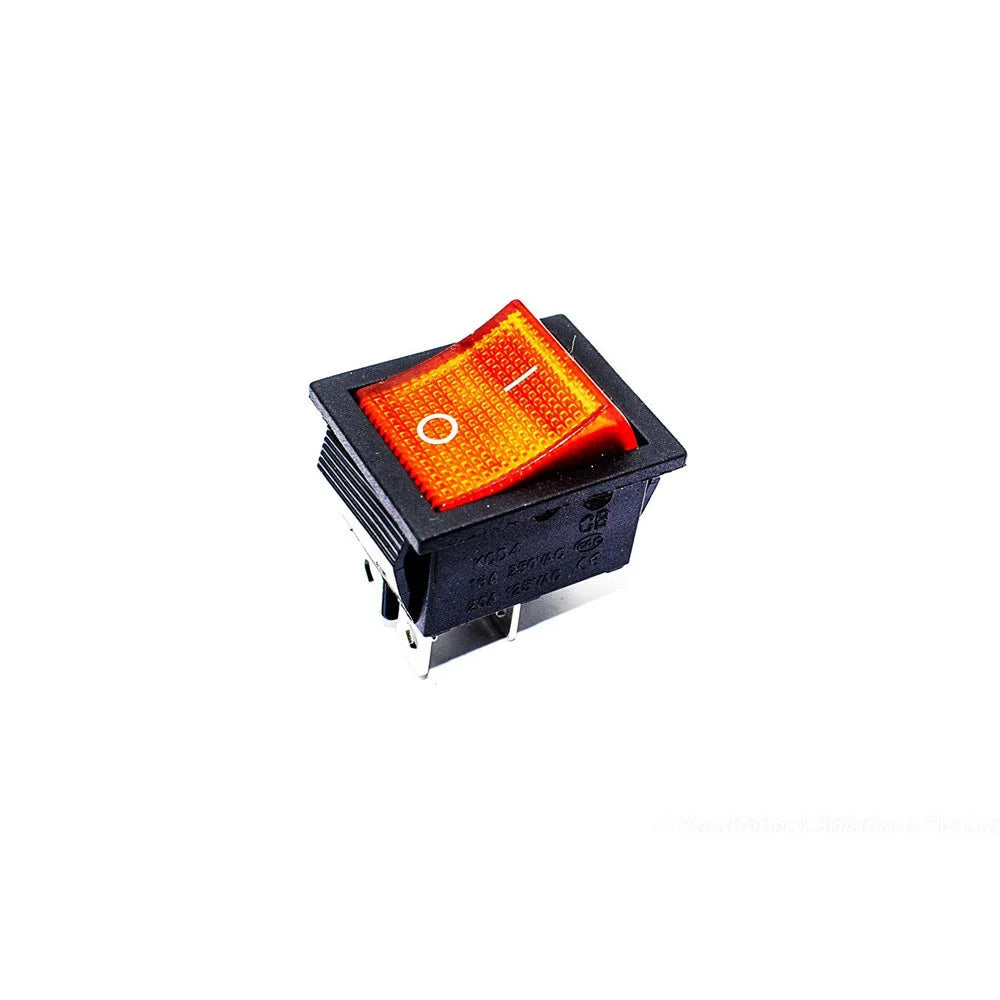

![KCD4 16A 250V DPST ON-OFF Rocker Switch with Red Light](http://www.electronifyindia.com/cdn/shop/files/KK226AA.webp?v=1710410881&width=1445)

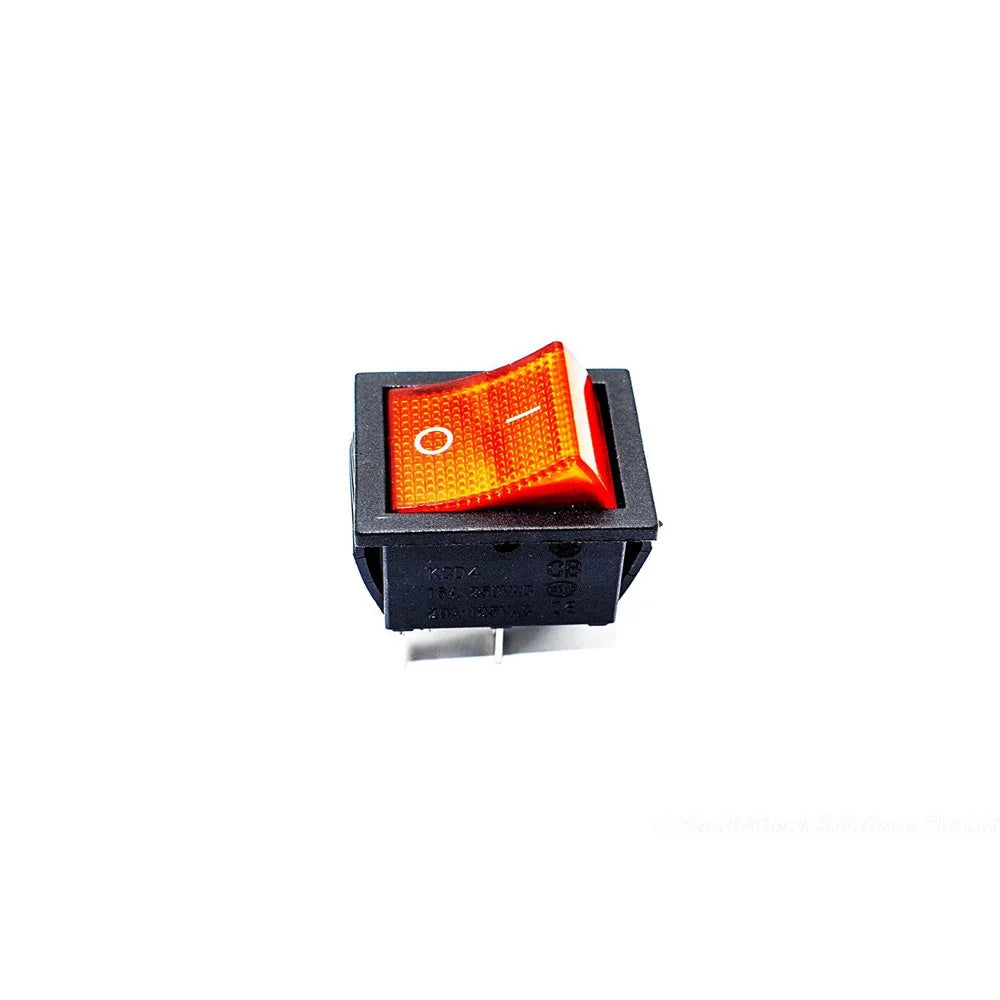

![KCD4 16A 250V DPST ON-OFF Rocker Switch with Red Light](http://www.electronifyindia.com/cdn/shop/files/KK226BB.webp?v=1710410882&width=1445)

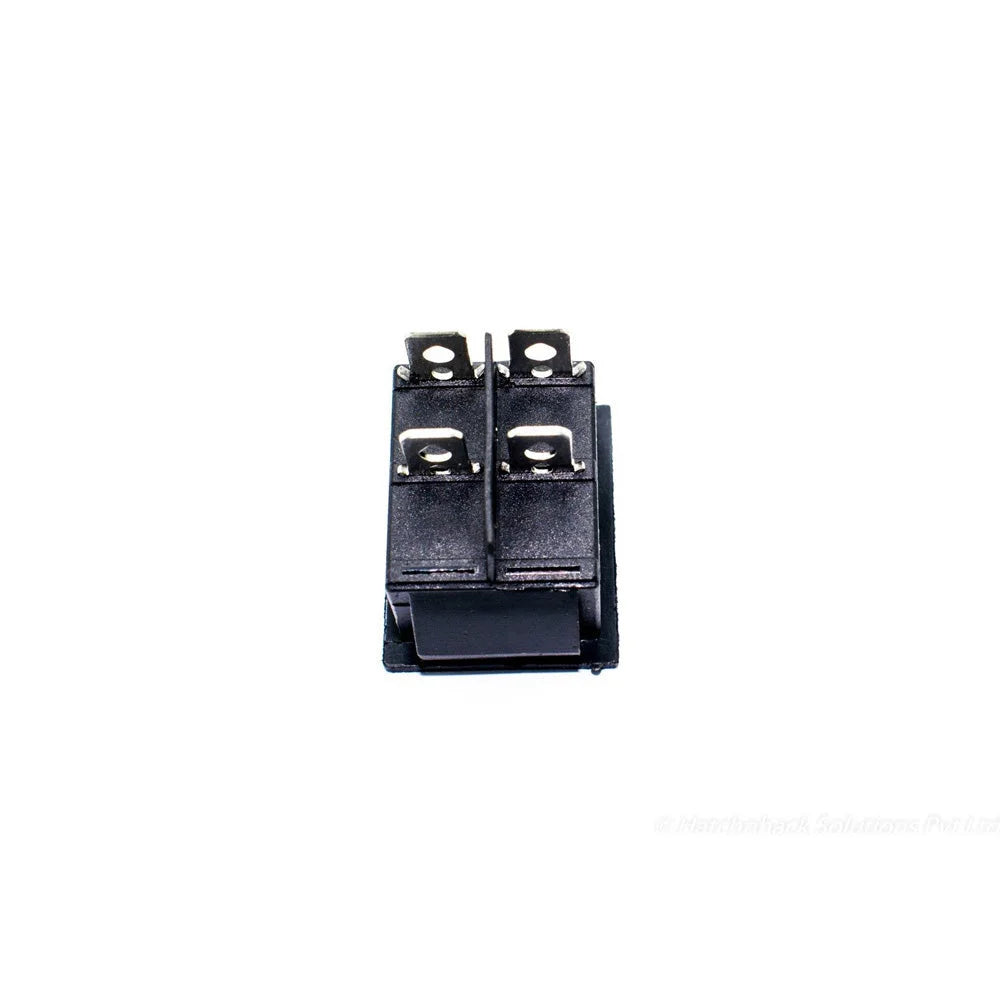

![KCD4 16A 250V DPST ON-OFF Rocker Switch with Red Light](http://www.electronifyindia.com/cdn/shop/files/KK226CC.webp?v=1710410883&width=1445)

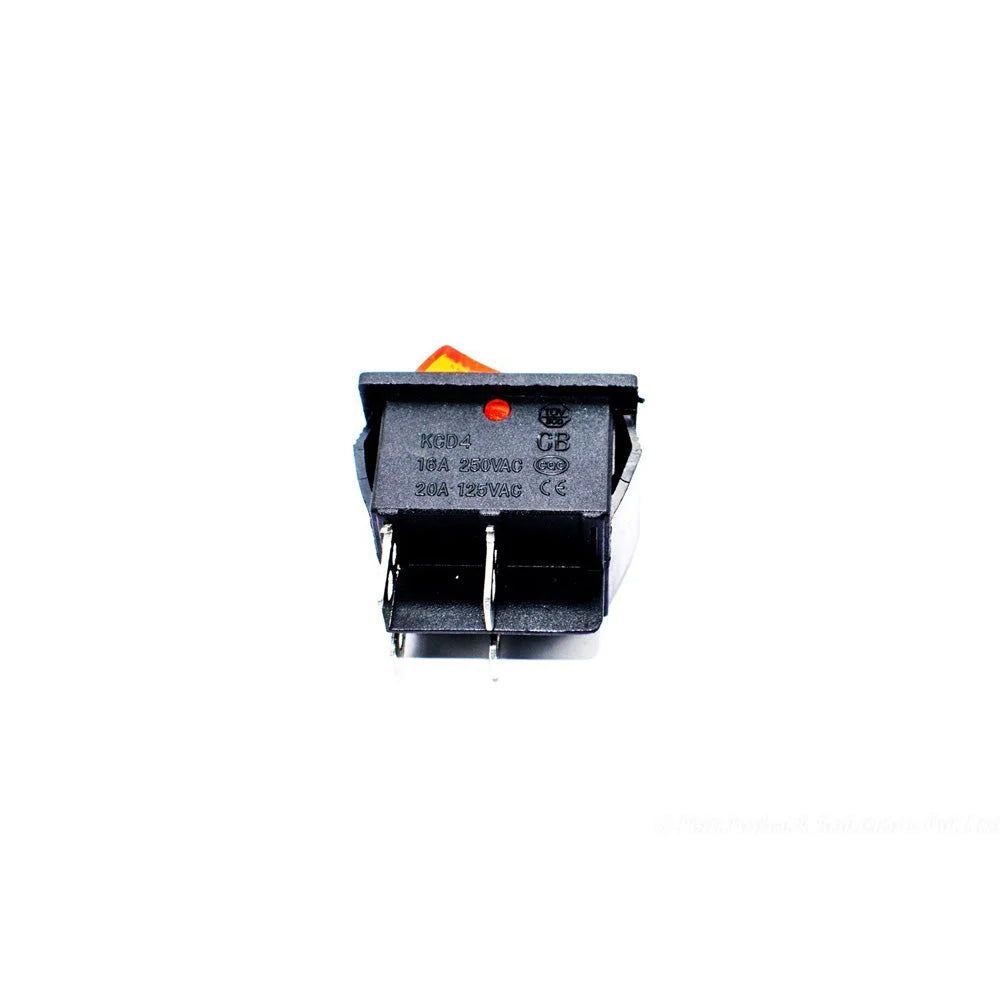

![KCD4 16A 250V DPST ON-OFF Rocker Switch with Red Light](http://www.electronifyindia.com/cdn/shop/files/KK226DD.webp?v=1710410884&width=1445)
Description
DPST (Double Pole Single Throw) Rocker switch is the most basic power control switch. DPST rocker switch requires no nut-bolts or screw for its installation. This switch also features a Red LED light in it. There are two positions of this switch i.e, ON and OFF which are also marked on it as I and O respectively which helps users to detect its position. This switch is rated for 16A 250V AC and 20A 125V AC. This switch has a long switching life of around 50000 to 100000.
Specifications
Voltage and Current Rating | Max 16A at 250VAC |
Switching Mode | ON-OFF |
Structure | DPST |
Colour | Red |
Number of Pins | 4 |
Dimension (LxWxH) | 33 x 25 x 30 mm |
