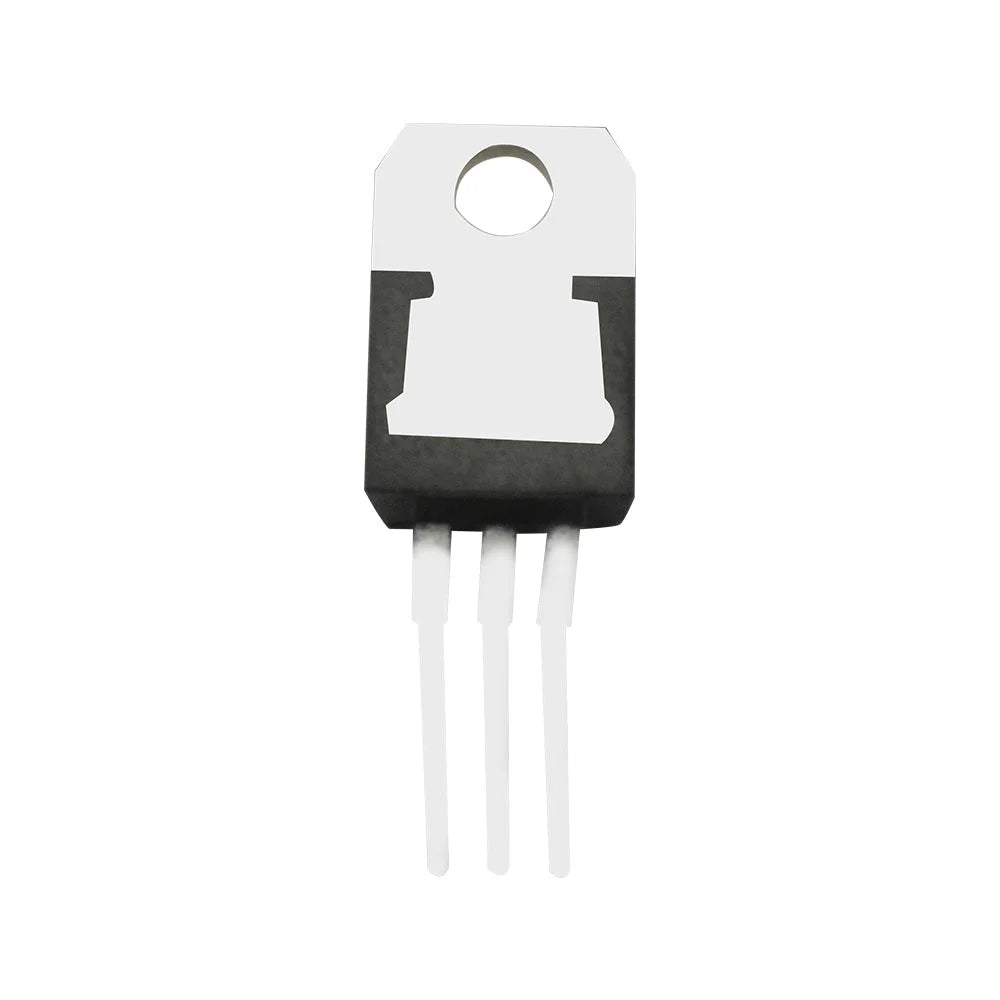

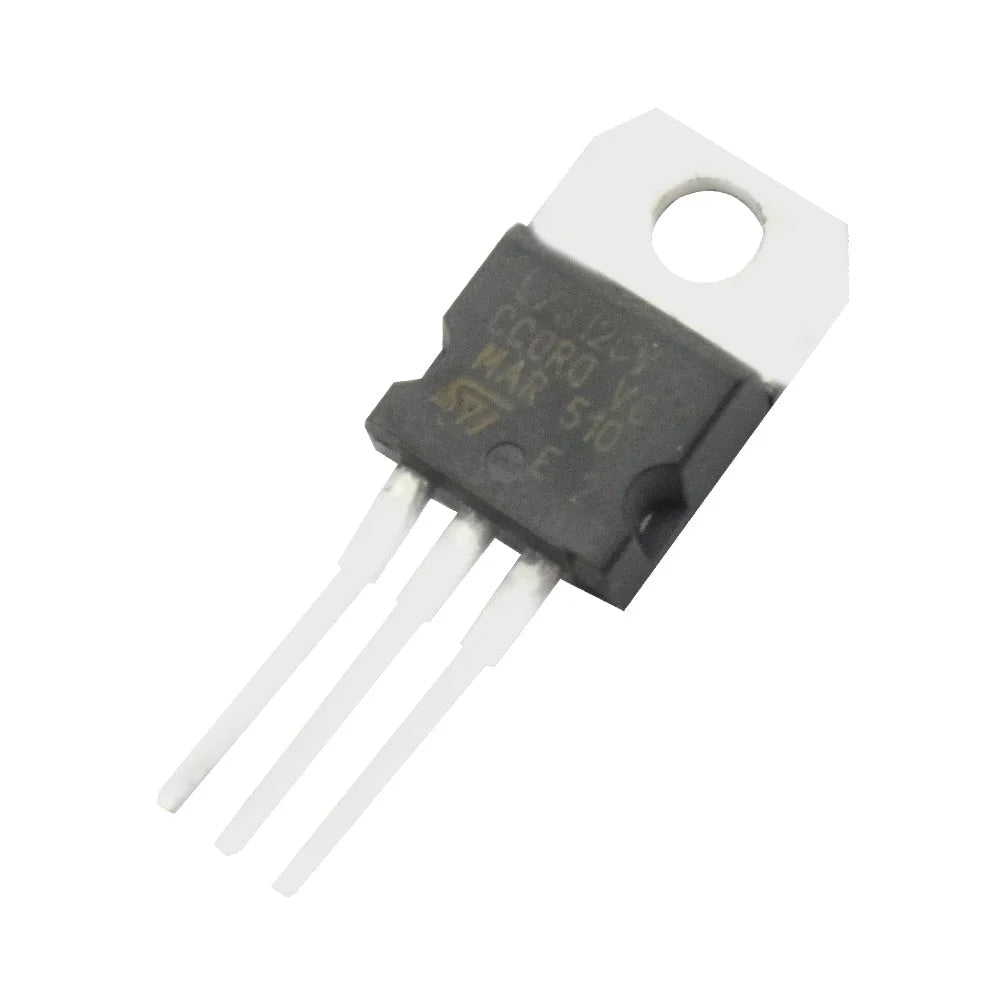

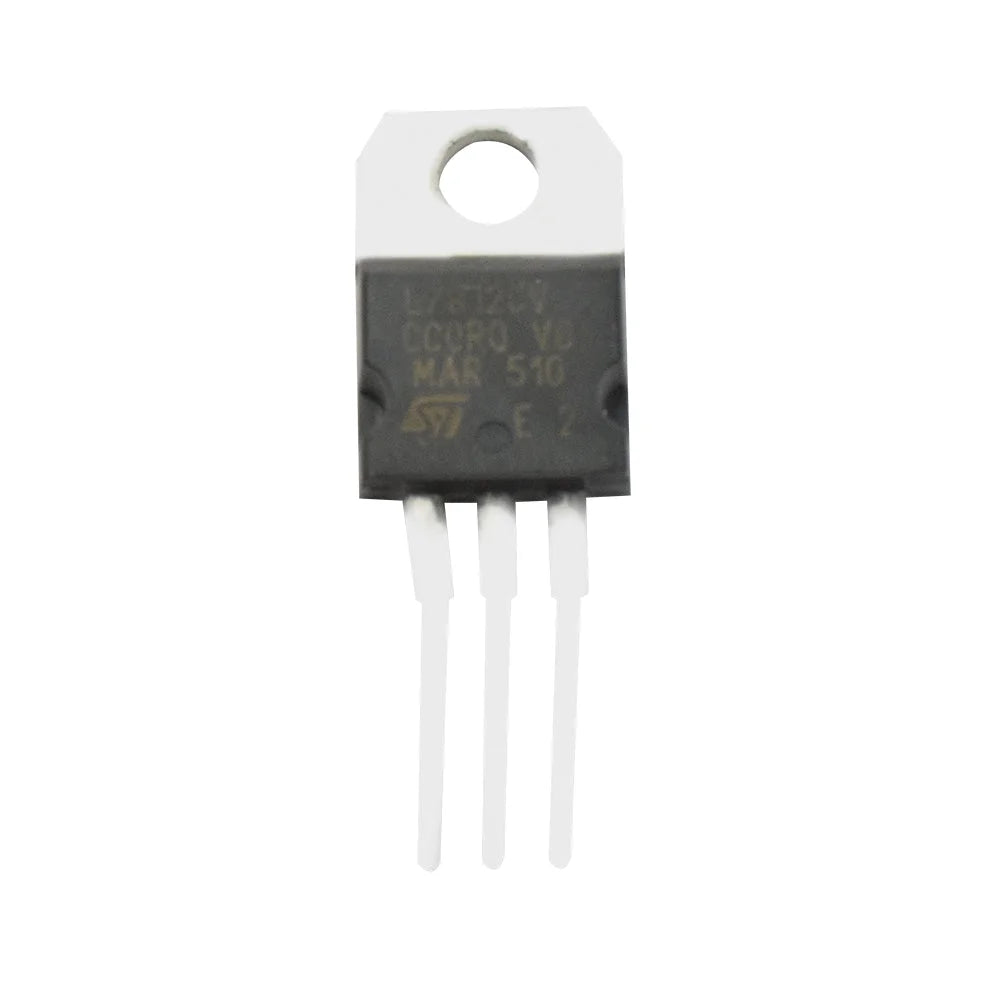

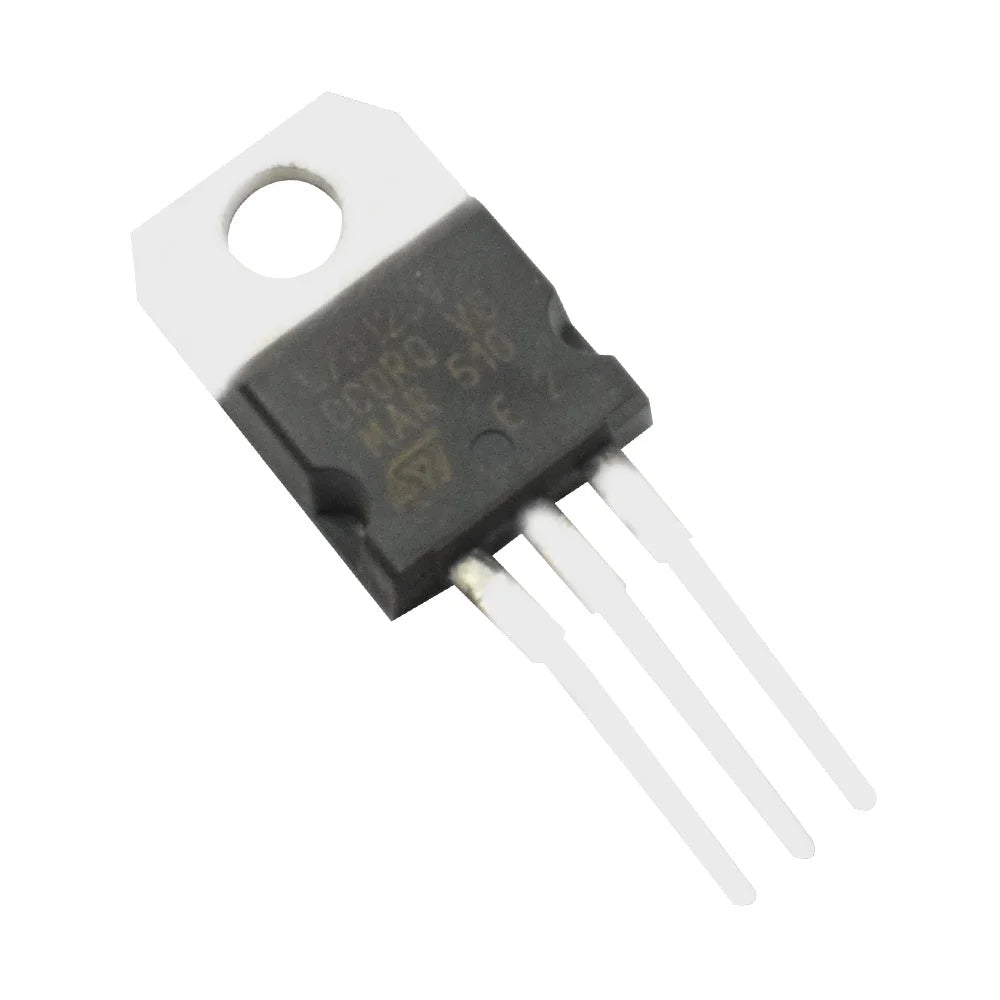

The L7812CV series of three-terminal positive regulators is available in TO-220, These regulators can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Features
:- LM7812 is a positive voltage regulator that outputs +12 volts
- The LM7812 is a three-pin IC
- Output Current up to 1.5A
- Thermal Overload Protection
- Short Circuit Protection
- Available in TO-220 package
- Thermal Resistance Junction-Cases (TO-220): °C/W
- Thermal Resistance Junction-Air (TO-220): °C/W
- Operating Temperature Range: -40° - 125° C
Specification
s| Model | L7812CV |
| Product Type | Linear Voltage Regulator |
| Brand | ST microelectronics |
| Number of pins | 3 |
| Input Voltage Range | 14V to 30V |
| Maximum Output Current | 1.5A |
| Operating Temperature | 0°C to 125°C |
| Package | TO-220 |
| Output Voltage | 12V |
