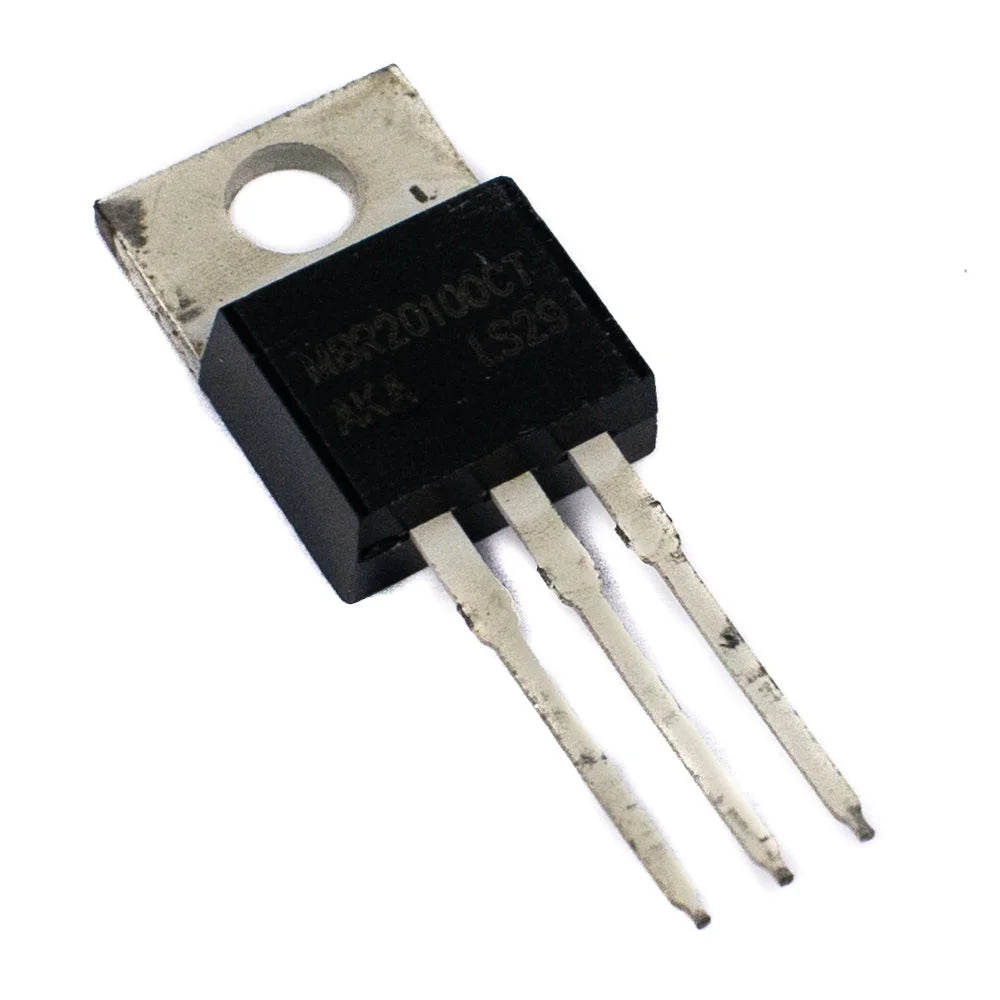

MBR20100CT Schottky Diode Rectifier

MBR20100CT Schottky Diode Rectifier

SKU Code: # MM214

Sale Sold out
Shipping calculated at checkout.

In stock

View full details

Description

The MBR20100CT is a Schottky Diode Rectifier used in low voltage/high-frequency inverters, freewheeling, and polarity protection applications. The MBR20100 is a TO-220 package dual Schottky diode with a common cathode for high current applications. This can drive up to 20A through each diode with a peak reverse voltage of 100V because each diode has a forward current of 10A. The MBR20100 is a dual rectifier diode commonly used in converter circuits. It can be used in voltage clamping protection and filter circuits.

Features

  • Metal Silicon Junction
  • Majority Carrier Conduction
  • Low Power Loss
  • High-Efficiency
  • High Current Capability
  • Low Forward Voltage Drop
  • High Surge Capability
  • Guarding for Overvoltage Protection
Specifications
Part Number MBR20100CT
Package TO-220
Peak Reverse Voltage 100V
Forward Voltage drop 0.9V (per leg)
Reverse Current 6mA
Non-Repetitive Peak Current 150A
Rate of charge (dv/dt) 10k V/us
Operating Temperature 65 to 150° C
