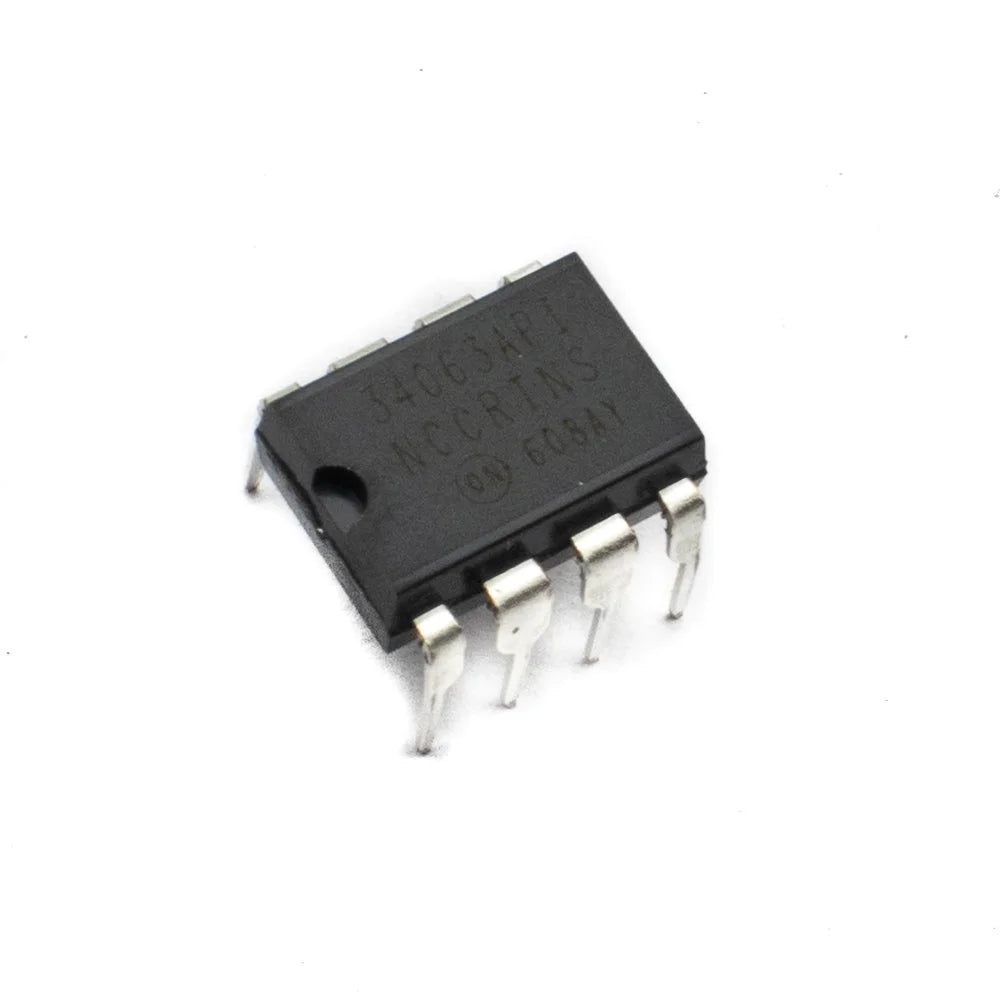

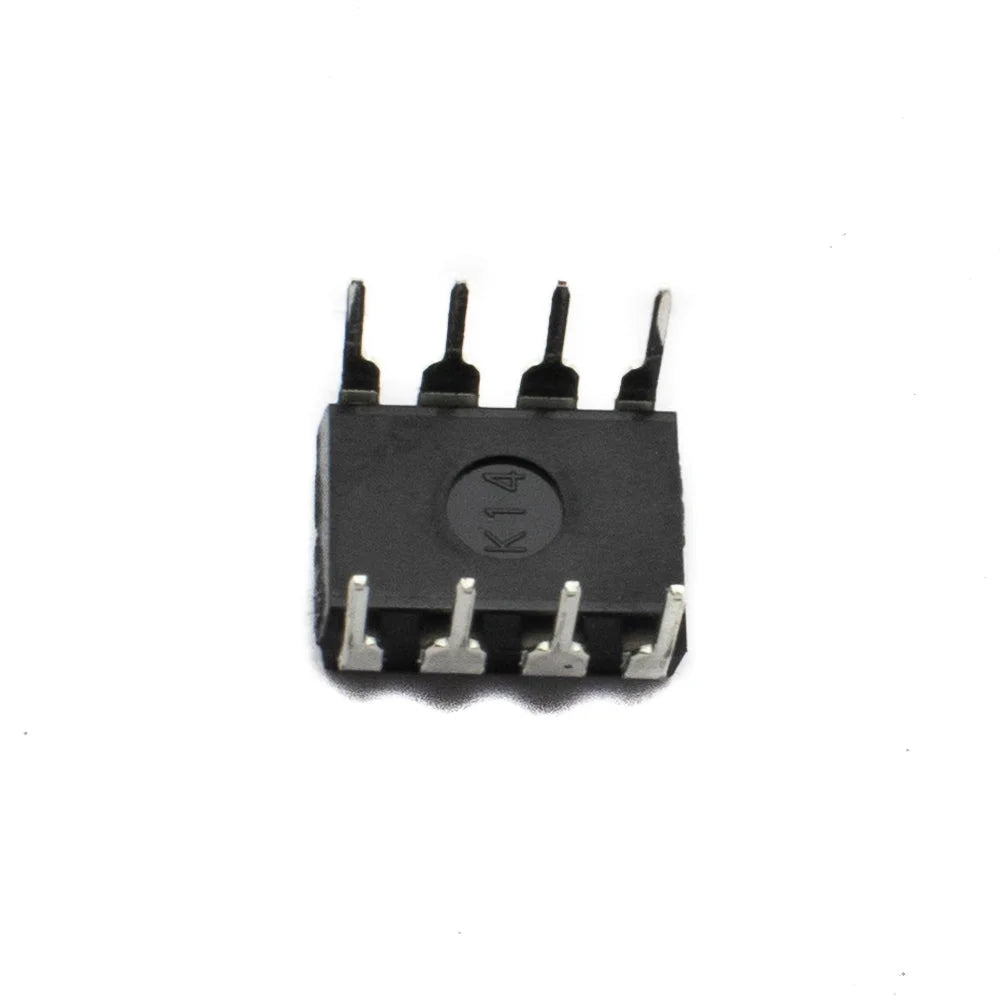

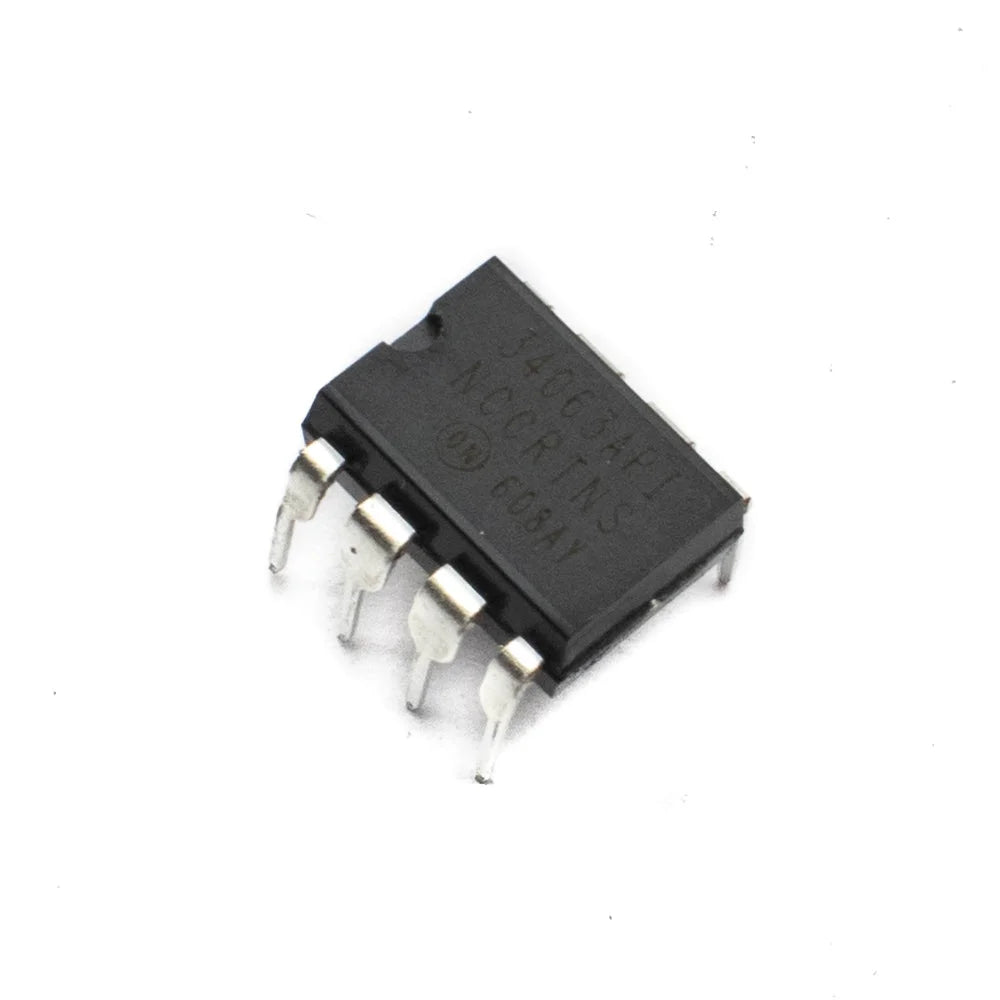

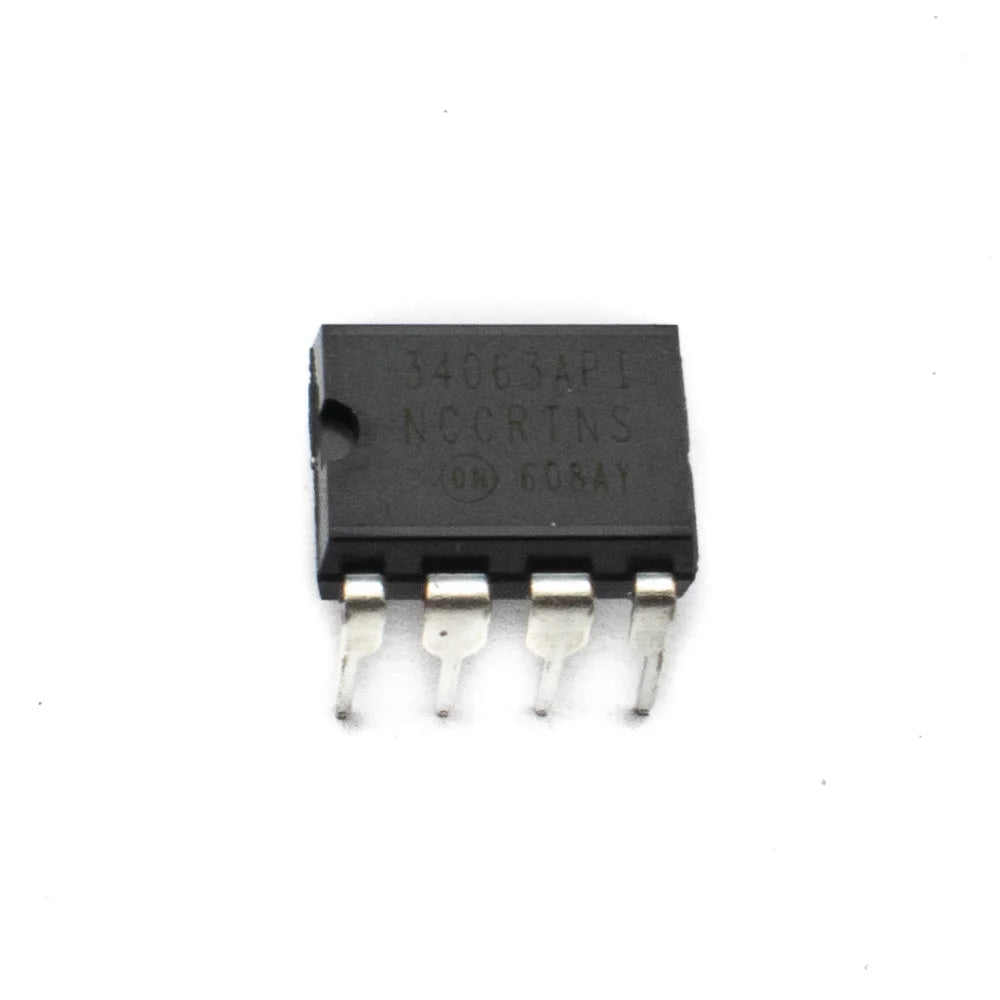

The MC34063A Series is a monolithic control circuit that includes all of the essential functions for DC-to-DC converters. An internal temperature compensated reference, comparator, regulated duty cycle oscillator with an active current limit circuit, driver, and high current output switch are all included in these devices. This series was created with the goal of using as few external components as possible in StepDown, StepUp, and VoltageInverting
Features
Applications
Requiring Unique Site and Control Change Requirements; AECˆ€™Q100 Qualified and PPAP CapableSpecification
s|
Power Supply |
40V DC |
|
Input Voltage Range |
-0.3 to40V DC |
|
Switch Collector Voltage |
40V DC |
|
Switch Emitter Voltage |
40V DC |
|
No. of pins |
8 |
|
Current |
100mA |
|
Switch Current |
1.5A |
|
Power Dissipation |
1.25W |
|
Operating Ambient Temperature Range |
0 to +70 °C |
|
Storage Temperature Range |
ˆ€™65 to +150 °C |
|
Dimensions(L*B*H) |
9.4mm x 8.5mm x 3.4mm |
