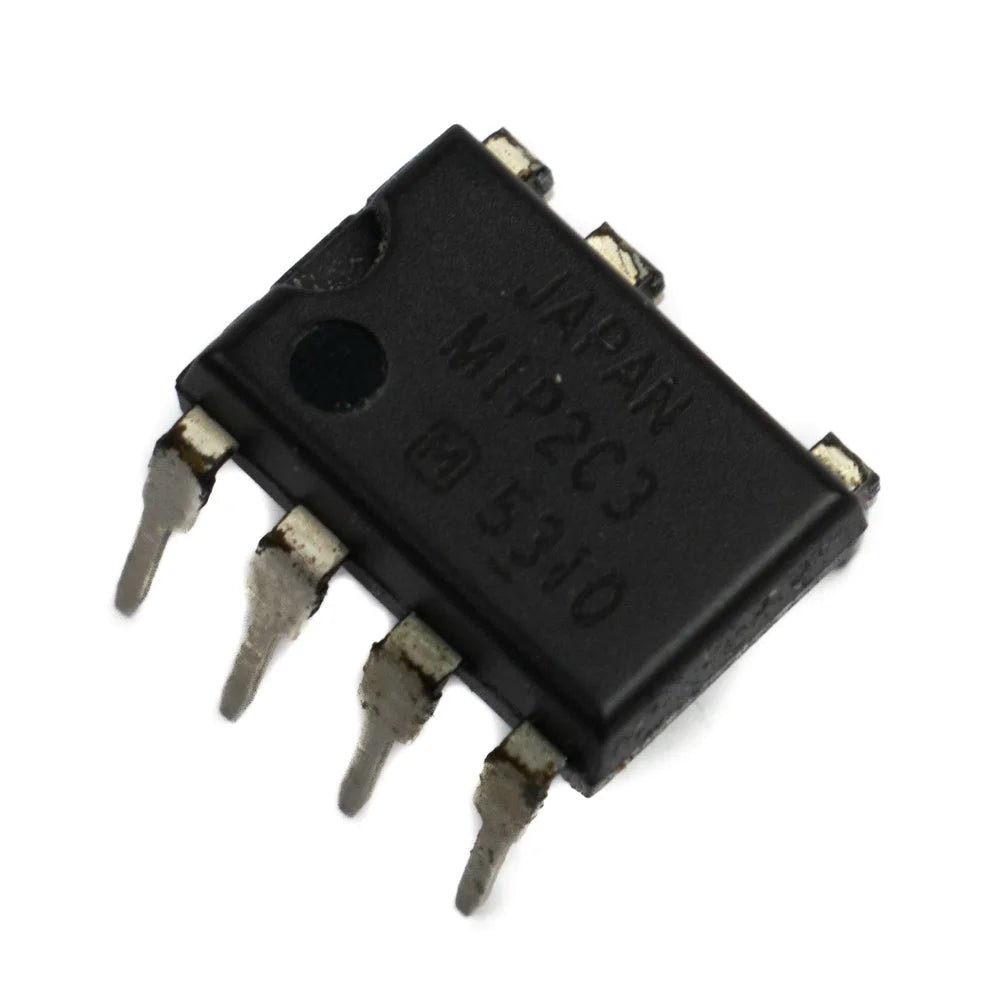

MIP2C3 PANASONIC DIP-7 High-Performance IPD for Battery Chargers

MIP2C3 PANASONIC DIP-7 High-Performance IPD for Battery Chargers

Rs. 71.00
Rs. 0.00 Rs. 71.00

MIP2C2 is a high-performance IPD designed for 7W battery chargers. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. MIP2C2 provides PWM control when a normal...

SKU: MM106
Vendor: electronifyindia
Type: Battery

Availability: In stock

delivery-truck Estimated Delivery Date : 5 - 9 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Guaranteed safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa
View full details

Description

MIP2C2 is a high-performance IPD designed for 7W battery chargers. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. MIP2C2 provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads while also conserving power during standby.
Features
  • The built-in charge protection circuit
  • Built-in overcurrent, overheating, load shorting and overvoltage protection circuits.
  • Significantly reduced power consumption with no load 20mW at 100VAC, 25mW at 240V AC
  • High efficiency with rated load 75% at 100V AC,72% at 240VAC
  • Reduced number of parts (12 less than conventional Panasonic models) With worldwide input and 5.8V/0.7A output
Applications
  • Chargers (for cellular phones, etc. )
Specifications
Model MIP2C
Brand PANASONIC
Maximum Operating Junction Temperature 150°C
VDD reference voltage 5.7V
Maximum Pulse Voltage from V + to V − (50 ms) 50V
Maximum Continuous Voltage from V + to V − 40V
Maximum Input-Output Voltage Differential 40V
Maximum Amplifier Input Voltage (Differential) 25mA
Package DIP 7
Maximum Amplifier Input Voltage (Either Input) 8.5V
