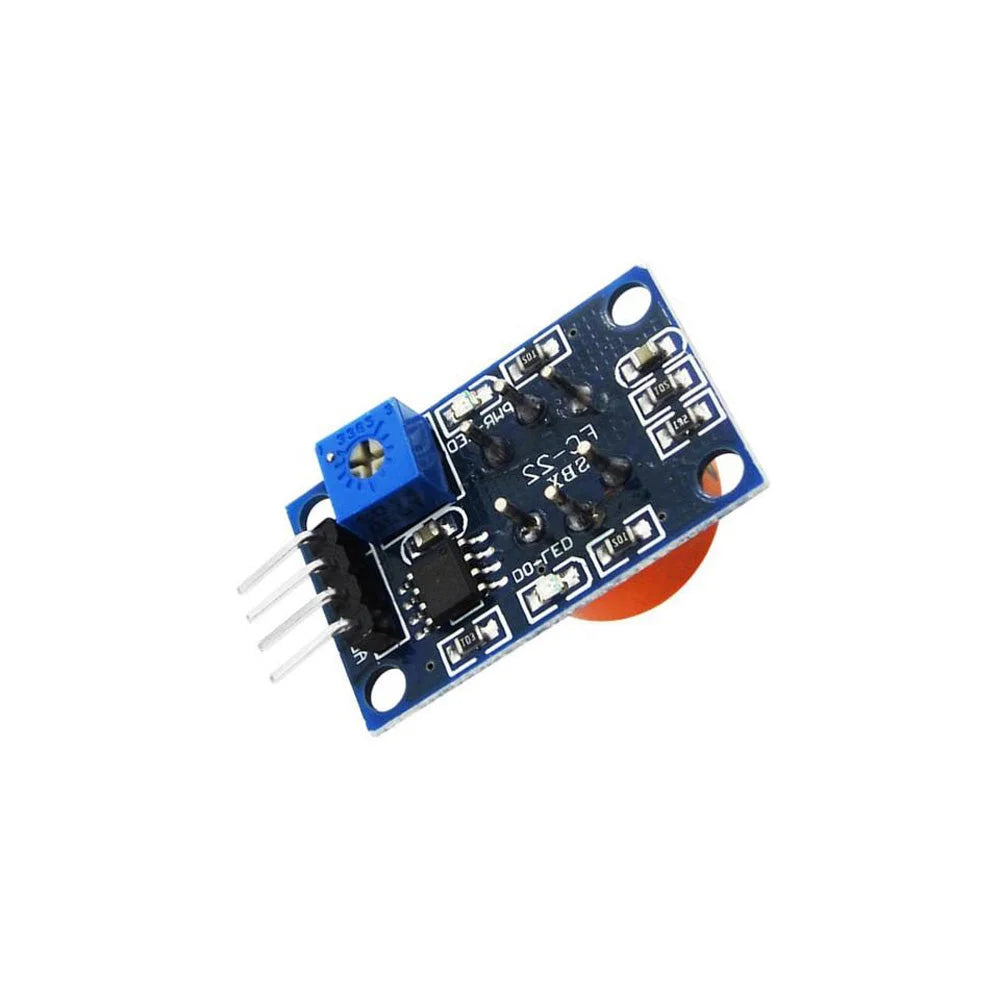

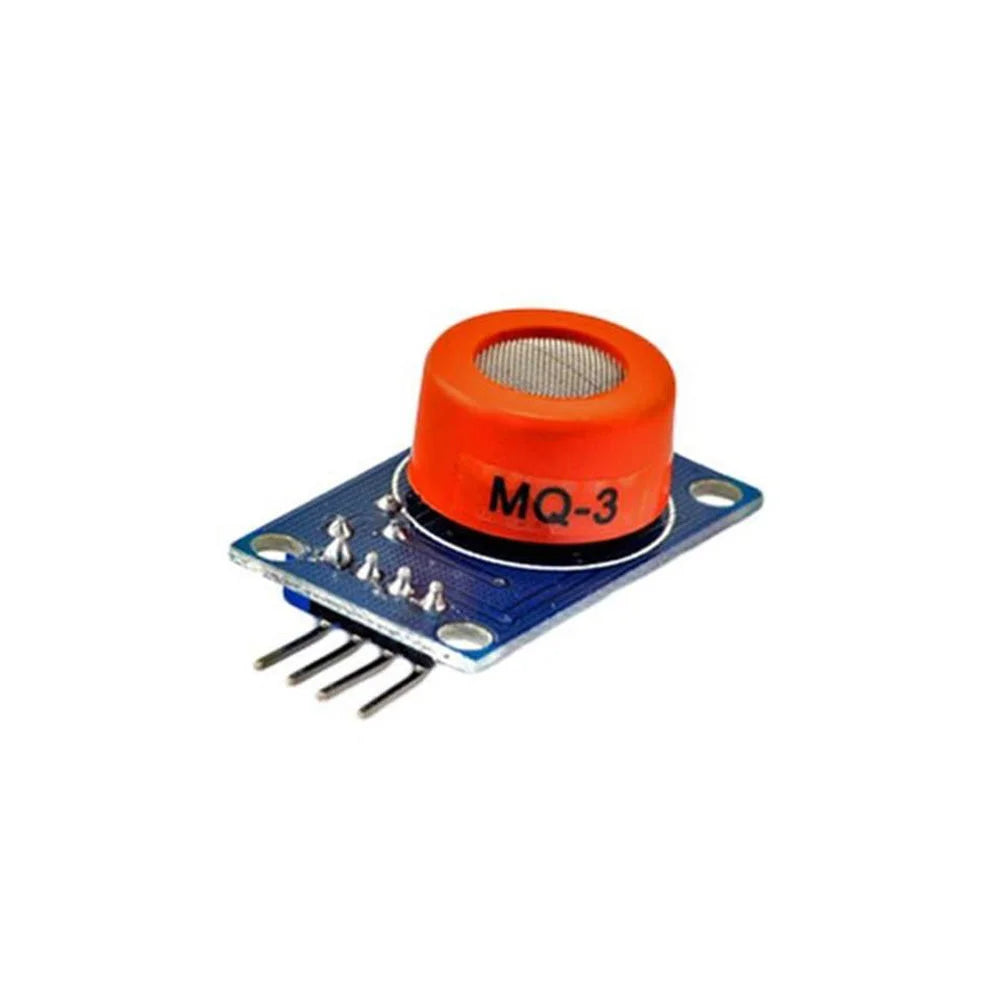

MQ3 Alcohol Sensor Module

MQ3 Alcohol Sensor Module

Rs. 122.00
Rs. 122.00

The MQ-3 module can detect alcohol, benzene, CH4, hexane, LPG, and CO. The sensitive material in the MQ-3 gas sensor is SnO2, which has a reduced conductivity in clear air. When the target alcohol gas...

SKU: MM31
Vendor: electronifyindia
Type: Industrial Components

Availability: In stock

delivery-truck Estimated Delivery Date : 5 - 9 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Guaranteed safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa
View full details

Description

The MQ-3 module can detect alcohol, benzene, CH4, hexane, LPG, and CO. The sensitive material in the MQ-3 gas sensor is SnO2, which has a reduced conductivity in clear air. When the target alcohol gas is present, the sensor's conductivity increases in accordance with the increase in gas concentration. The MQ-3 sensor has a high sensitivity to alcohol and is resistant to fuel, smoke, and mist contamination. Based on the amount of alcohol in the system, this sensor produces an analog resistive output.
Features
  • Sensor Type - Semiconductor
  • Both digital and analog output.
  • It provides an analog output corresponding to the concentration of the gas in the air.
  • Sensitive to alcohol, ethanol
  • Fast response and recovery
  • Adjustable sensitivity
  • Signal output indicator.
  • The carbon monoxide detection with better sensitivity.
  • Has a long service life and reliable stability.
  • Sensors | Detecting Alcohol, Benzine | Portable alcohol detector
Specifications
Supply Voltage DC 5 V
Current Consumption 150mA
Detecting Concentration 0.05-10mg/L Alcohol
Dimensions 32 x 22 x 16 mm
