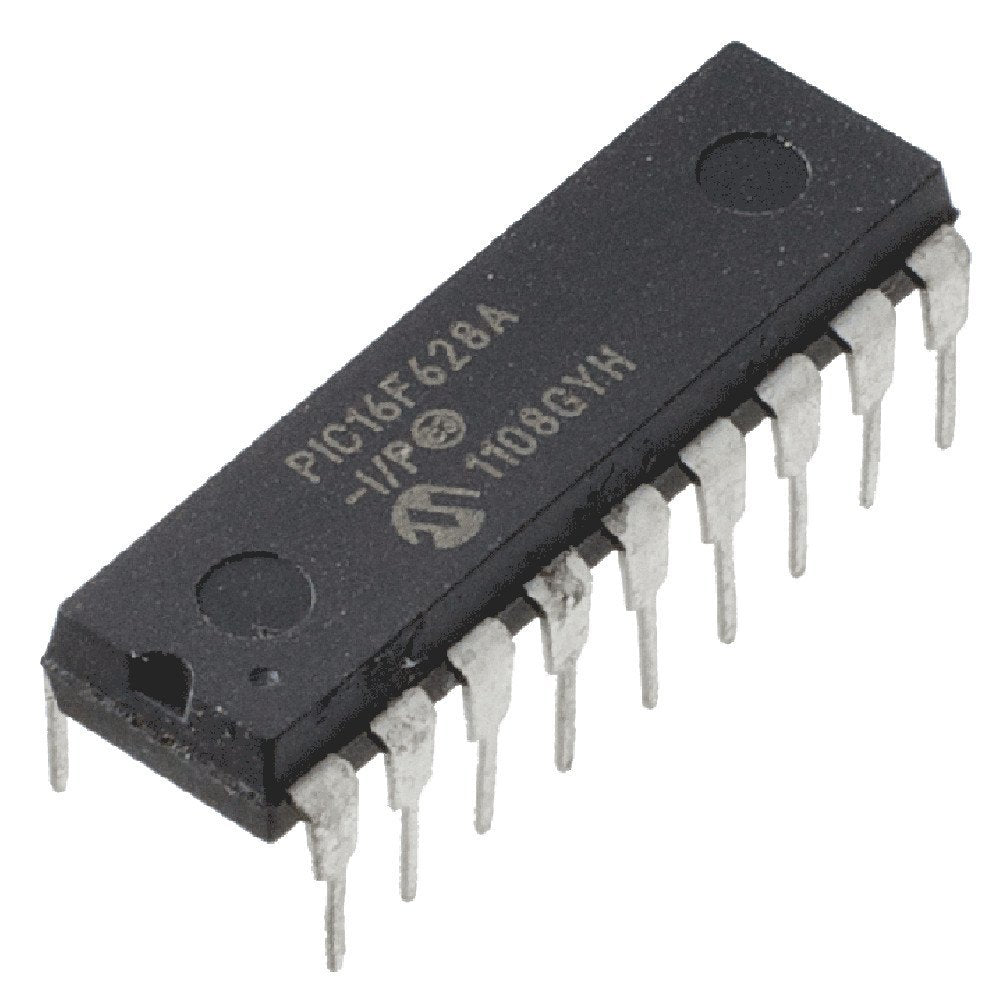

PIC16F628A 8 Bit PIC Microcontroller IC from Microchip Technology

PIC16F628A 8 Bit PIC Microcontroller IC from Microchip Technology

Regular price Rs. 112.00
Regular price Sale price Rs. 112.00

The PIC16F628 are 18-Pin FLASH-based members of the versatile PIC16CXX family of low-cost, high-performance, CMOS, fully-static, 8-bit microcontrollers. All PIC microcontrollers employ an advanced RISC  architecture. The  PIC16F628 have enhanced core features, an eight-level deep stack, and multiple internal and external...


SKU: PP0160
Vendor: electronifyindia

Availability: In stock


delivery-truck Estimated Delivery Date : 5 - 9 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Guaranteed safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa

View full details

Description

The PIC16F628 are 18-Pin FLASH-based members of the versatile PIC16CXX family of low-cost, high-performance, CMOS, fully-static, 8-bit microcontrollers. All PIC microcontrollers employ an advanced RISC  architecture. The  PIC16F628 have enhanced core features, an eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit  wide data. The two-stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A  total of 35  instructions  (reduced instruction set) are available. Additionally, a large register set gives some of the architectural innovations used to achieve a very high performance.

Features

  • Power-on Reset (POR)
  • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
  • Brown-out Detect (BOD)
  • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
  • Multiplexed MCLR-pin
  • Programmable weak pull-ups on PORTB
  • Programmable code protection
  • Low voltage programming
  • Power saving SLEEP mode
  • Selectable oscillator options
Specification

CPU

Mid-Range 8-bit

Number of Pins

18

Operating Voltage (V)

2 - 5.5 V

Number of I/O pins

16

ADC Module

Nil

Timer Module

3

DAC Module

Nil

Communication Peripherals

UART(1)

External Oscillator

Yes

Internal Oscillator

4 MHz

Program Memory (KB)

3.5 KB

CPU Speed (MIPS)

5

Max Frequency of operation

20MHz

Package

18-pin DIP

Dimensions 23mm x 8.3mm x 3.3mm
