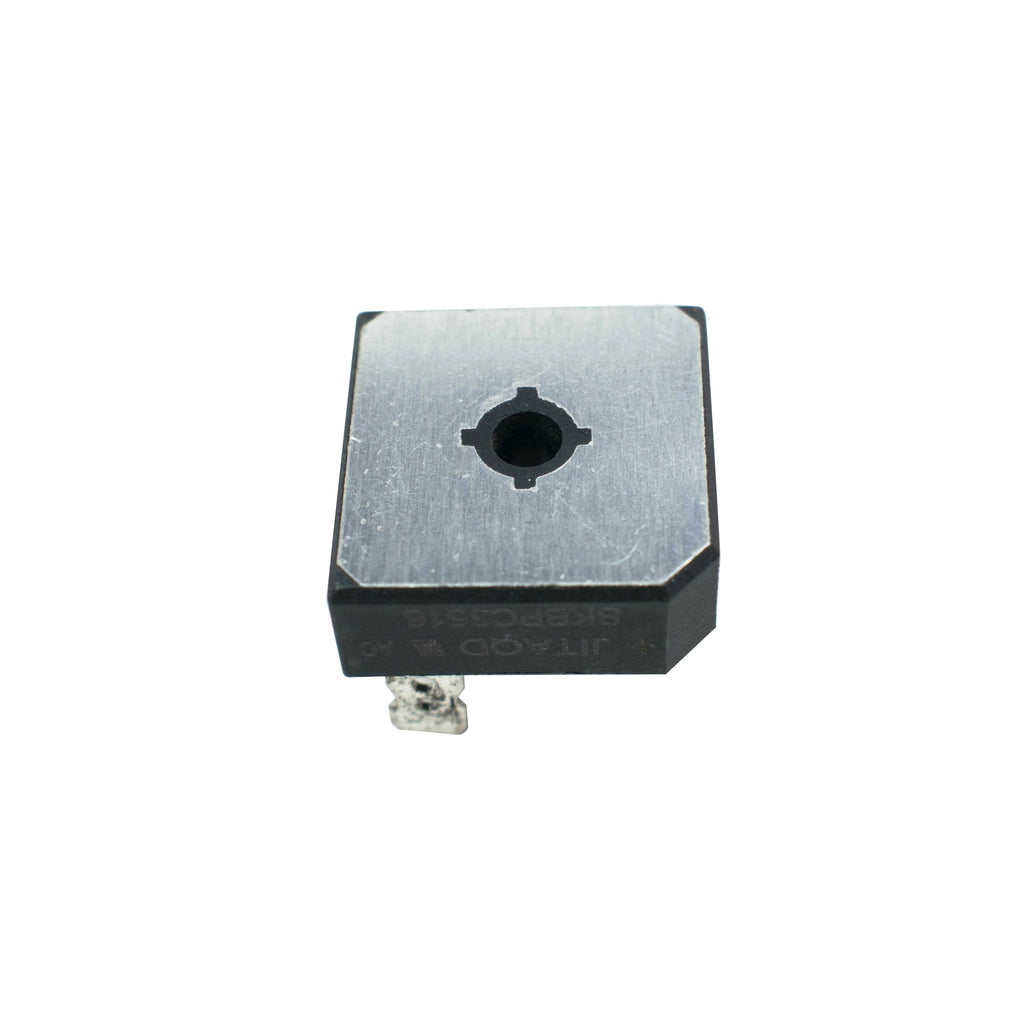

SKBPC3516 1600V 35A Three Phase Bridge Rectifier

SKBPC3516 1600V 35A Three Phase Bridge Rectifier

Rs. 198.00
Rs. 0.00 Rs. 198.00

A Three Phase Bridge rectifier diode is the SKBPC3516. Since this IC can tolerate an AC rms voltage of up to 1120V, it can be employed in a wide variety of applications. This IC can...

SKU: CC409
Vendor: electronifyindia
Type: Bridge Rectifier

Availability: Low stock

delivery-truck Estimated Delivery Date : 5 - 9 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Guaranteed safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa
View full details

Description

A Three Phase Bridge rectifier diode is the SKBPC3516. Since this IC can tolerate an AC rms voltage of up to 1120V, it can be employed in a wide variety of applications. This IC can tolerate a maximum DC current of 35A. This IC features a low forward voltage loss of 1.2V and a reverse breakdown value of 1600V. It features a high surge current capacity of 400A and great efficiency. This could be an excellent option if you're seeking for a small IC for rectification applications

Features

  • Glass passivated chip
  • High surge forward current capability
  • General purpose 3 phase Bridge rectifier applications
Specification
Model SKBPC3516
Type Bridge rectifier diode
Working Peak Reverse Voltage 1600 V
RMS Reverse Voltage V(RMS) 1120 V
Average Forward Rectified Output Current 35A
Peak Reverse Current at 25°C 10µA
Operating and Storage Temperature Range -40°C TO 150°C
