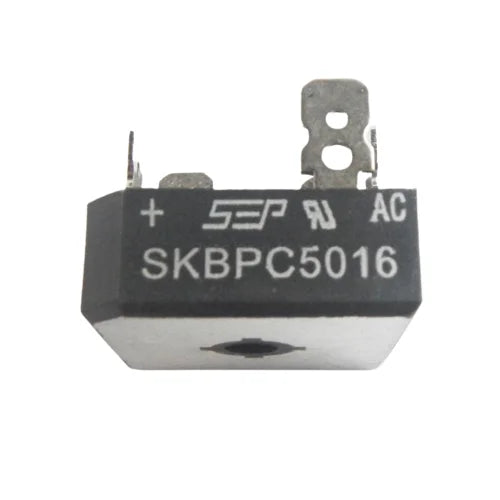

SKBPC5016 1600V, 50A Three Phase Bridge Rectifier

SKBPC5016 1600V, 50A Three Phase Bridge Rectifier

Rs. 224.00
Rs. 0.00 Rs. 224.00

The SKBPC5016 is a Three phase Bridge Rectifier Diode. The maximum AC rms  voltage that this IC can withstand is around  1120V hence can be used for a broad range of applications. The maximum DC...

SKU: CC406
Vendor: electronifyindia
Type: Bridge Rectifier

Availability: Low stock

delivery-truck Estimated Delivery Date : 5 - 9 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Guaranteed safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa
View full details

Description

The SKBPC5016 is a Three phase Bridge Rectifier Diode. The maximum AC rms  voltage that this IC can withstand is around  1120V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 50A. This IC has a reverse breakdown voltage of 1600V and a low forward voltage drop of 1.2V. It has high efficiency and a high surge current capability of 500A. If you are looking for a compact IC for rectification application this can be a good choice. This bridge rectifier are typically used in large UPS systems, electroplating, electro-refining and anodising plants, large DC motor controllers.

Features

  • Glass passivated chip
  • High surge forward current capability
  • General purpose 3 phase Bridge rectifier applications
Specification
Model SKBPC5016
Type Bridge Rectifier Diode
Working Peak Reverse Voltage 1600 V
RMS Reverse Voltage VR(RMS) 1120 V
Maximum DC Blocking Voltage 1600V
Average Forward Rectified Output Current- 50A
Peak Reverse Current at 25°C  10µA
Operating and Storage Temperature Range -40°C TO 150°C
