The LDO regulator is a DC linear voltage regulator capable of regulating the output voltage even when the supply voltage is extremely close to the output value.

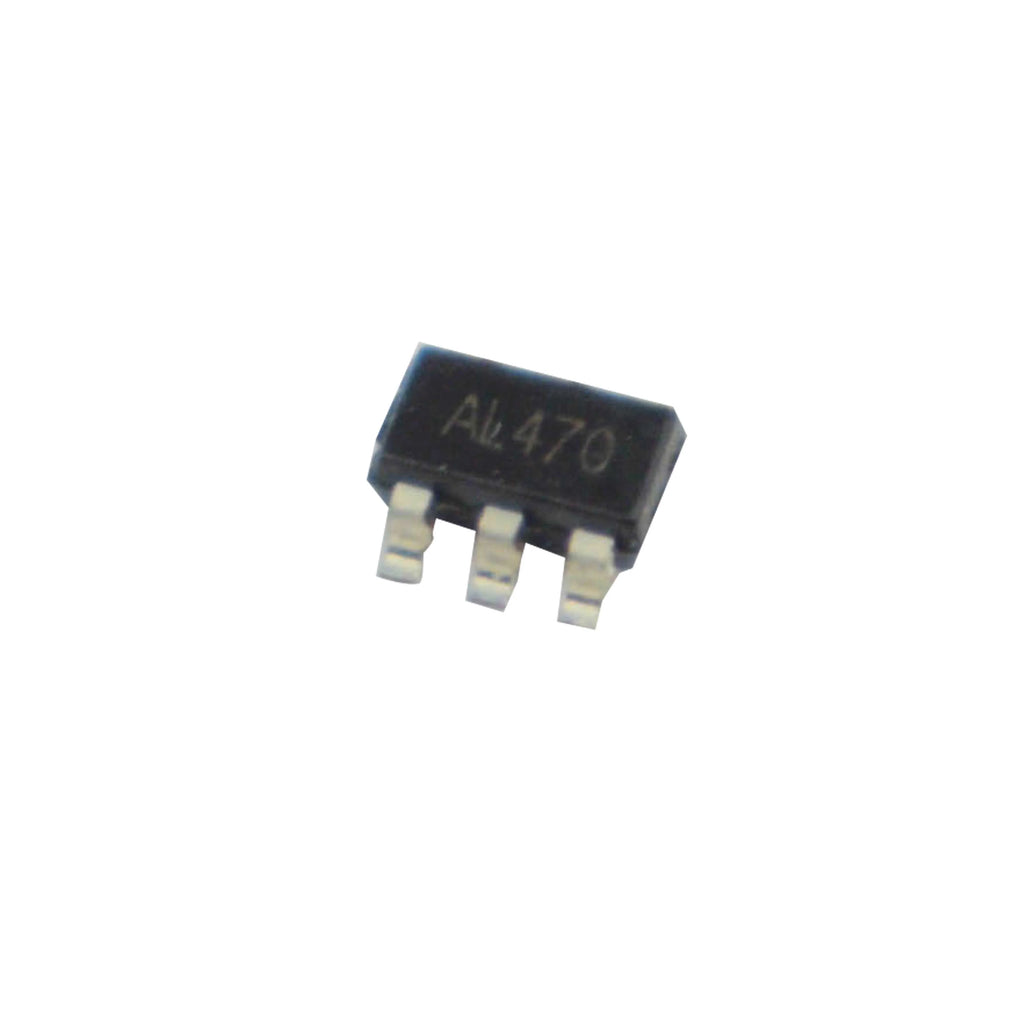

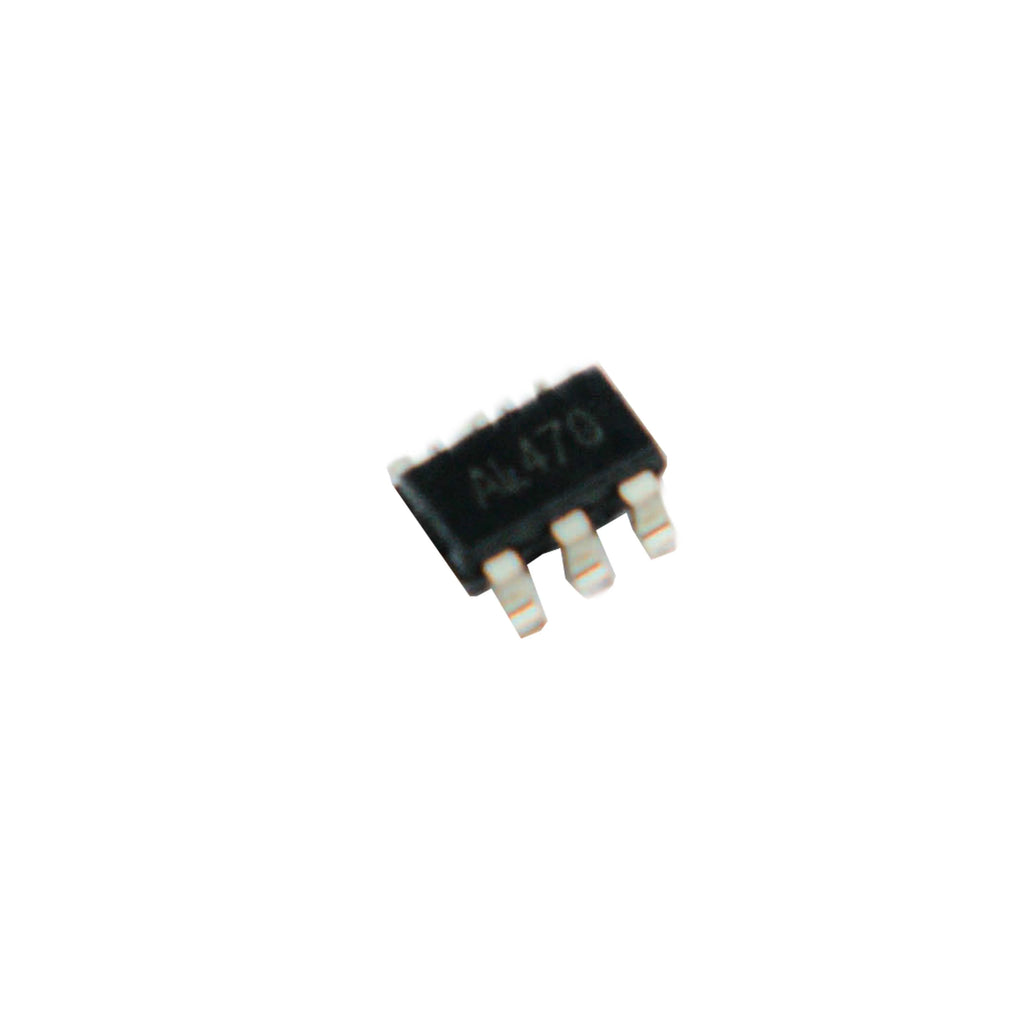

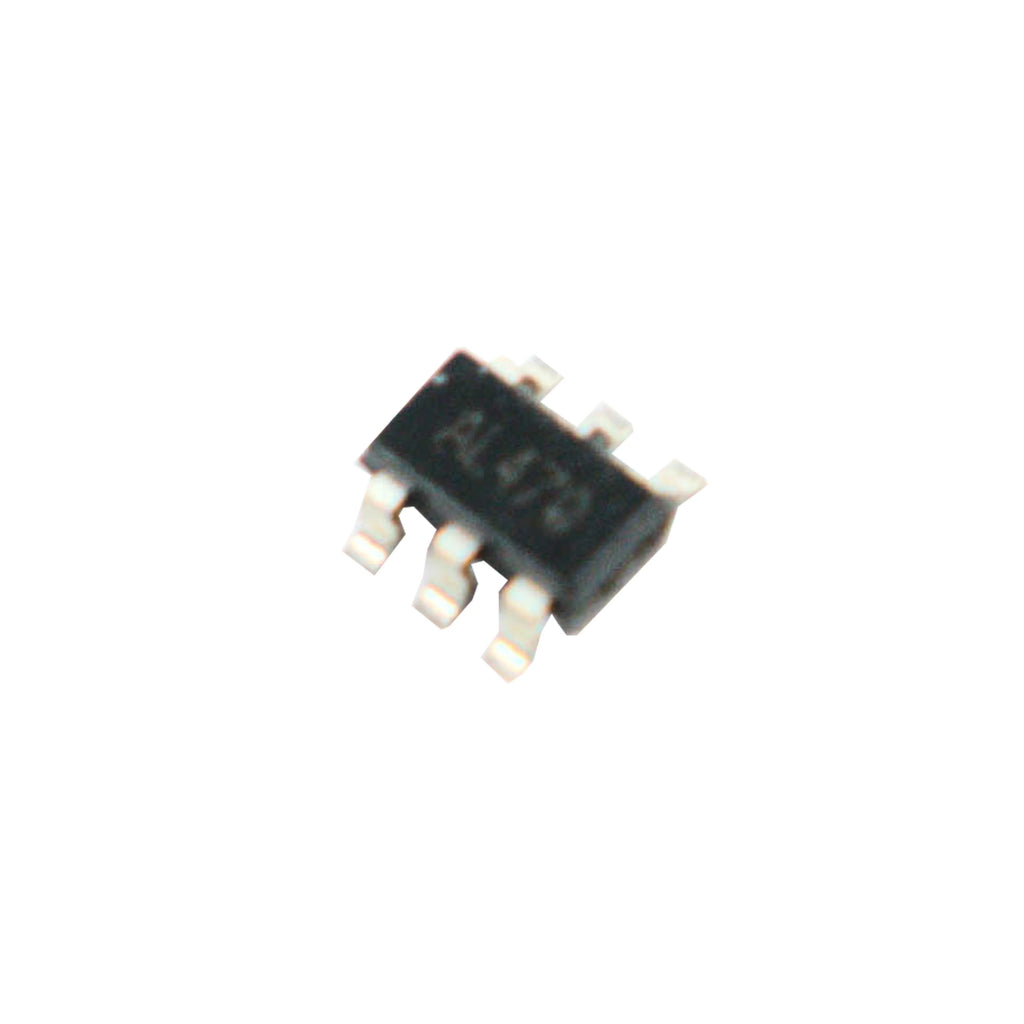

The current flowing from the GND terminal is known as quiescent current. The TLV70433 is a low-dropout regulator which is an ultralow quiescent current device designed for extremely power-sensitive
Features
- Wide Input Voltage Range: 2.5 V to 24 V
- Ground Pin Current: 3.4 μA
- Stable With a Low-ESR, 1-µF Typical Output Capacitor
Applications
the end of the data sheet.Specification
|
Model |
TLV70433 |
|
Brand |
Texas Instruments |
|
Output Current |
150 mA |
|
Output Voltage |
3.3 V |
|
Quiescent Current |
3.2 uA |
|
Operating Voltage |
1.2 €š¬‚¬œ 5 V |
|
Operating Temperature |
-40 €š¬‚¬œ 125 °C |
|
Pd - Power Dissipation |
470 mW |
|
Operating Supply Current |
3.4 uA |
|
Package |
SMD |
